Noble UL30 - Kick Panel Weldment

24

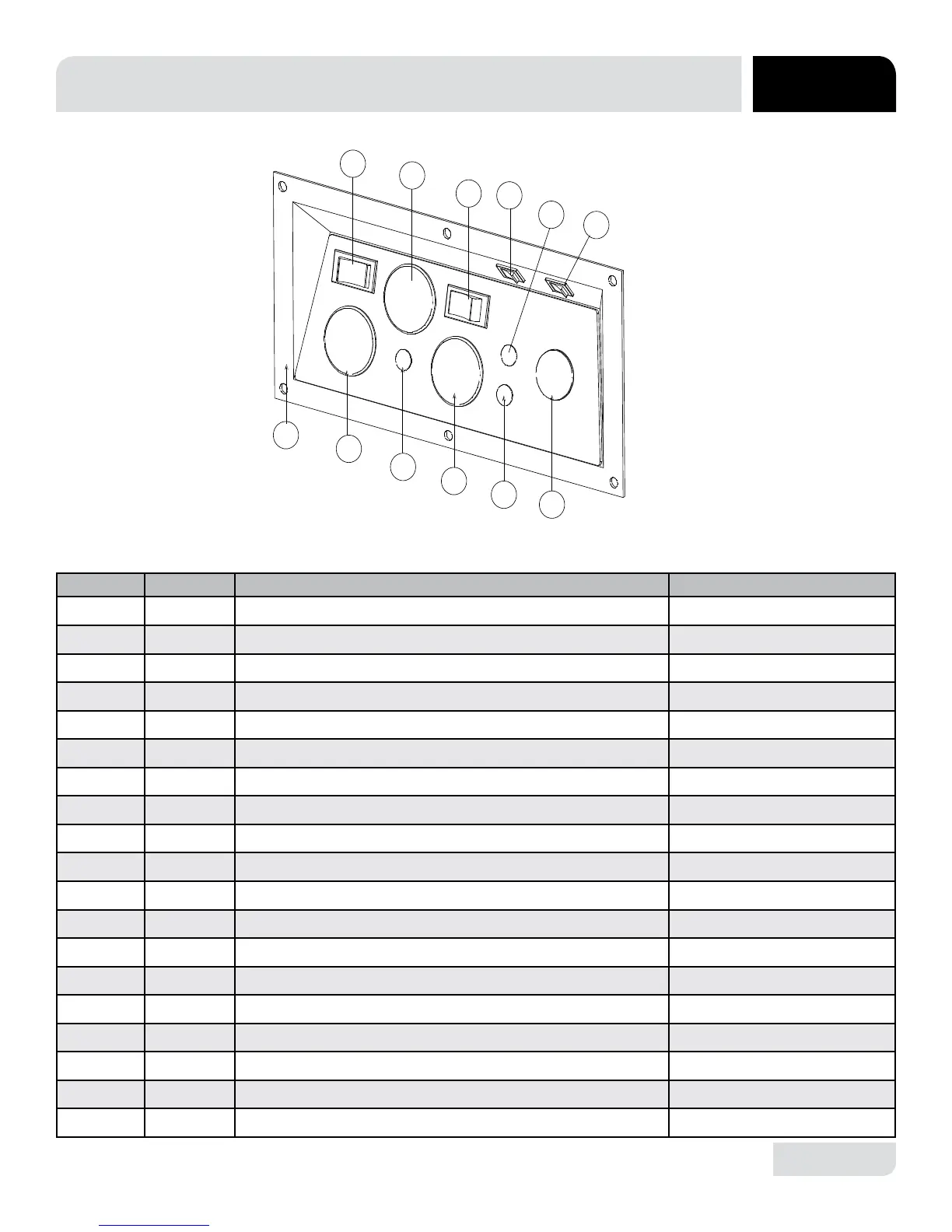

KICK PANEL WELDMENT UH30
PARTS
12
11
8
9
7
10
1
2
3
4
5
6
ITEM QTY DESCRIPTION PART NUMBER
1 1 Control Panel 09330-003-31-66
1 Decal, Control Panel 09905-003-31-65
6 Locknut, 1/4” -20 S/S Hex w/ Nylon Insert 05310-374-01-00
2 1 Thermometer, 48” Rinse 06685-111-68-48
3 1 Light, Amber 05945-111-44-44
4 1 Thermometer, 96” Wash 06685-111-68-49
5 1 Light, Red 05945-111-44-45
6 1 Window Plug 05975-003-31-72
7 1 Switch, Rinse Aid 05930-011-49-54
8 1 Switch, Detergent 05930-011-49-54
9 1 Light, Green 05945-111-44-43
10 1 Switch, On-Off 05930-301-49-00
11 1 Gauge, 0-100 PSI w/ Green Zone 06680-011-86-42
1 Bell Adapter, 1/4 NPT X 1/8 FNPT 04730-003-33-02
1 Hose, Pressure Gauge 04730-003-33-02
12 1 Switch, Auto-Manual 05930-011-49-55
1 Kick Plate Weldment (not shown) 05700-003-32-91
1 Complete Control Panel Assembly 05700-003-31-64
1 Wire Harness 05999-003-34-61
