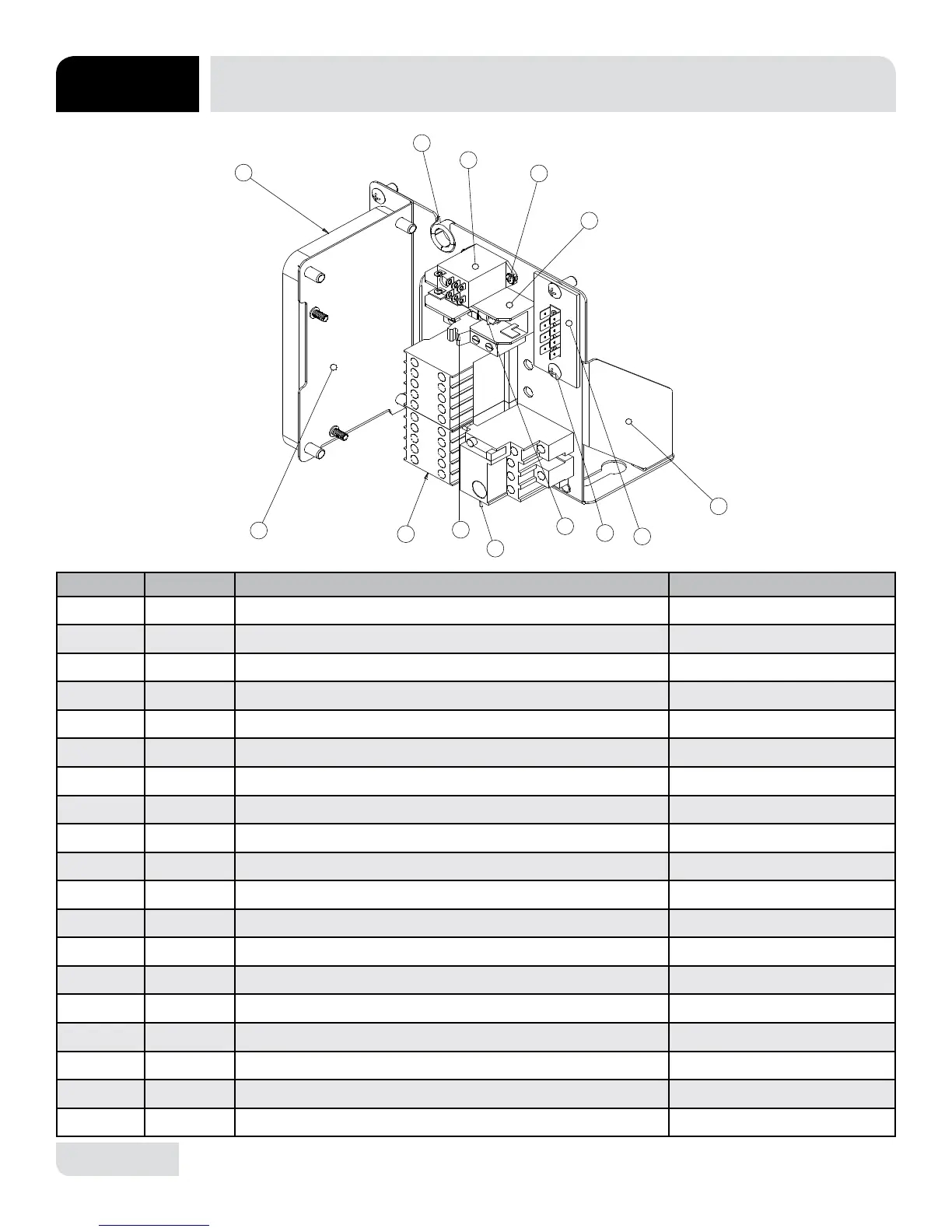

NOBLE UH30 480V CONTROL PANEL
PARTS
1
5
13
8
10
14
9
2
7
11
4
12
3
ITEM QTY DESCRIPTION PART NUMBER
1 1 Electrical Panel Weldment 05700-003-37-46
2 1 Timer, Bracket Assembly 05700-003-36-05
3 1 Timer, Universal 05945-003-33-09
1 Fused Universal Timer (Alternate Construction) 05945-003-75-23
1 Fuse 05920-003-75-24
1 9 Wire Harness 05999-003-75-81
1 10 Wire Harness 05999-003-87-88
4 1 Relay 05945-002-47-41
5 1 Terminal Board 05940-021-94-85
6 1 Track, Terminal Block 05700-003-37-49
7 1 Fuse Holder 05920-011-72-89
8 1 Fuse, 1/4 Amp 05920-002-75-95
9 2 Contactor 05945-111-60-07
10 1 Overload 05945-111-60-08
11 2 Screw, 6-32 X 3/8” w/ External T Washer 05305-002-25-91
12 1 Open/Closed Bushing, 7/8” 05975-003-35-21
13 6 Screw ,10-32 X 3/8” Long Phil Truss Head 05305-173-12-00
14 2 End Clamp 05950-111-60-30
15 1 Transformer ( not shown) 05950-011-50-70
