Hardware description

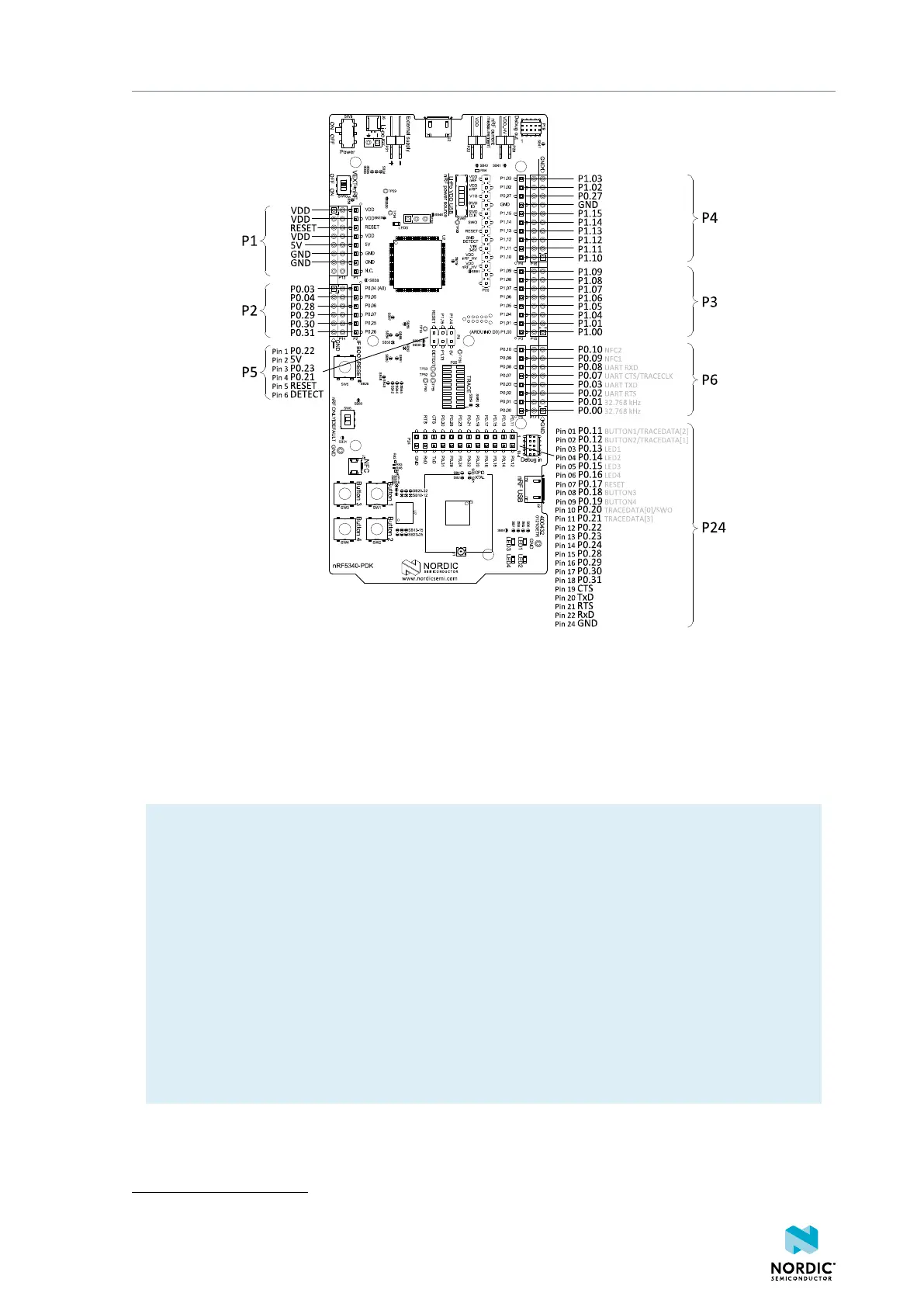

Figure 20: nRF5340 PDK board connectors
Some of the signals are also available on connectors P7, P8, P9, P10, P11, and P12, which are on the
bottom side of the board. By mounting pin lists on the connector footprints, the nRF5340 PDK board can
be used as a shield for Arduino motherboards
2
or other boards that follow the Arduino standard.
For easy access to GPIO, power, and ground, the signals can also be found on the through-hole connectors
P13P17.
Note:
Some pins have default settings:
P0.00 and P0.01 are used for the 32.768 kHz crystal and are not available on the connectors. For
more information, see section 32.768 kHz crystal on page 25.
P0.19, P0.20, P0.21, and P0.22 are used by the UART connected to the interface MCU. For more
information, see section Virtual COM port on page 9.
P0.02 and P0.03 are by default used by NFC1 and NFC2. For more information, see section NFC
antenna interface on page 28.
P0.08P0.09 and P0.23P0.24 are by default connected to the buttons and P0.28 - P0.31 are
connected to the LEDs. For more information, see section Buttons and LEDs on page 24.
P0.13P0.18 are by default connected to the external memory. For more information, see
section External memory on page 21.
When the nRF5340 PDK board is used as a shield together with an Arduino standard motherboard, the
Arduino signals are routed as shown in the figure below.
2
Only 3.3 V Arduino boards.
4406_489 v1.0
23
