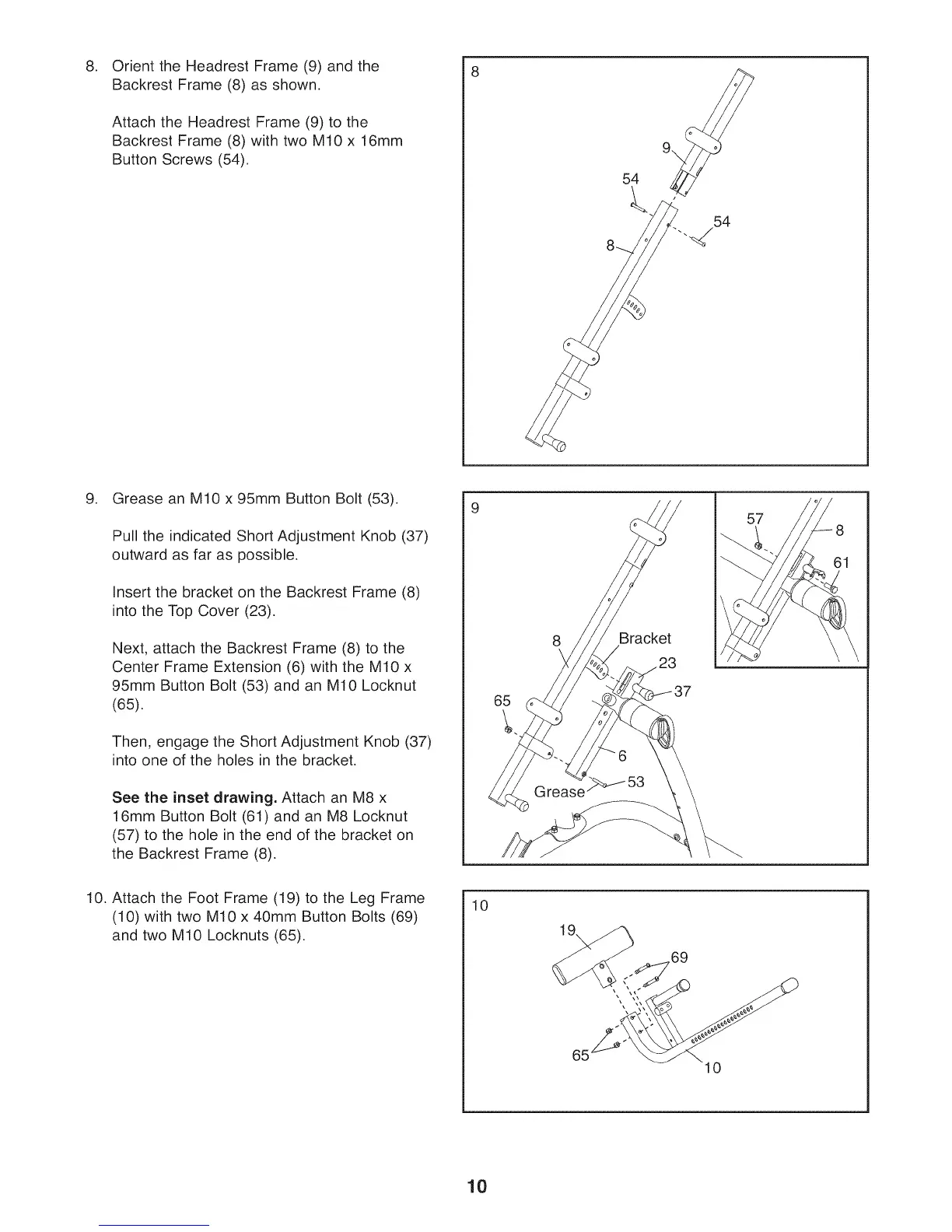

Orient the Headrest Frame (9) and the
Backrest Frame (8) as shown.
Attach the Headrest Frame (9) to the
Backrest Frame (8) with two M10 x 16mm
Button Screws (54).
8
9. Grease an M10 x 95mm Button Bolt (53).
Pull the indicated Short Adjustment Knob (37)
outward as far as possible.
Insert the bracket on the Backrest Frame (8)
into the Top Cover (23).
Next, attach the Backrest Frame (8) to the
Center Frame Extension (6) with the M10 x
95mm Button Bolt (53) and an M10 Locknut
(65).
Then, engage the Short Adjustment Knob (37)
into one of the holes in the bracket.
See the inset drawing. Attach an M8 x
16mm Button Bolt (61) and an M8 Locknut
(57) to the hole in the end of the bracket on
the Backrest Frame (8).
9
8
\
Bracket
57
8
10. Attach the Foot Frame (19) to the Leg Frame
(10) with two M10 x 40mm Button Bolts (69)
and two M10 Locknuts (65).
10
19\
6_
69
10
10
