NordicTrack Revitalize inversion system 2.0 831.14895.1 - Page 9

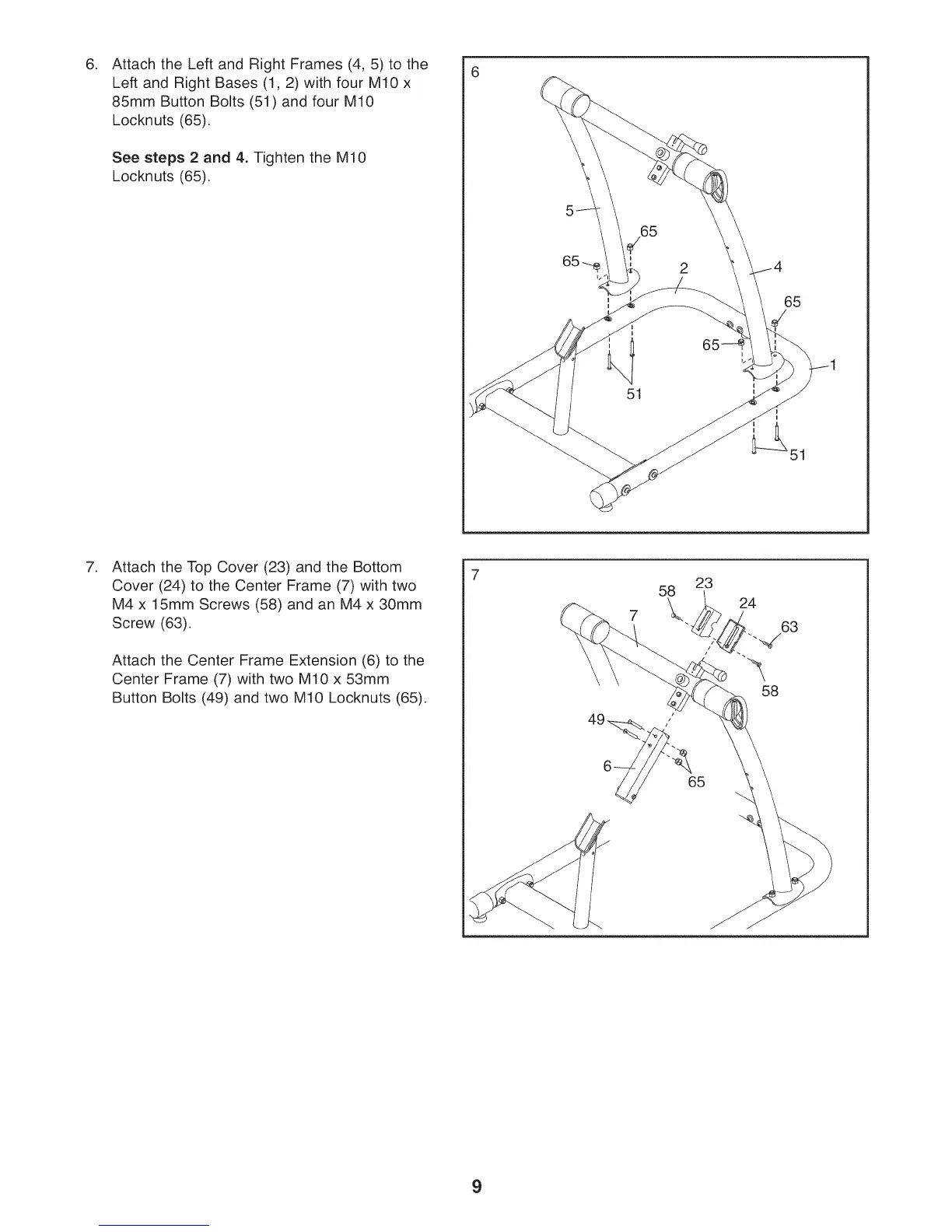

Attach the Left and Right Frames (4, 5) to the
Left and Right Bases (1, 2) with four M10 x
85mm Button Bolts (51) and four M10
Locknuts (65).
See steps 2 and 4. Tighten the M10
Locknuts (65).
51
4
65
.
Attach the Top Cover (23) and the Bottom
Cover (24) to the Center Frame (7) with two
M4 x 15mm Screws (58) and an M4 x 30mm
Screw (63).
Attach the Center Frame Extension (6) to the
Center Frame (7) with two M10 x 53mm
Button Bolts (49) and two M10 Locknuts (65).
7
23
24
/
65
63
58
