3 Removing the packing angle brackets
20

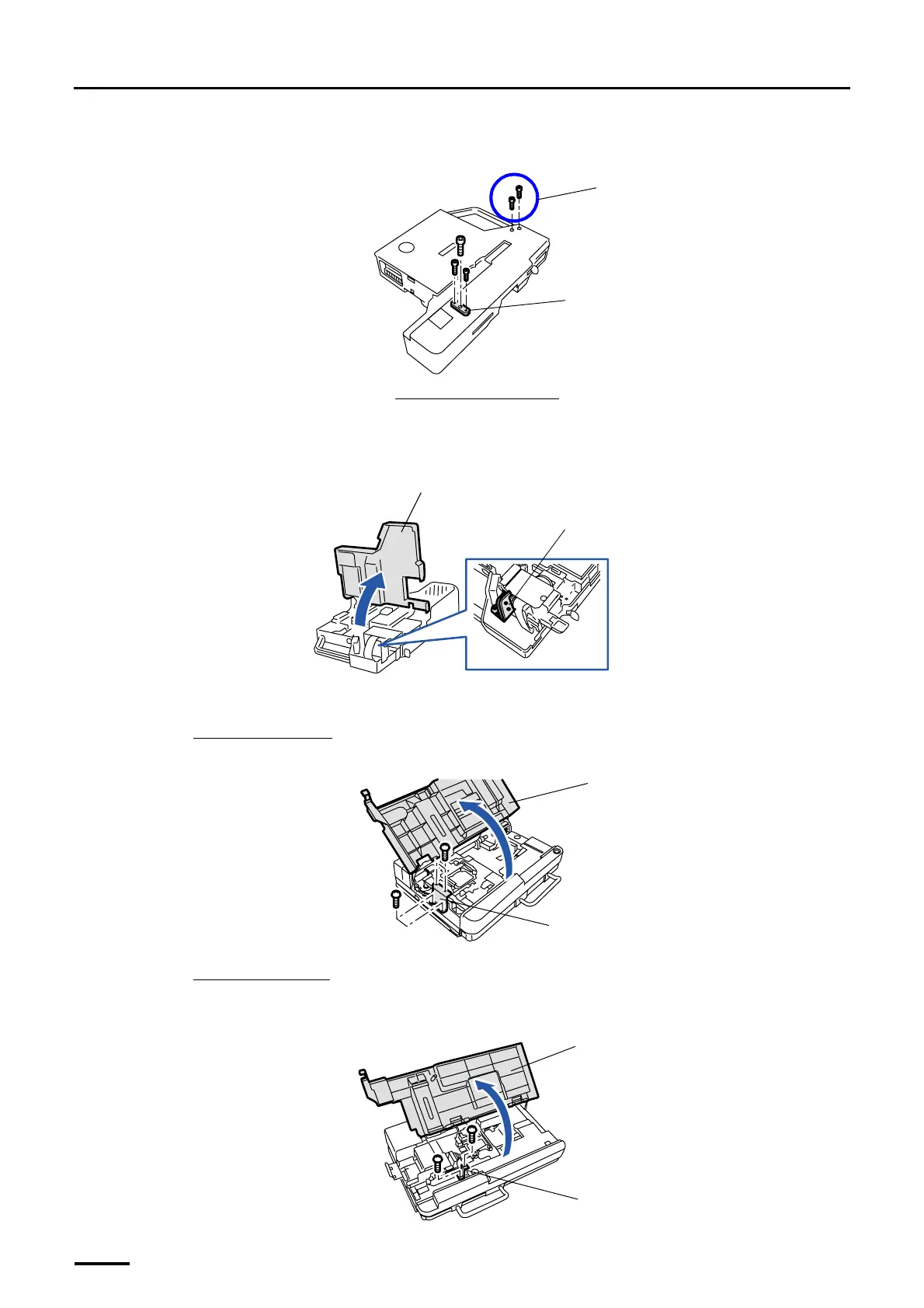

(1) Remove packing angle bracket 1 (three packing screws) and bracket 2 (two packing screws) from the
back of the 135/240 AFC-II.
(2) Turn up the 135/240 AFC-II.
(3) Open the top cover of the 135/240 AFC-II and remove packing angle brackets 2 and 3. (These brackets
are fixed with screws).
(4) Close the top cover.
For 135/240 MMC-II
(1) Open the 135/240 MMC-II top cover and remove the packing angle bracket. (two packing screws)
For 135/240 AMC-II
(1) Open the top cover of the 135/240 AMC-II and remove the packing angle bracket. (two packing
screws)
Packing angle bracket 1
Back side of the 135/240 AFC-II
Packing screws for packing angle
bracket 2
G068995
Packing angle brackets 2 and 3
Top cover
G068994
Packing angle bracket
Top cover
G070267
Packing angle bracket
Top cover
G070268
