Noritsu QSS-3201 - Paper Processor Section [SM]

4 Installing the component parts and units
35
4.2.2 Paper processor section [SM]

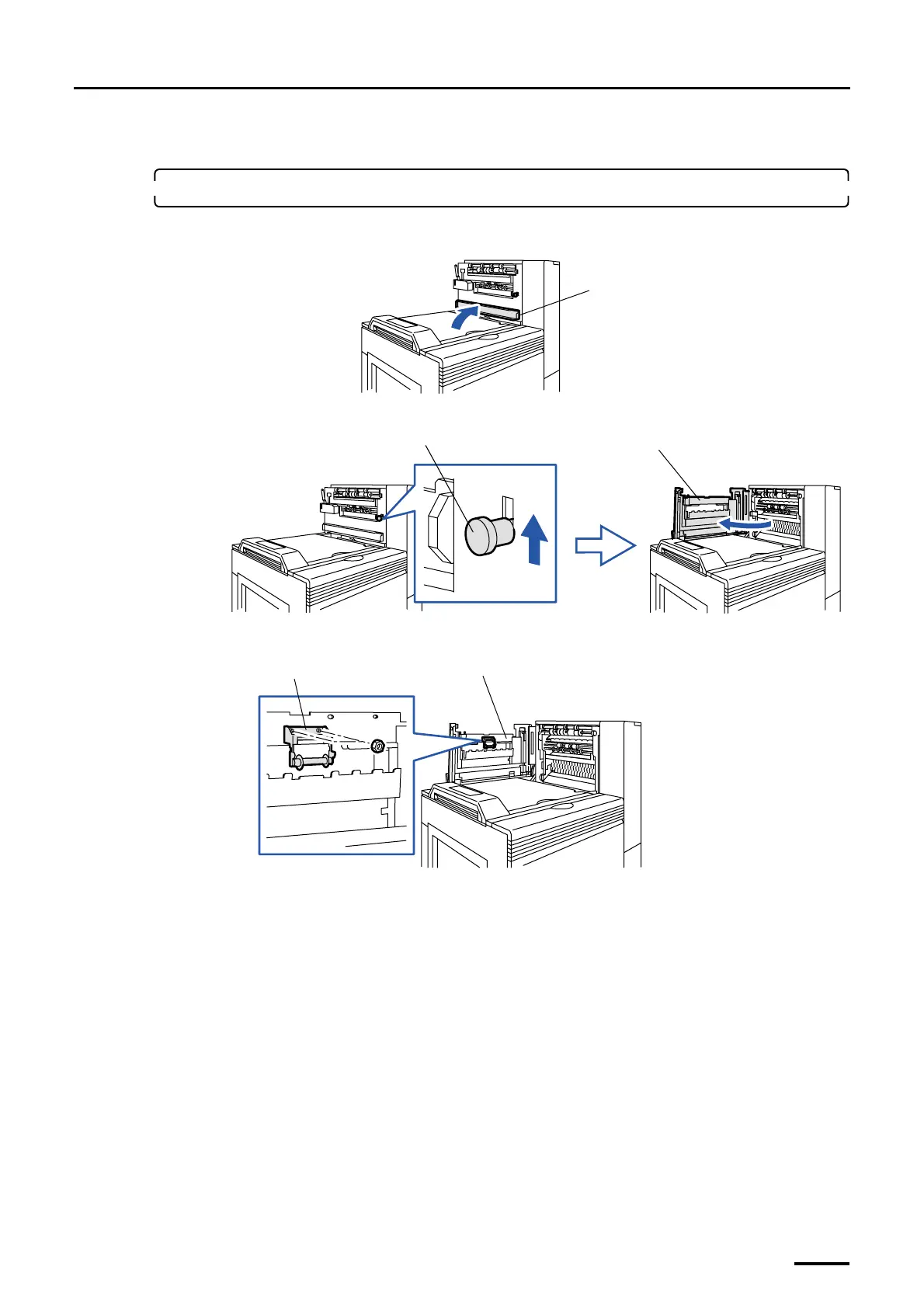

1. Attach the roller to the dryer door.
(1) Open the squeegee unit top cover.
(2) Raise the lever and open the dryer door.
(3) Attach the roller. (two nuts)
(4) Close the dryer door.
Squeegee unit top cover
G070259
Lever
Dryer door
G068887
Roller
Dryer door
G068889
