5 Installing the machine and adjusting the level
54
3. Lower the jack bolts and fix the paper processor section at the location for installation.

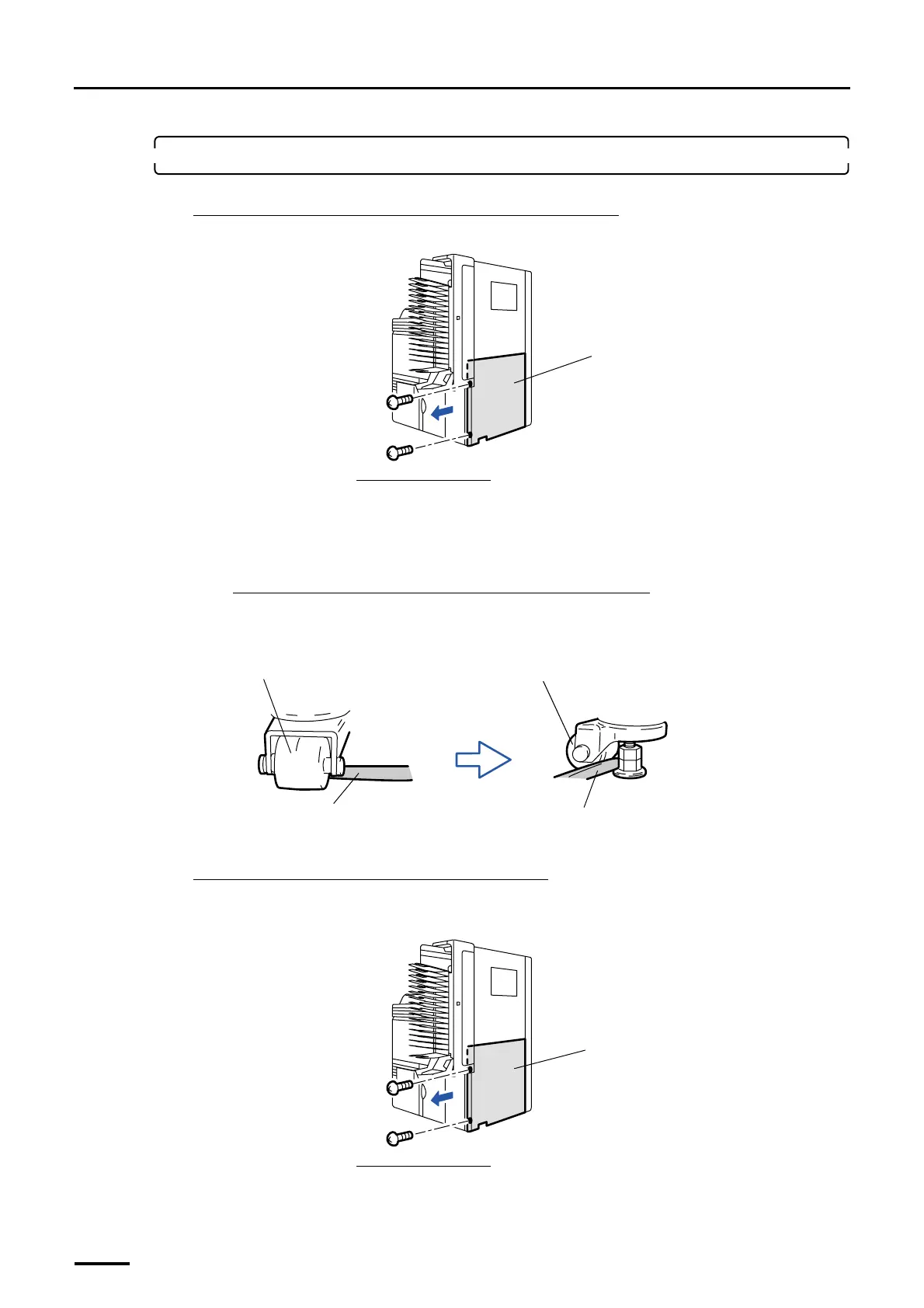

When you install the machine at a place except for the corner:
(1) Remove the processor rear cover. (two screws)
(2) Lower the jack bolts by turning the adjusting nuts manually.
When you can no longer turn the nuts by hand, use the utility pliers to turn them until the castors come off
the floor.
If the jack bolts cannot be lowered due to the castor position:
The direction of a castor placed on the hard floor such as concrete floor can be changed with your hands.
To change the direction of a castor placed on the soft floor (including the thick carpet), insert a rod such as
the pliers grip as shown in the illustration and turn it.
When you install the machine in the corner of room:
If there is not enough space at the back or right side of the paper processor section, follow the procedure below.
(1) Remove the processor rear cover. (two screws)
Processor rear cover
Viewed from the right side
G070271
Castor
Utility pliers grip
Utility pliers grip
Castor
G068859
Processor rear cover
Viewed from the right side
G070271
