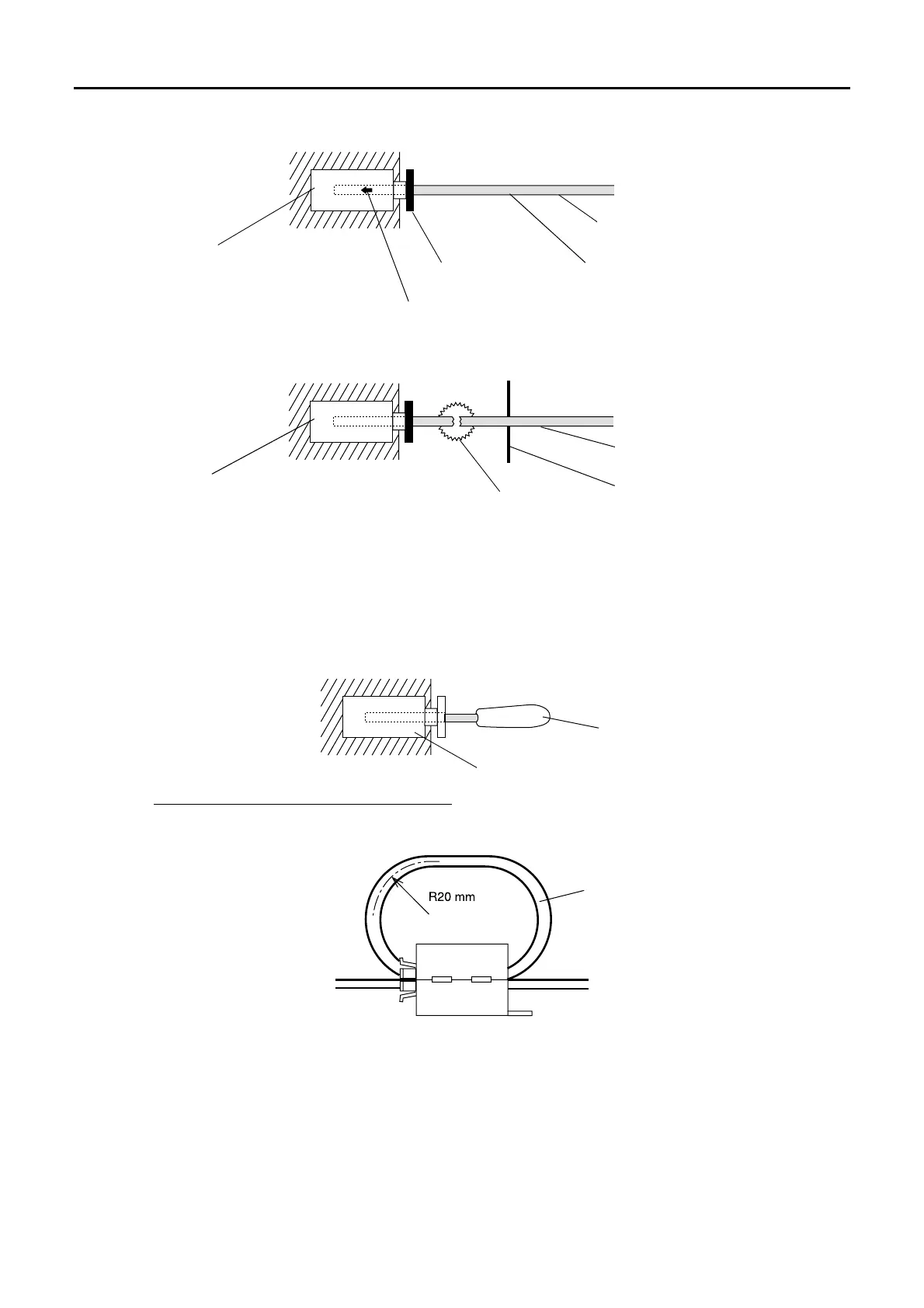

• If the optical fiber cable is damaged, it cannot be reused even after the damaged part has been cut off. A communication
error occurs.
• Do not place an excessive load on the optical fiber cable or let a hard or heavy object fall on it.
• Do not damage the sheath of the optical fiber cable. A dent or flaw on the sheath, however small, means the optical fiber
cable cannot be used.
• Never touch the end face of the optical fiber cable with bare hands. Communication will not be possible if oil or dust
adheres to the cable end, or if the cable end is scratched.
• The connector guard unit must be inserted into an unused connector for the optical fiber cable. This prevents dust from
entering inside the connector. And also prevents malfunction due to outside light.
Precautions when handling the LVDS cable
• Do not bend the LVDS cable by radius 20 mm or less. The cable may break. Wire the cable with a bending radius of at
least R50 mm. When inserting, removing, attaching the ferrite core, or wiring the cable, do not use force.
No marking on the cable
Optical fiber cablePart A (Black)
The arrow on the connector indicates the direction to the PCB.
Connector on the PCB
G051009
Optical fiber cable
Do not reuse this cable even if the
damaged part has been cut off.
Damaged part
Connector on the PCB
G051010
Connector guard unit
Unused connector
G050366
LVDS cable
G063561
