LED and Keypad-Switch Functions
48 PN 15842:K 7/23/2002

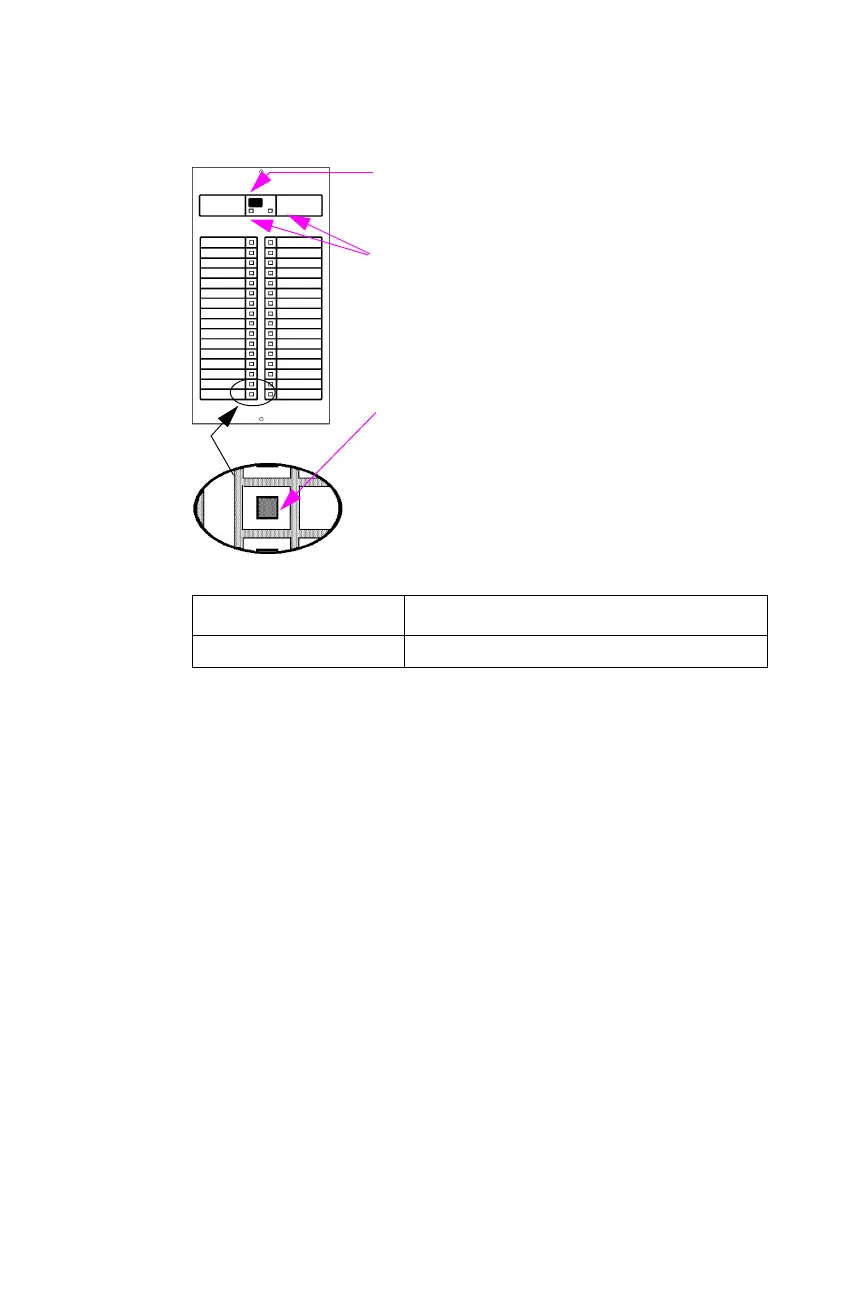

5.2.4 AEM-32A
anunc32.tif
Lamp Test Switch. When pressed, it lights all the
LEDs on the AEM-16AT Series expander (except the
On-line LED) and sounds the piezo for as long as the
switch is held down.
Inactive LEDs. These two LEDs are not functional on
expander modules.
Point-Active LED. Flashes to indicate an active point;
after being acknowledged it glows until reset. LED
color varies by model number; see chart below.
Note: Loss of communication with the control panel is monitored & reported by
the ACM-32A. If connection between ACM-32A & AEM-32A fails, the ACM-32A
will show a trouble condition and the main control panel will show annunciator-
point trouble.
Model Number AEM-32A AEM-32AG AEM-32AY
Color of Point-active LED Red Green Yellow
