NFS-3030 Systems
PN 15842:K 7/23/2002 87
APPENDIX V NFS-3030 Systems
V.1 Capabilities
When installed with an NFS-3030, annunciators can be programmed to
annunciate the status of addressable devices, general zones, logic zones, and
several system control functions:
Devices
• Intelligent Detectors
• Monitor and Control Modules
• Addressable Manual Pull Stations
• Wireless Devices
• Panel Circuit Modules
Note: Refer to the appropriate FACP manuals for more information.
Zones 0-999
Logic Zones 1-1000
System Controls
• Acknowledge
• Signal Silence
• System Reset
•Lamp Test
•Drill
• Disable
• Monitor
• Control
• Telephone
XP Series Transponder System
• Power and Audio Supply Supervision
• XP Series Form-C Alarm and Trouble Relays
• Control, Monitor, and Relay Module Circuits

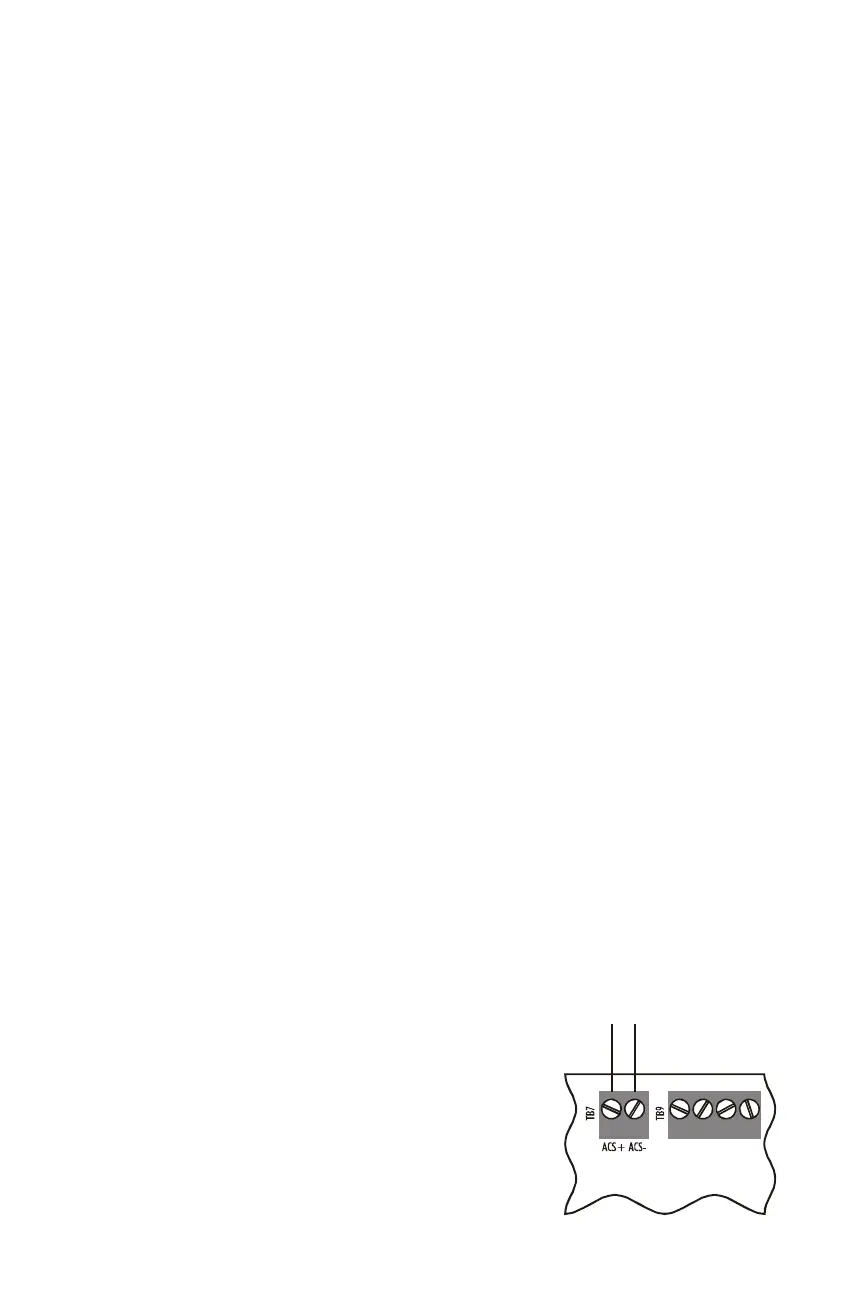

V.2 Connecting the EIA-485 Circuit
One ACS circuit may
be connected to the
NFS-3030 as shown in the
accompanying illustration. The
NFS-3030 must be at the end of the
EIA-485 circuit.
See Section 3.3 “EIA-485 Wiring
Specifications” for details and notes
about EIA-485 requirements.
+
-
3030-ACS-TB7.cdr
TB7 on NFS-3030
To Next Page
