The Main Menu Main Menu and Event Counts Screen
Soft Keys
START TEST: Press to begin Walk Test using the chosen parameters. Once Walk Test has begun,
this soft key becomes ABORT, and can be pressed at any time to exit Walk Test.
NEXT TEST: This key appears for Advanced Walk Tests when the panel parameter is chosen at the
Walk Test Menu Screen. Refer to
Figure 2.11 for the location of this key. Press it to progress from
one activation to the next, latching the new point and releasing the latch on the previous point.
Point Walk Test Activation
This screen appears when DEVICES is chosen as a parameter at the Walk Test Menu.

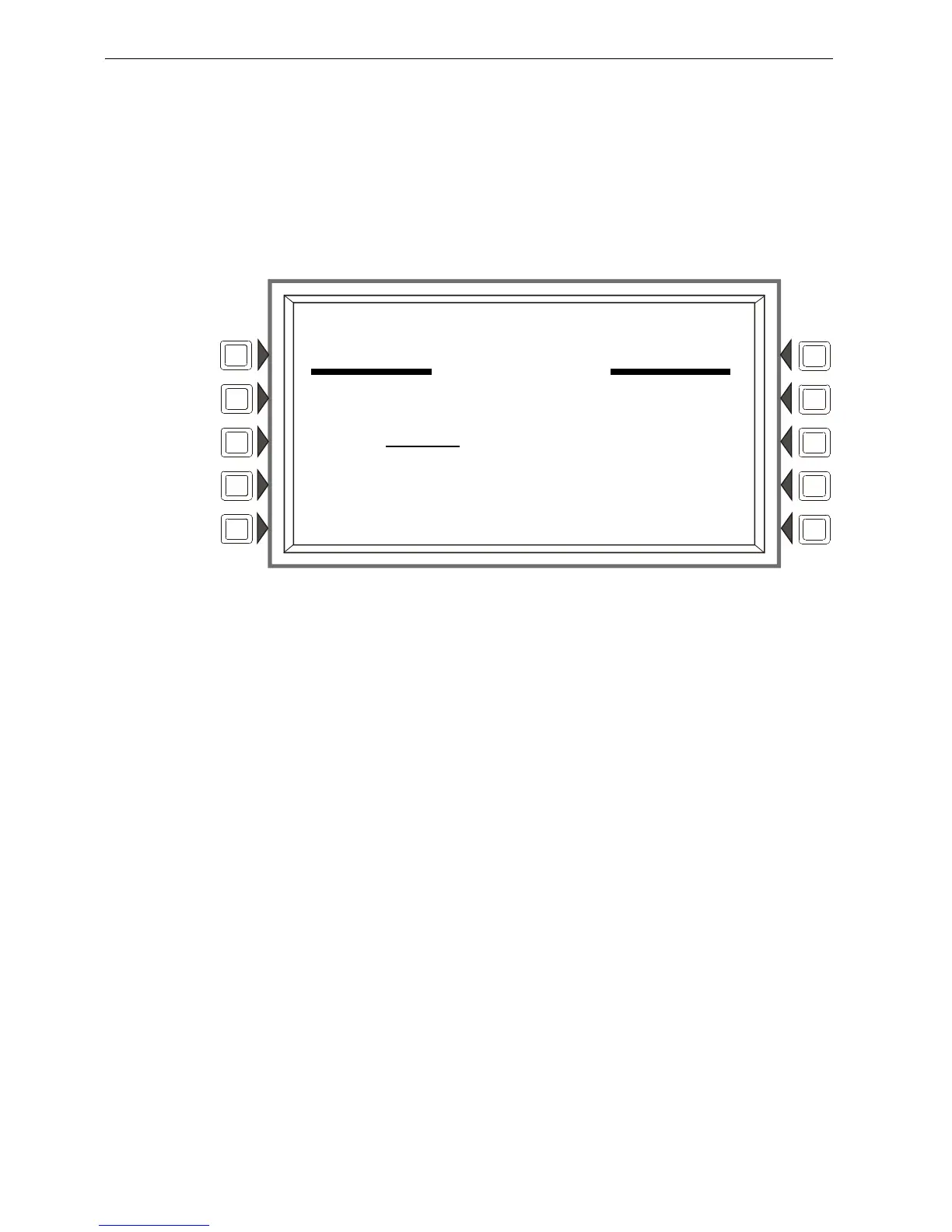

Figure 2.7 Walk Test Devices Programming Screen
This screen appears when DEVICES is chosen as a parameter at the Walk Test Menu. The chosen
settings are displayed (BASIC, AUDIBLE in
Figure 2.7).
Soft Keys
DEVICE: Press this key to type the desired detector or module address into the underlined field.
NEXT POINT: Press this key to bring up the next installed address for an addressable detector into
the DEVICE field.
PREVIOUS POINT: Press this key to bring up the previous installed address of an addressable
detector into the DEVICE field.
ACCEPT: Press this key to begin Walk Test, and to proceed to the Devices Test Selection screen
(Figure
2.8).
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A TUE JAN 25, 2011
WALK TEST SELECT
SETTINGS: BASIC,AUDIBLE,DEVICES
DEVICE:L01D005
NEXT POINT ACCEPT
PREVIOUS POINT BACK
