Notifier AFP1010 User Manual

1-98
Installation 15088:J 10/22/99
NOTES
• This arrangement can be employed
for Central Station and Proprietary
(NFPA 72) service.
• This application is not suitable for
separate transmission of sprinkler
supervisory conditions.
• For connection of alarm initiating
devices, refer to Figures 4.6-2
through 4.6-6.
• During system programming, NFPA
menu option "72D" must be chosen.

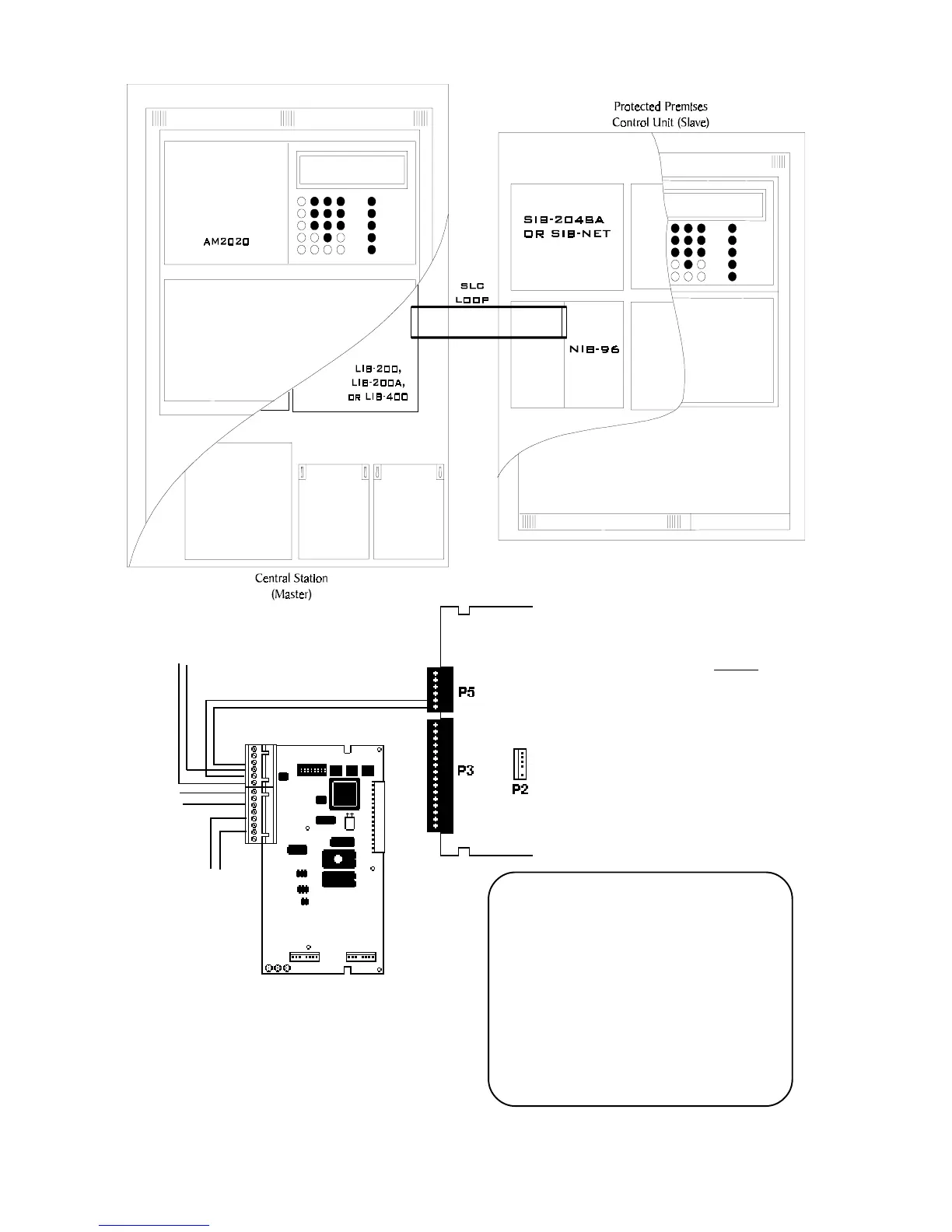

Figure 6.4-1 Proprietary Fire Alarm Systems
Terminal Assignments
SLC Loop IN:
From:Master LIB-200, LIB-200A, or LIB-400
P2 terminals 1(+) and 3(-)
To: NIB-96 P5 terminals 1(+) and 3(-)
SLC Loop OUT:
From:NIB-96 P5 terminals 5(+) and 7(-)
To: Next device on SLC Loop
EIA-485 Loop IN
From:SIB P5 terminals 5(+) and 6(-)
To: NIB-96 P4 terminals 5(+) and 3(-)
EIA-485 Loop OUT
From:NIB-96 P4 terminals 6(+) and 4(-)
To: Next device on EIA-485 Loop.
P2 P3
NIB-96
SLC Loop
OUT
Term. 5 (+)
Term. 6 (-)
SLC Loop IN
(From Master
FACP LIB at
Central Station)
EIA-485 Loop IN
SIB-2048A/SIB-NET in
Protected Premises
Control Unit (slave)
No connection on P2 or
P3 if ICA-4L chassis is
used.
EIA-485 Loop OUT
To additional EIA-485 devices, if installed,
or 120 ohm at the end of the circuit.
