The following system requirements are illustrated in Figure 1.3-15. See Table 1.1-1 in the introduction to this
section for monitor and control module options.
• Multiple AM2020/AFP1010 PPUs
• One AM2020/AFP1010 Central Station Unit
• Multiple Supervisory Security Circuits Reporting to Central Station as Single Area
• Multiple Protected Premises with System Arm/Disarm Capability and Central Station Ringback Signal
• The minimum security equipment required is as follows:
— Each AM2020/AFP1010 PPU must be equipped with a SIB-2048A or SIB-NET Interface
— NIB-96 Network Interface
— STS-1 Security Tamper Switch
— MM Monitor Modules for Protected Area
— ACM-16AT or ACM-32A Remote Annunciator for Each Entry and Exit Door
— RKS-S Remote Keyswitch
— Security Devices
— One Group Interface

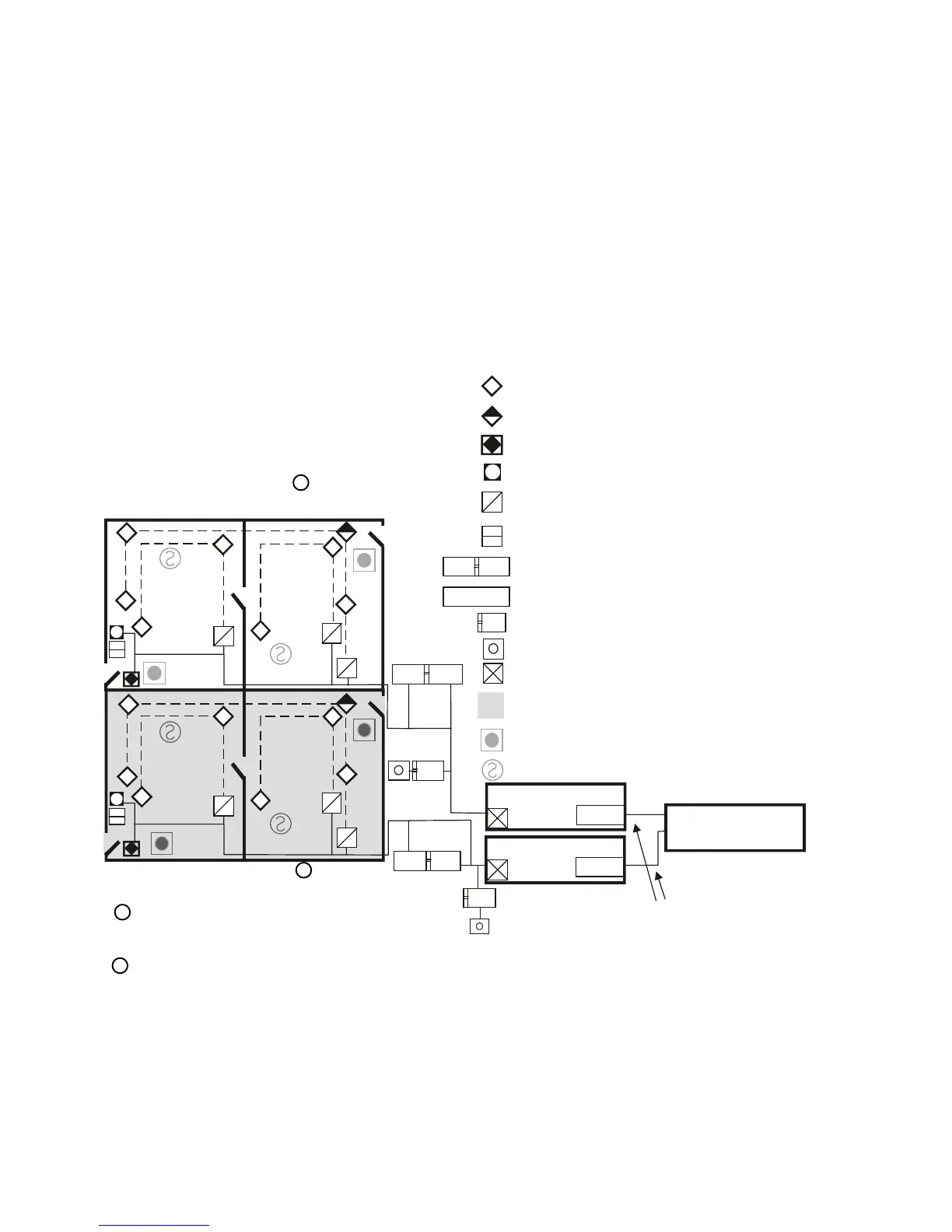

Figure 1.3-15 Multiple Tenant Security System with Ringback
Key
Motion Detector
Contact Switch
MM C M
TENANT A
AREA 1
(Perimeter
and
Interior)
MM C M
TENANT B
AREA 1
(Perimeter
and
Interior)
Contact Switch w/MM
MM Security Area Monitor
AM2020/AFP1010
Central Station
RKS-S Remote Keyswitch w/MM
Pull Station
Smoke Detector
Group Interface
Shaded Area Indicates Second Tenant
ACM-16AT or ACM-32A Remote Annunciator
* Group Interface must be physically located in
either the protected premises or the Central Station
Area10.cdr
*
PPU SLC
AM2020/AFP1010
PPU
AM2020/AFP1010
PPU
CM
* *
* *
PPU SLC
CM
* * * *
*
MM C M
Signaling LIne Circuit from Central Station
STS-1 Tamper Switch w/MM Module
RA400Z Remote Annunciator (See Fig. 1.3-12)
* *
* *
CM Control Module for Ringback (See Fig. 1.3-11)
NIB-96
NIB-96
NIB-96
NIB-96 Network Interface Board
*
** Must be physically located in the Protected
Premises and the RA400Z must be visible indication
that the central station has received the Arming
Signal from the PPU
1
1
2
2
Program Tenant A using zone numbers
Zaa through Zal.
Program Tenant B as shown, but
substitute Zba through Zbl for Zaa
through Zal, respectively.
CM
