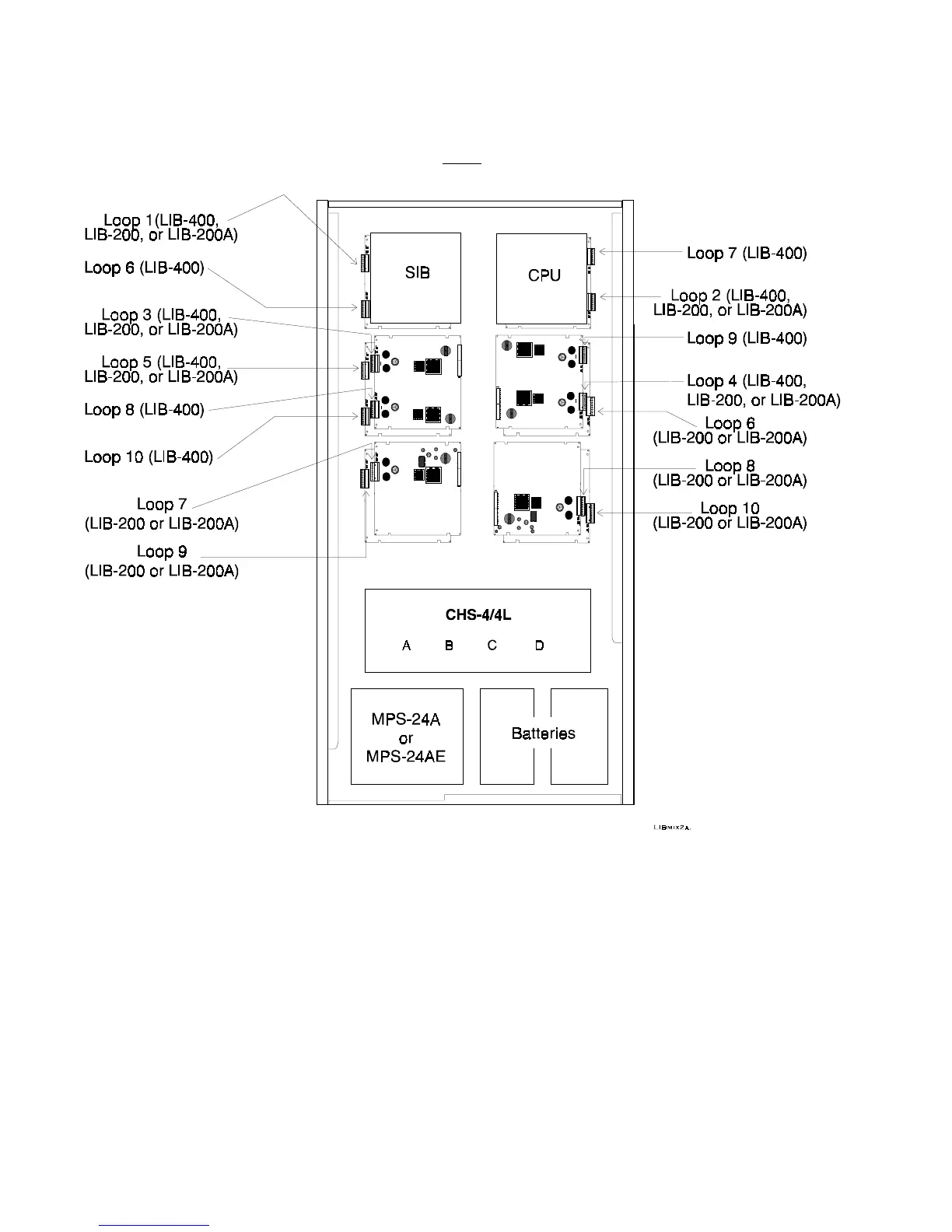

Installation 15088:J 10/22/99
Figure 2
.4-3
AM2020
LIB
SLC
Numbering
Scheme
Figure 2.4-3
depicts the LIB SLC numbering scheme for an AM2020 in a CAB-D3 cabinet.
Three ICA-4L chassis
are required to mount the various types of LIB modules emplo
yed.
