Notifier AFP1010 User Manual

1-24
Installation 15088:J 10/22/99

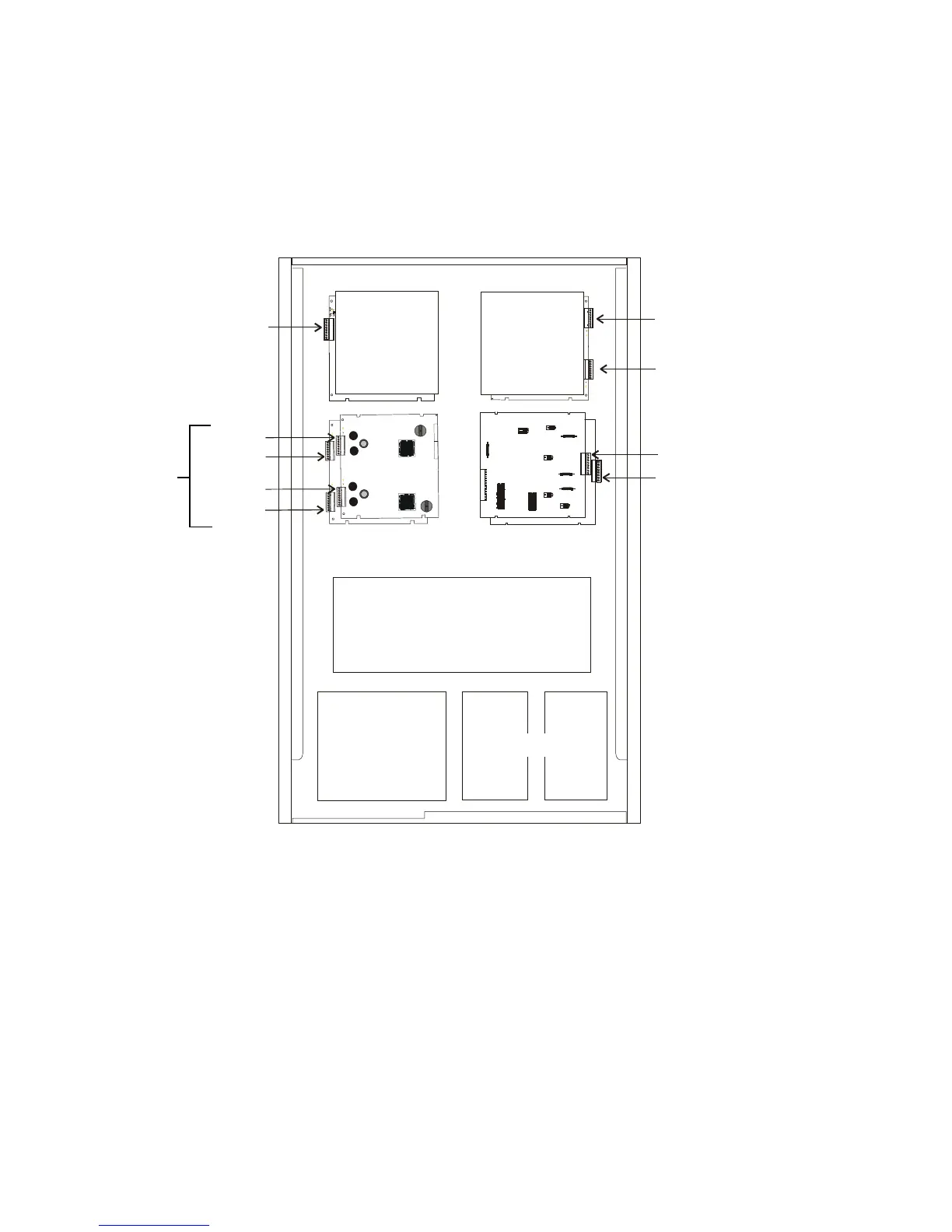

Figure 2.4-7 LIB Placement Example in an AM2020
Figure 2.4-7 depicts the AM2020 with a combination of LIB-400, LIB-200A, and LIB-200 modules installed in the
first and second rows of a CAB-C3 cabinet. Two ICA chassis are required, but are not shown in the figure. The
LIB-400 always occupies both addresses (refer to Figures 2.4-4 and 2.4-6). Various combinations of LIB boards
may be installed (refer to Figure 2.4-3) as long as the following measures are taken:
• Do not install duplicate loop numbers.
• When installed in the ICA the LIB-200 or LIB-200A always occupies the lower number address for a
given ICA position.
SIB CPU
CHS-4/4L
A B C D
MPS-24A
or
MPS-24AE
Batteries
Loop 7 (LIB-400)
Loop 2 (LIB-400)
Loop 4 (LIB-200 or LIB-200A)
Loop 6 (LIB-200 or LIB-200A)
Loop 10
Loop 8
Loop 5
Loop 3
(LIB-400)
Loop 1(LIB-200 or LIB-200A)
