1-23
Installation 15088: J 10/22/99

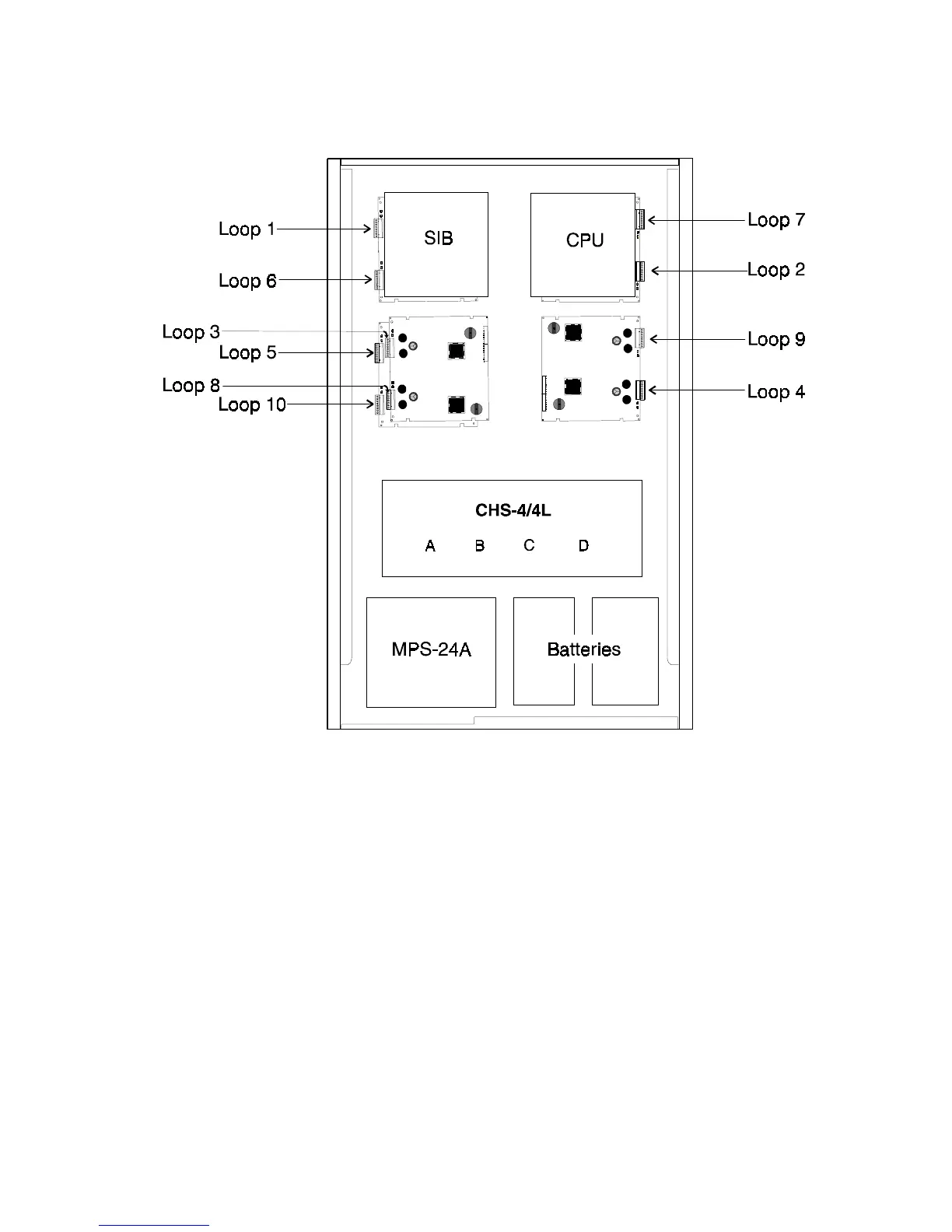

Figure 2.4-6 LIB-400 Placement in an AM2020
Figure 2.4-6 depicts a CAB-C3 cabinet used with LIB-400 modules exclusively, which means it may house a
maximum ten loop AM2020 system. An ICA-4L or ICA-4 chassis (neither of which is shown in the figure) is re-
quired for mounting the LIB-400.
