Programming 15088:J 10/22/99
3-71

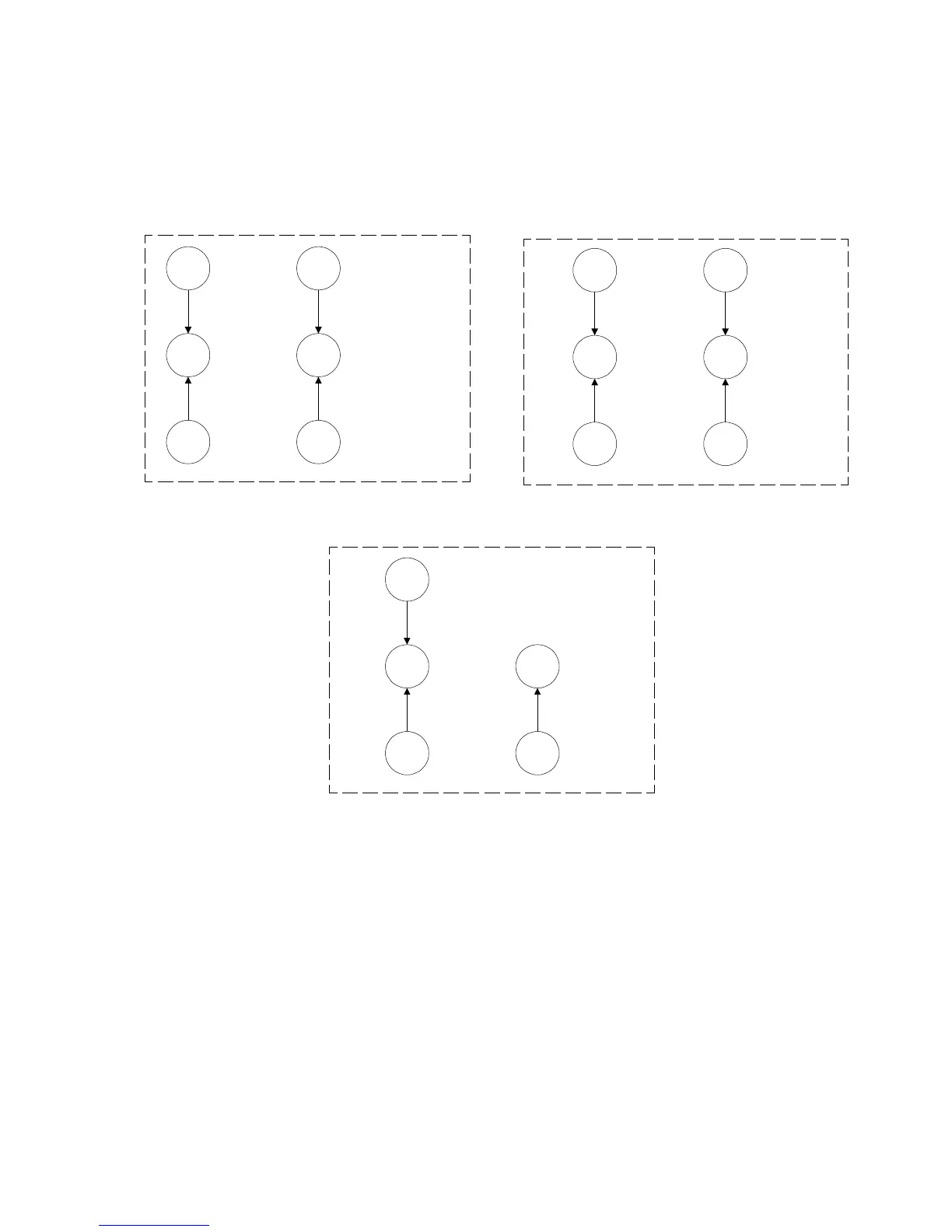

Example # 5: CCBE for
NOTIFIRENET
Node 1
will activate
L1M1
if
Z1
is active locally
. Node 1
will activate
L1M2
if
Z200
is active locally or in both
Nodes 7
and
43
simultaneously.
Node 43
will activate
L1M2
if
Z200
is not active locally and not activated in
Node 7
.
L1D1
Z1
L1M1
CMX
L1D2
RZON
Z200
L1M2
CMX
(Z1)
(Z200)
OR(Z1)
OR(Z200)
( )
OR( )
AND(N7Z200 N43Z200)
NODE
1
(Z1)
(Z200)
OR(Z1)
OR(Z200)
( )
OR( )
OR( )
L1D1
Z1
L1M1
CMX
L1D2
RZON
Z200
L1M2
CMX
NODE
7
NODE
43
(Z1)
OR(Z1)
NOT(Z200)
( )
OR( )
OR(N7Z200)
L1D1
Z1
L1M1
CMX
RZON
Z200
L1M2
CMX
