Central Station Fire Alarm System Canadian Requirements Installation
3.12 Central Station Fire Alarm System Canadian
Requirements
For Canadian applications requiring a second dial-out option, refer to the following illustration for
UDACT-2 and TM-4 setup:

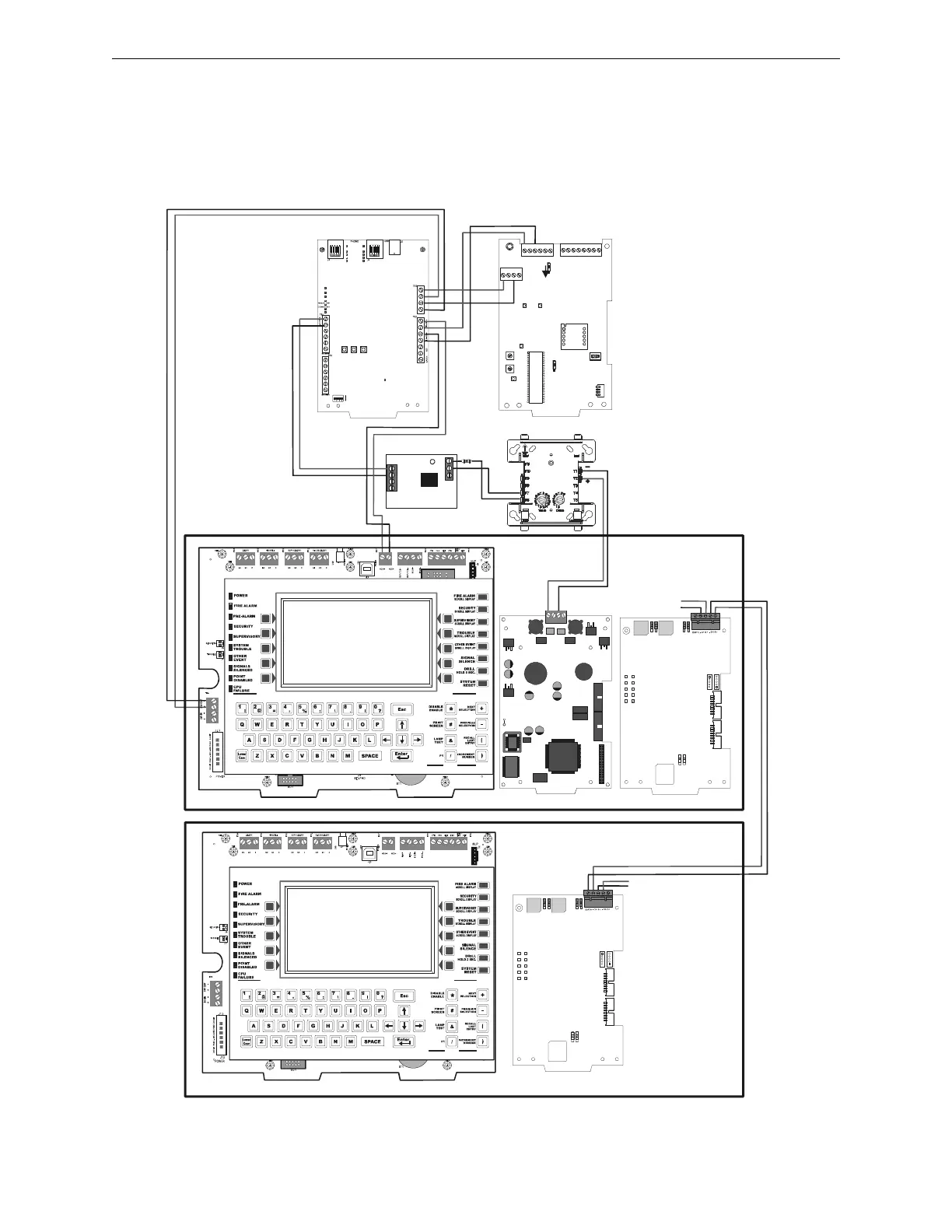

Figure 3.20 Central Station Canadian Requirements for Second Dial-Out Connection
J2
SLC
B+ A+ B- A-
LCM-320 PCA
TB1
LEM-320
DATA
J1
J1
0
NO
ON
NC
C
18/24
115
230
1
1
S5W
LED3
LED4
LED1LED2
S1W
ELR
TXACS
RXACS
POWER
TROUBLE
SW4
REM OT E
STATION
ALARM
ACS
TB2 TB1
ACS REF
REMOTE
STATION
SUPERVIS ORY
MUNICIPAL
BOX
REMOTE
STATION
TROUBLE
T3B
S2W
S3W
SW6
NON-ISOL ATED
DISABLE
ISO LAT ED
ENABLE
+24VDC REF
+-
LINE SEIZ E
LED 3
LED 20
LED 8
LED 2
LED 1
LED 9
LED 14
LED 13
+ 24V
COMMON
INPUT 1
INPUT 2
INP UT 3
INPUT 4INPUT 5
TRANS
CLEAR
SW1
SW2
SW3 SW4
RESET
TEST
REPORT
REAL TIME
EIA-485 C OMM LOSS
POWER
LED 5
LED 6
LED 7
LED 17
LED 18
LED 19
LED 4
LED 15
LED 16
LINE FAIL
NO TONE
KISS OFF
COMM FAIL
PRI SEC
OPTION
SELECT
SWITCH
1 2 3 4
OFF
ON
ON
LED21
TON E DETE CT
RECON
PULSE1
LED6 LED7
LED10 1
LED100
LED4 LE D2
LED3 LED5
LED1 LE D8
STATA STATB
RCDA RCD B
A HI
B HI
EF B TER M B
SW101
SW102
SW103
ON OF F
EF A TERM A
SW100
ON OF F
NUP1 NUP2
J3 J2
LCM
A
TERM
A
SW1
ON
SW2
OFF
LCM ALCM B
RESET
POWER
RECON
PULSE1
LED6 LED7
LED101
LED100
LE D4 LE D2
LED3 LE D5
LED1 LED8
STATA STATB
RCDA RCDB
A HI B HI
EF B TER M B
SW101
SW102
SW103
ON OFF
EF A TER M A
SW100
ON OFF
NUP1 NUP2
J3 J2
LCM
A
TERM
A
SW1
ON
SW2
OFF
LCM ALCM B
RESET POWER
EIA-485
Relay
Drive
24V
24V
+
_
+
+
+
NFS2-3030
LCM-320
NCM-W
To Previous
Node on
Network
To Next Node
on Network
NCA-2
NCM-W
_
_
_
_
TM-4
UDACT-2
MR-101/C
FMM-1
SLC
+
24V
EIA-485
+
+
_
{
{
{
{
24V
EIA-485
_
NOTES:
• Drawing is not to scale.
• The UDACT/UDACT-2 should
be set for “Receive Only” for
this configuration. For
additional UDACT/UDACT-2
setup information, refer to the
UDACT Installation Manual. or
UDACT-2 Instruction Manual.
• This illustration is show with
the NCM-W. For other NCM or
HS-NCM setup, refer to the
NCM Installation or HS-NCM
Installation documents.
• For additional setup information
on the TM-4, refer to the TM-4
Instruction Manual.
