Message Formats General Information
The format of the first line will vary slightly as follows, depending on the type of event.:
The second, third and fourth lines always contain the same device information, as follows:
The point event example screen below shows a trouble condition that has been generated by the
detector on loop 3, address 2.

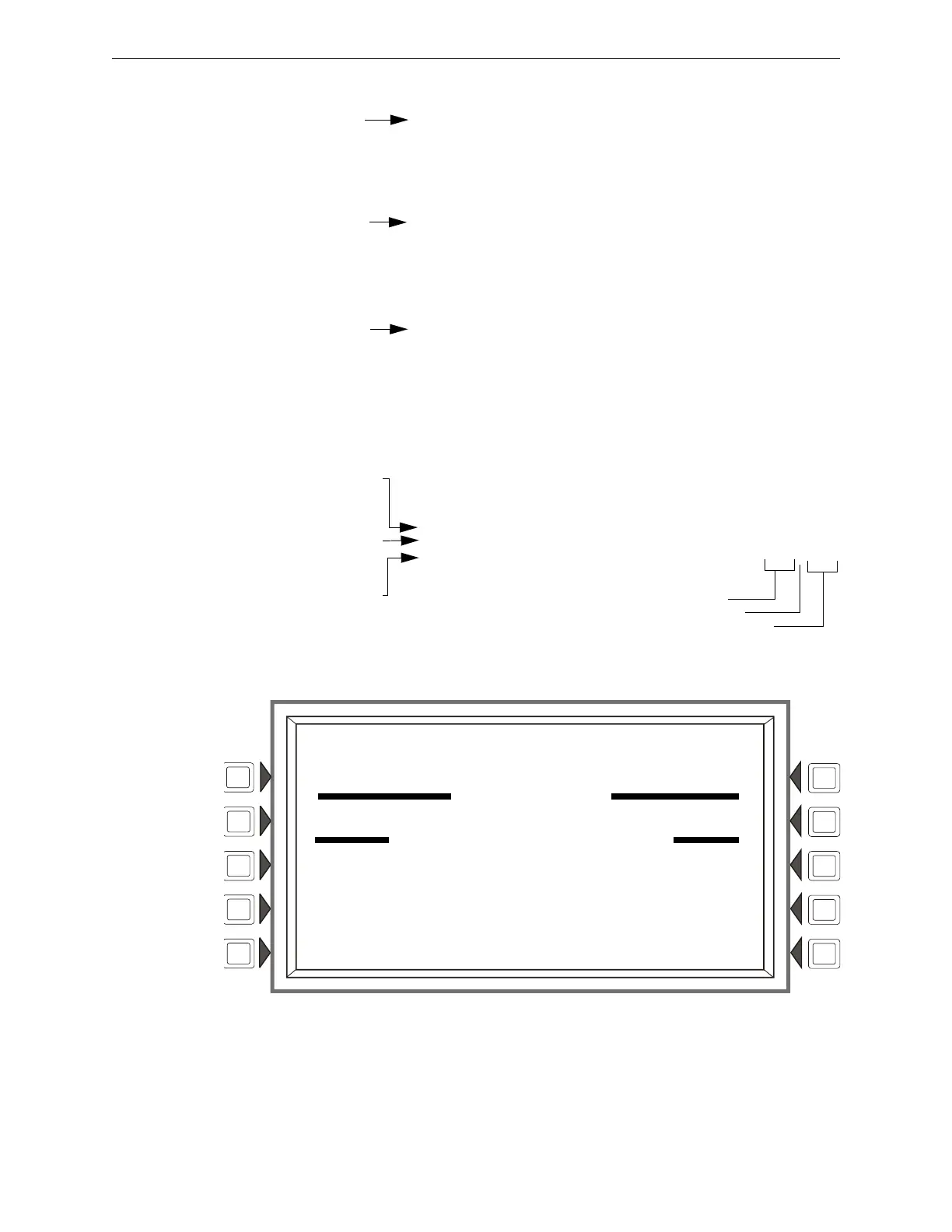

Figure 1.3 Point Event Display Example
The event counts display shows the counts for outstanding events. The date in line eight gives the
current time. The soft keys may be used to deal with the event; their functions are described in the
Operation section of this manual.
FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D002
Line 1
Displays the type of
event, and whether it
has been
acknowledged or
cleared.
TROUBLE DETECTOR FAILED TEST
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D002
Line 1
Displays TROUBLE,
the type of trouble,
and whether it has
been acknowledged
or cleared.
Event
Format
(not trouble
or pre-
alarm)
Event
Format
(trouble)
Line 1
Displays PREALARM,
the sensitivity reading
and whether it has
been acknowledged
or cleared.
PREALARM 120% OF FIRE SENSITIVITY LEVEL5
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D002
Event
Format
(pre-alarm)
FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D002
Line 2 - Displays the custom
label and the extended label
Line 3 - Displays the primary
zone label, the primary zone
number, and the software
Type ID.
Line 4 - Displays event time,
event date and device
address.
Loop number
Detector
Device address
TROUBLE DETECTOR FAILED TEST
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z239 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D002
EVENT COUNTS
FIRE ALARMS:000 PREALARM:000 TROUBLE:001
SUPERVISORY:000 SECURITY:000 OTHER: 000
11:58:46A TUE JAN 25, 2011
ACKNOWLEDGE SIGNAL SILENCE
MORE INFORMATION SYSTEM RESET
PROGRAM/ALTER STATUS BACK

Notifier NFS2-3030 Specifications

General

Type	Intelligent Fire Alarm Control Panel
Power Supply (6 amps total system power)	6 amps total system power
SLC Loop Voltage	24V DC
NAC Voltage	24V DC
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes, via NOTI-FIRE-NET
Programming	Via VeriFire Tools
Power Supply	120V or 240V AC, 50/60 Hz
Battery Backup	Yes
Communication Ports	RS-232, USB
SLC Loops	1 or 2
NAC Outputs	4
Operating Voltage	24V DC nominal
Number of Signaling Line Circuits (SLC)	2
SLC Loop Current	0.5 A max per loop
Number of Notification Appliance Circuits (NAC)	4
Total NAC Current	6 amps
Number of Relays	4
Relay Contact Rating	2.0 A @ 30 VDC
