16 NFS2-3030 Operations Manual — P/N 52546:N1 06/20//2014
General Information Message Formats
System Events Format
When a system trouble occurs, a message is generated to the panel that displays on the top of the
LCD screen, and soft keys display available functions that may be used to handle the event.

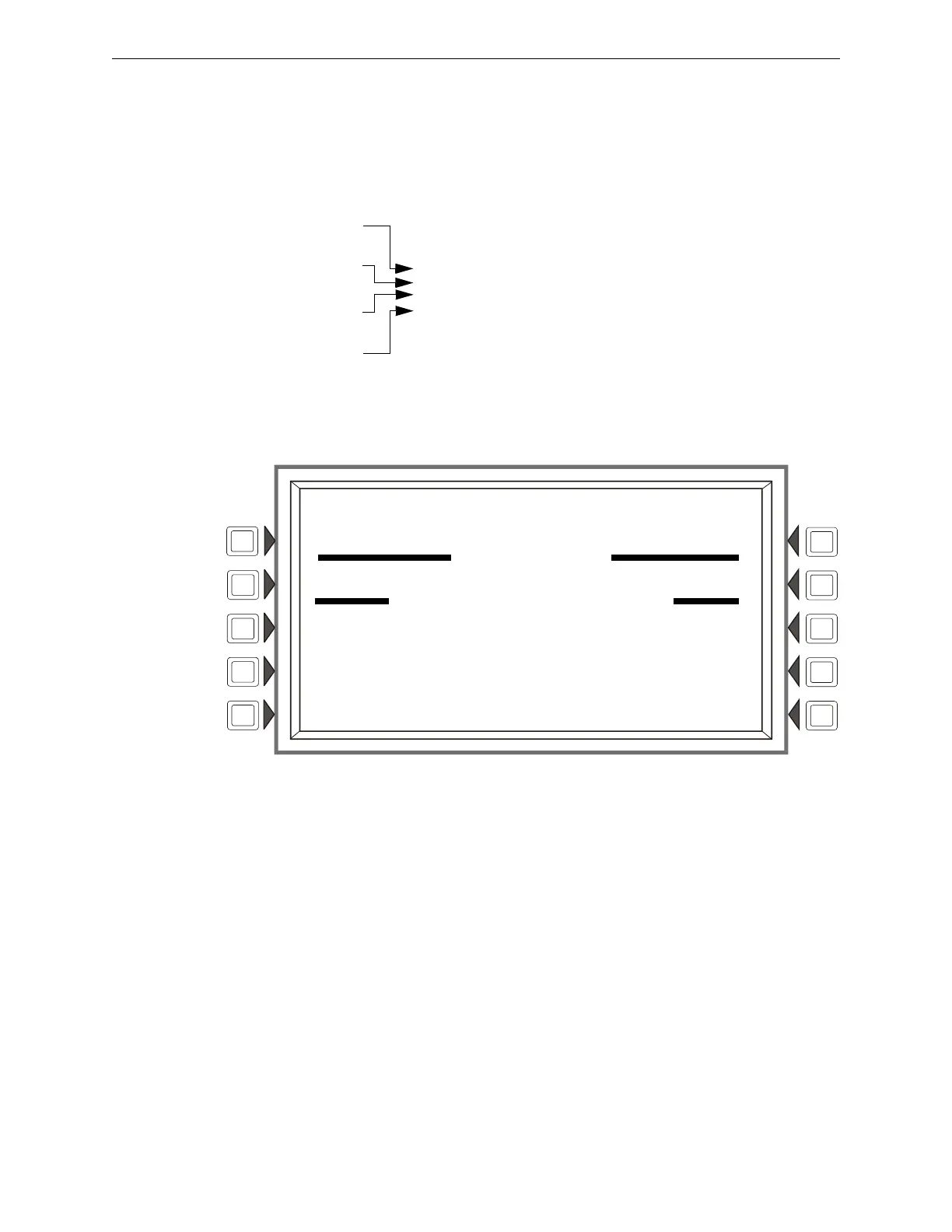

The top four lines contain event information, and are formatted as follows:
The system trouble event example screen below shows an annunciator trouble condition.
Figure 1.4 System Event Display Example
The event counts display shows the counts for outstanding events. The date in line eight gives the
current time. The soft keys may be used to deal with the event; their functions are described in the
Operation section of this manual.
Mass Notification Events
When a local mass notification event occurs on the fire panel, a message is generated to the panel
that displays on the top of the LCD screen, and soft keys display available functions that may be
used to handle the event.
TROUBLE
ANNUN 1 TROUBLE
LAKEVIEW GENERAL HOSPITAL
11:58:45A TUE JAN 25, 2011
Line 1 - Displays
TROUBLE and whether it
has been acknowledged
or cleared
Line 2 - Displays trouble
type
Line 3 - Displays custom
message.
Line 4 - Displays event
time and date and node
address.
TROUBLE
ANNUN 1 TROUBLE
LAKEVIEW GENERAL HOSPITAL
11:58:45A WED TUE JAN 25, 2011
EVENT COUNTS
FIRE ALARMS:000 PREALARM:000 TROUBLE:001
SUPERVISORY:000 SECURITY:000 OTHER: 000
11:58:46A TUE JAN 25, 2011
ACKNOWLEDGE SIGNAL SILENCE
MORE INFORMATION SYSTEM RESET
PROGRAM/ALTER STATUS BACK
To Next Page
