Message Formats General Information
The format of the first line will vary slightly as follows, depending on the type of event.:
The second, third and fourth lines always contain the same device information, as follows:
Refer to Figure 1.3 on page 15 for an example of a Point Event Display.
If the fire panel is ALL SYSTEMS NORMAL and a Mass Notification event occurs over the net-
work on a MNS mapped node, the panel will display NETWORK MN ACTIVE. Refer to VeriFire
Tools for MN Mapping information.
Figure 1.5 Network Mass Notification Event Example
MN ALARM
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF20 MN MON
11:58:45A TUE JAN 22, 2013 L03M002
Line 1
Displays the type of
event, and whether it
has been
acknowledged or
cleared.
MN TROUBLE DETECTOR FAILED TEST
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF22 MN MON
11:58:45A TUE JAN 22, 2013 L03M003
Line 1
Displays
MN TROUBLE, and
whether it has been
acknowledged or
cleared.
Event
Format (not
trouble or
supervisory)
Event
Format
(trouble)
Line 1
Displays
MN SUPERVISORY
and whether it has
been acknowledged
or cleared.
MN SUPERVISORY
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF21 MN SUPL
11:58:45A TUE JAN 22, 2013 L03M004
Event
Format
(supervisory)
MN ALARM
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF20 MN MON
11:58:45A TUE JAN 22, 2013 L03M002

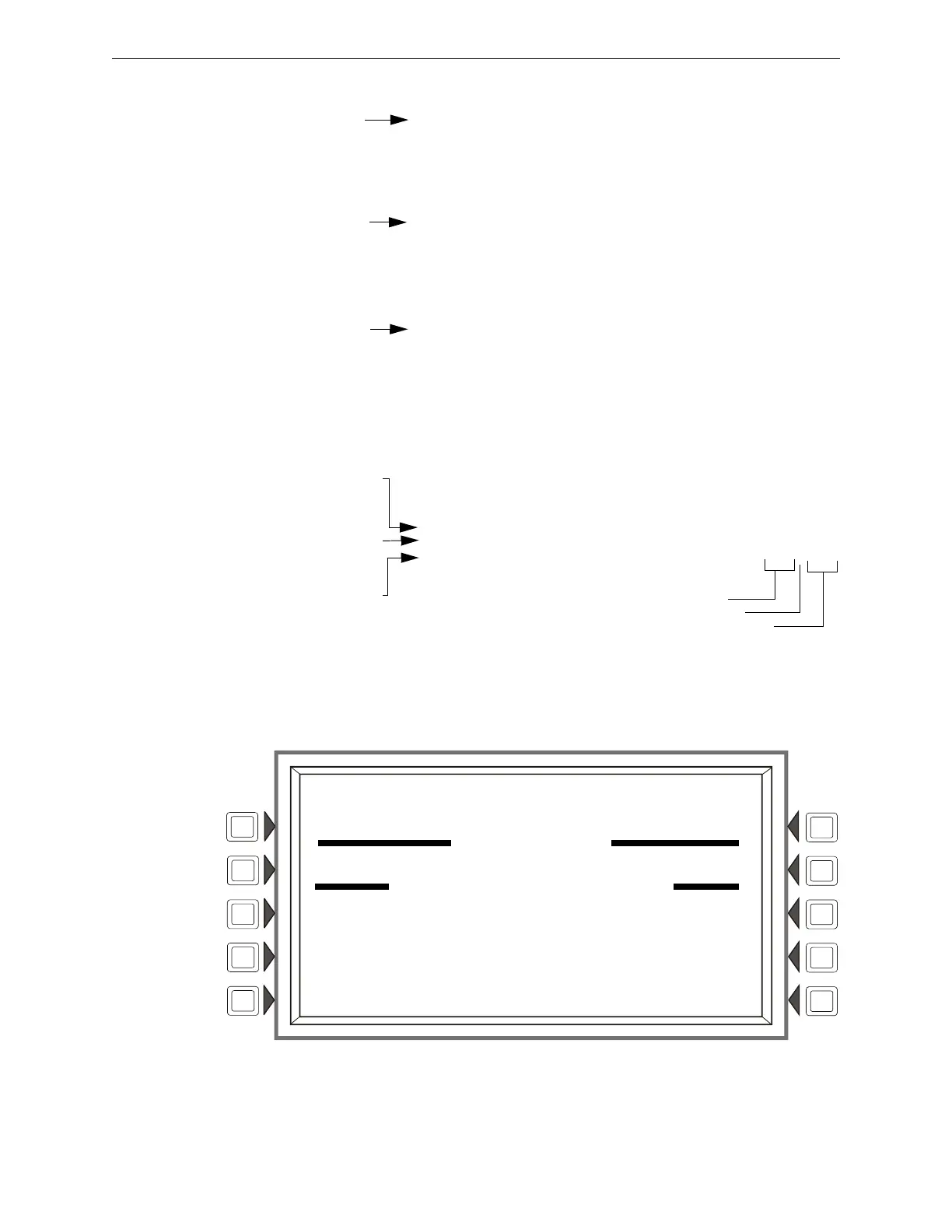

Line 2 - Displays the custom
label and the extended label
Line 3 - Displays the primary
zone label, the primary zone
number, and the software
Type ID.
Line 4 - Displays event time,
event date and device
address.
Loop number
Monitor
Device address
NETWORK MN ACTIVE
11:58:45A WED TUE JAN 25, 2011
EVENT COUNTS
FIRE ALARMS:000 PREALARM:000 TROUBLE:000
SUPERVISORY:000 SECURITY:000 OTHER: 000
11:58:46A TUE JAN 25, 2011
ACKNOWLEDGE SIGNAL SILENCE
MORE INFORMATION SYSTEM RESET
PROGRAM/ALTER STATUS BACK
To Next Page
