3 HARDWARe OVeRVIeW

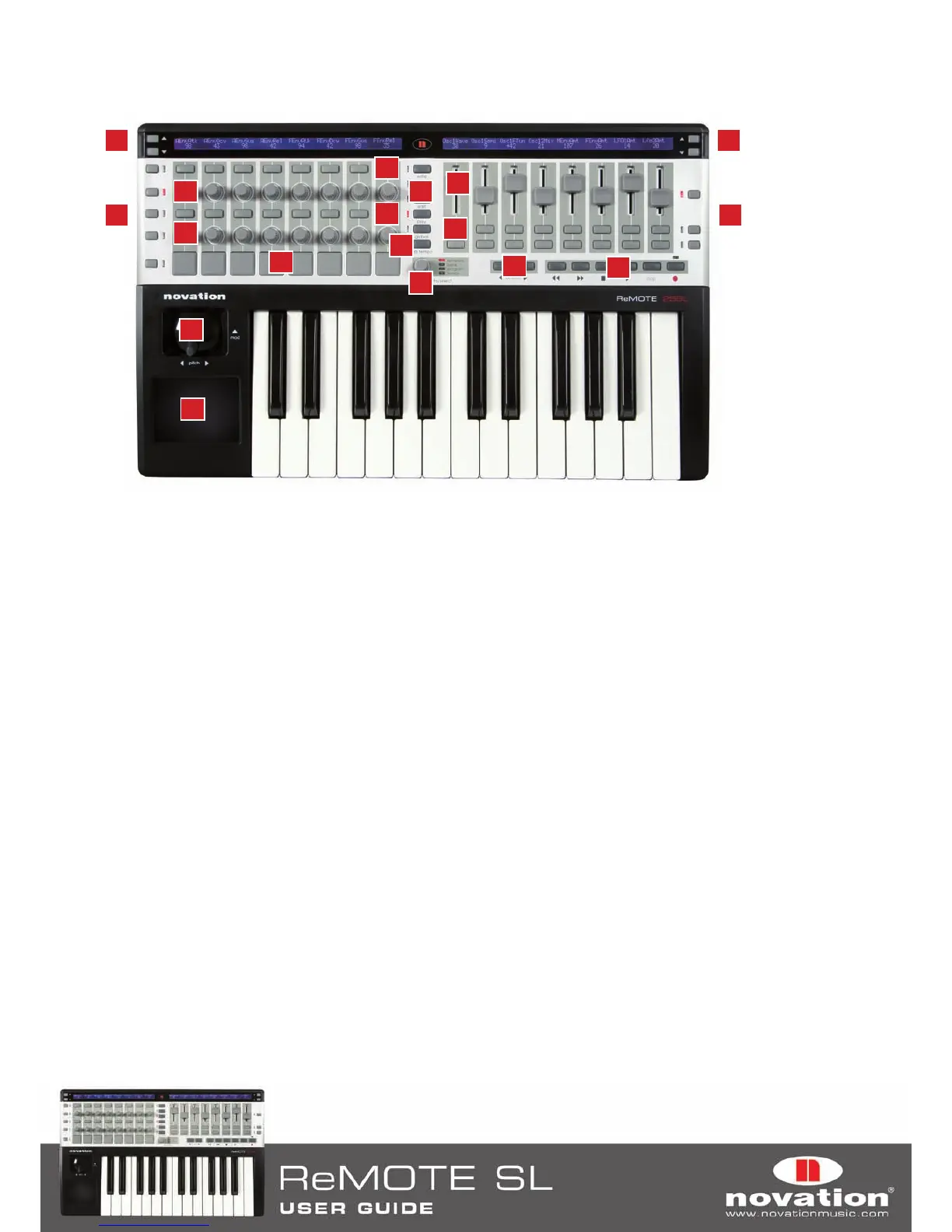

3.1 FRONT PANeL OVeRVIeW
Assignable controls - Numbers 1-8:
These are controls that can be assigned to parameters of the software or hardware you are controlling.
1. 8 detented endless rotary encoders
2. 8 pots
3. 8 35mm sliders
4. 32 buttons
5. 8 velocity-sensitive drum pads
6. 6 transport buttons
7. Pitch/mod joystick
8. X-Y touchpad
System controls - Numbers 9-14:
These controls are not assignable. They have fixed functions.
9. SCROLL buttons: Use these to scroll through pages of options when in a menu or through pages of additional control
info when in Play mode. These buttons have other functions when using Automap (see sections 7 to 10 for further info).
10. ROW-SELECT buttons: Use these to select which row of controls has its info shown on the display. These buttons can
have other functions when using Automap (see sections 7 to 10 for further info).
11. Mode/Menu buttons (WRITE, TEMPLATE, EDIT, GLOBAL and PLAY): Use these to access the different modes and
menus of the ReMOTE SL.
12. TAP TEMPO button: Press this repeatedly to set the tempo.
13. OCTAVE UP/DOWN buttons: Use these to transpose the keyboard up/down in octave steps.
14. DATA/SELECT encoder: Use this to select templates, send bank or program change messages or set the tempo.
Press the encoder to change its current function, indicated by the LEDs to the right of it.
