15 THE TEMPLATE MENU
This menu allows access to template settings that do not apply to individual assignable controls and are not found in Edit
mode. Press the TEMPLATE menu button to access the Template menu and edit the settings for the currently selected
template. There are two pages in the Template menu that you can scroll between using the SCROLL buttons. Additionally,
pressing the TEMPLATE menu button a second time accesses the Template Keyboard Zones menu that also has two
pages. Repeated presses of the TEMPLATE menu button will switch between the Template menu and the Template
Keyboard Zones menu. Further information on the Template Keyboard Zones menu can be found in section 16.

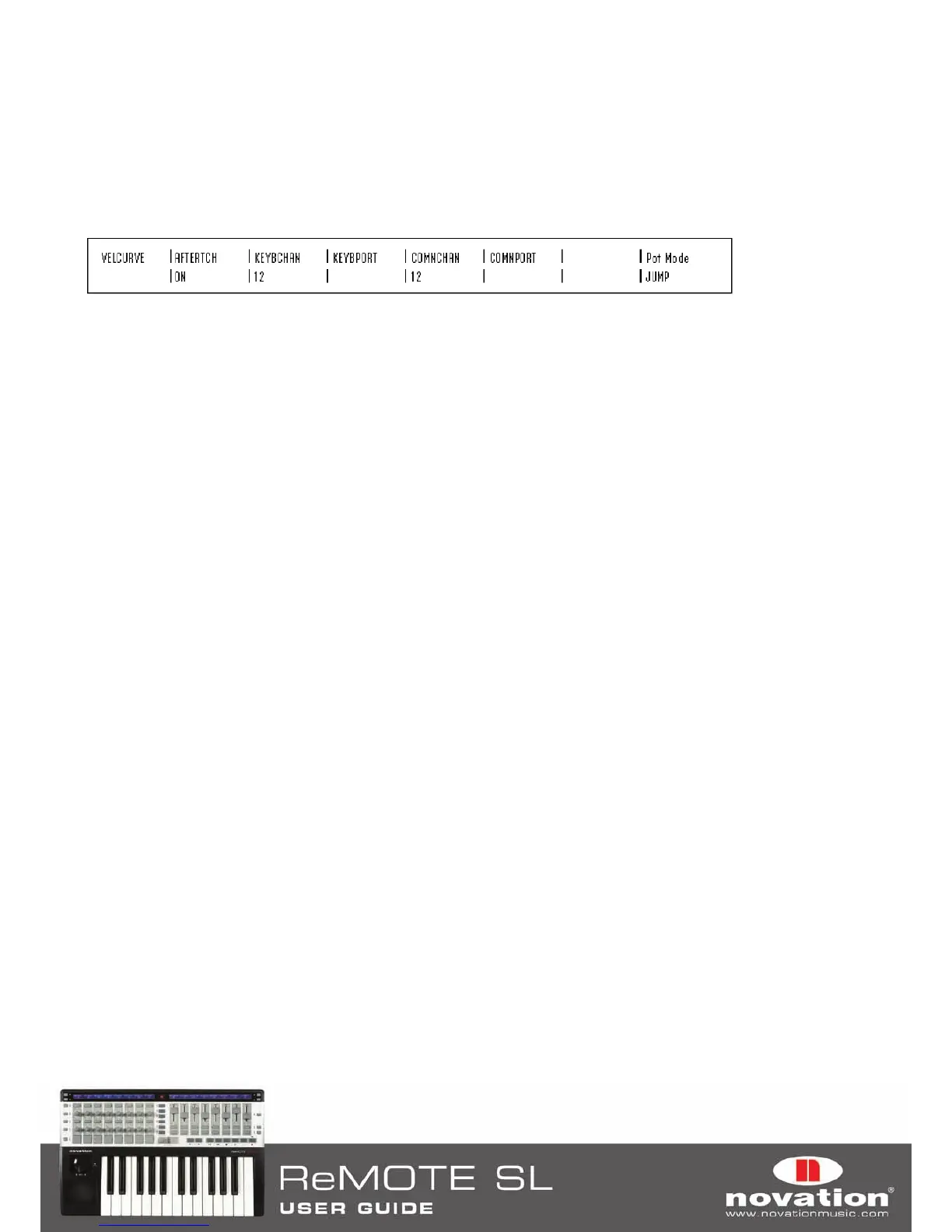

The first page of the Template menu is as follows:
VelCurve (Velocity Curve):
This sets the velocity curve (loudness response) of the keyboard keys to either SOFT 1-2,
MEDIUM 1-3, HARD 1-2 or a fixed velocity value between 8 and 127.
AfterTch (Aftertouch):
This setting allows you to turn the keyboard aftertouch mechanism on/off for the currently
selected template.
KeybChan (Keyboard MIDI Channel):
This sets the MIDI channel on which note on/off and aftertouch messages are sent
when the keyboard keys are operated. Additionally when bank and program messages are sent using the DATA/SELECT
encoder in Play mode (see section 13.1), they are sent using the Keyboard MIDI channel. Any assignable controls that have
MidiChan set to ‘KeybCHAN’ in Edit mode will also send messages using the Keyboard MIDI channel. If you change the
Keyboard MIDI channel setting then all controls assigned to ‘KeybCHAN’ will follow the change automatically. The range for
this setting is 1-16 and ‘ComnCHAN’ (see below).
KeybPort (Keyboard Port):
This sets the port(s) on which MIDI data from the keyboard (note and aftertouch messages)
are sent from the ReMOTE SL. Additionally when bank and program messages are sent using the DATA/SELECT encoder
in Play mode (see section 13.1) they are sent on the ports set here. Any assignable controls that have MidiPort set to
‘KeybPORT’ will also send messages using the Keyboard Ports. If you change the Keyboard Ports setting then all controls
assigned to ‘KeybPORT’ will follow the change automatically. The options for this setting are as follows:
OFF: MIDI data is not transmitted.
U1: Sent to USB Port 1.
U2: Sent to USB Port 2.
M1: Sent to MIDI OUT Port 1.
M2:
Sent to MIDI OUT Port 2.
plus the following combinations of the above:
U1 M1
U2 M1
U1 M2
U2 M2
M1 M2
U1 M1 M2
U2 M1 M2
SOFT 1 U2 U2
