NSK MEGATORQUE MOTOR SYSTEM - Specifications of the EDC Driver Unit; Hardware Interface Specifications

2. Specification
— 2-1 —
2. Specifications
2.1. General Specifications
Table 2-1: General specifications
Item Description
Protocol
CC–Link Ver.1.10
Number of slave stations
(Type of station)
2 Remote device stations
Number of addressable
remote input ports
17
16 ports are available for any function
assignment
Number of addressable
remote output ports
8
7 ports are available for any function
assignment
Remote register output
2 words Enables to configure the contents of output
2.2. Specifications of Hardware Interface
2.2.1. External Dimensions

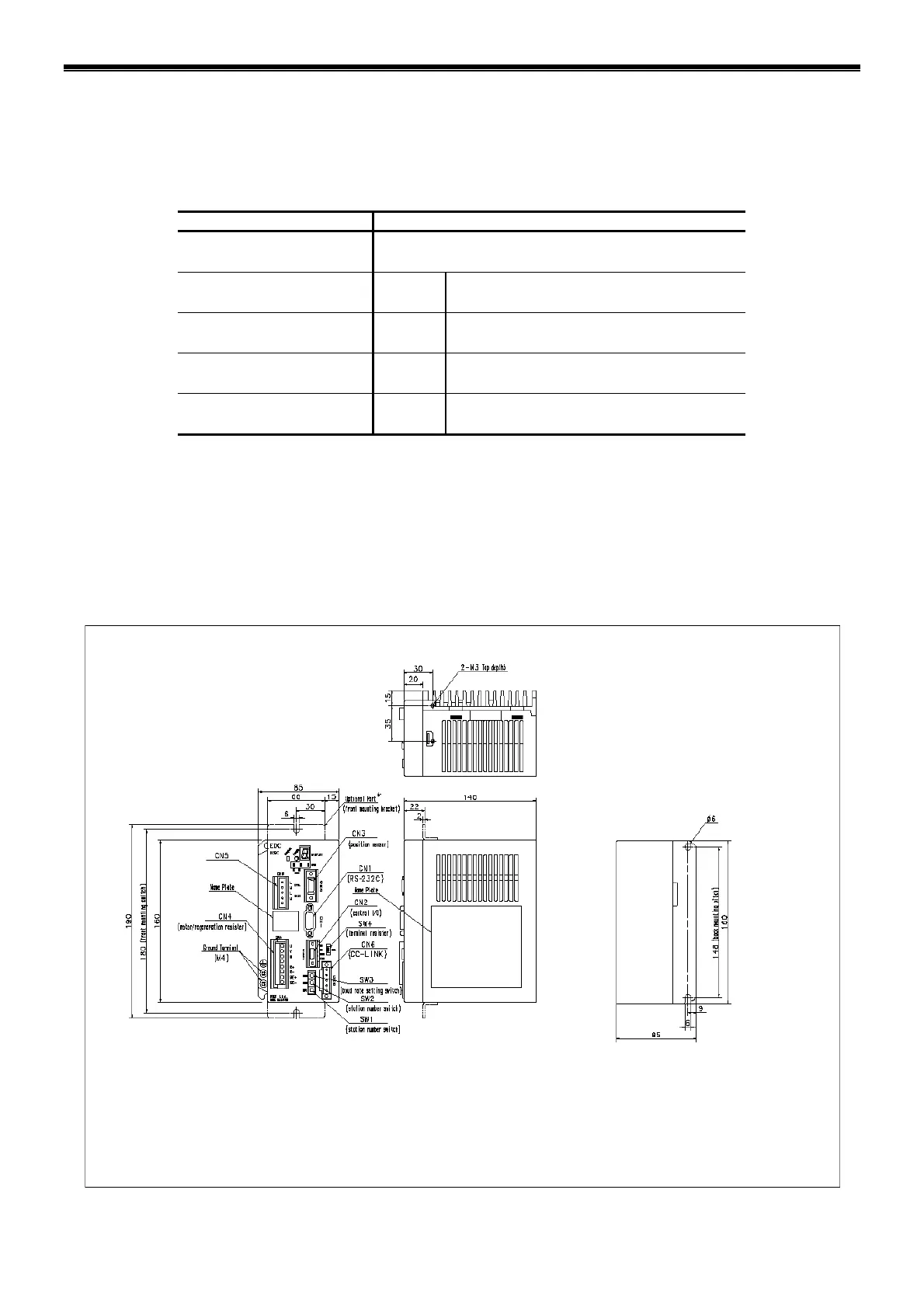

Fig. 2-1: EDC Driver Unit compatible with CC-Link Network
( Motor type: PS1006, PS1012, PS1018, PS3015 and PS3030)
