NSK Primado2 User Manual

31
Operation of SMH/HMH Series
English

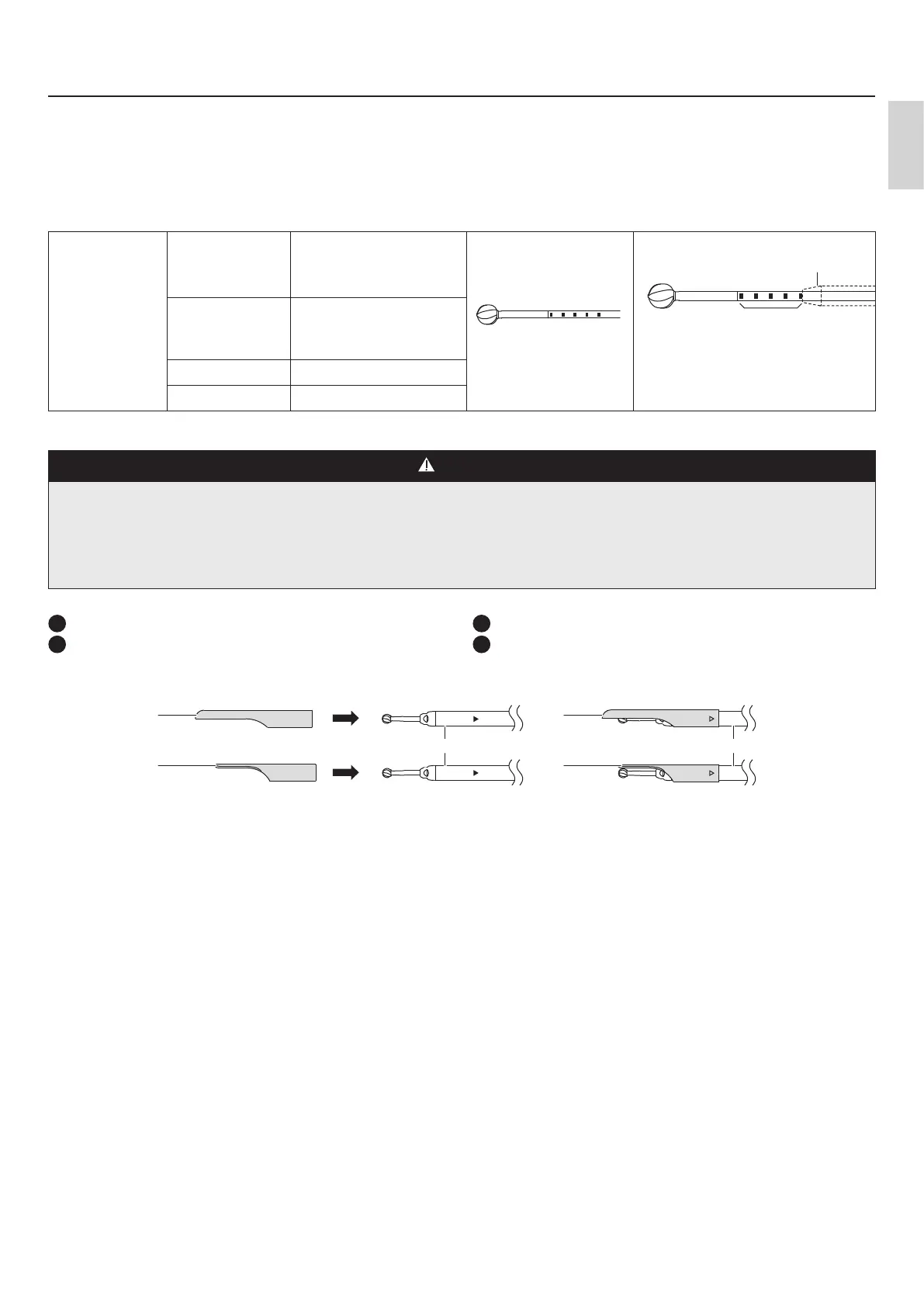

Ring Marks
Some of the NSK Cutting Accessories have Ring Marks.
Check the Ring Marks of each Cutting Accessory to mount it appropriately.
* There is no Ring Mark on the Cutting Accessories not shown in this Operation Manual.
Applicable
Attachment
Applicable Tube
Applicable Cutting
Accessories
Ring Mark Correct Mounting Position
P300-1AHS
P300-1AHA
P300-1T110
P300-1T110-C
P300-1T110-PB
PDS-1□□110-□□
P300-1T130
P300-1T130-C
P300-1T130-PB
PDS-1□□130-□□
There are 6 Ring Marks.
Each Ring Mark goes inside the
Attachment each time the exposure
length is adjusted.
P300-1T170
PDS-1□□170-□□
P300-1T240
PDS-1□□240-□□
Mounting and Removing the Hood/Beak (Optional)
CAUTION
● Be sure to mount the Hood/Beak after the Cutting Accessory is mounted on the Attachment.
● Insert the Hood/Beak until ' ▶ ' mark on the Bur Guard is hidden when mounting the Hood/Beak.
● Use the Cutting Accessory with its tip of Ø3mm or less when mounting the Hood/Beak.
* The Hood/Beak cannot be used for attachments other than Slim Attachment 300 or Standard Attachment 300.
● Be sure to completely stop rotation of the Attachment before mounting/removing the Hood/Beak.
_ Mounting
1
Make sure that the rotation of the Attachment is stopped.
2
Mount the Hood Ⓐ/Beak Ⓑ on the Bur Guard Ⓒ.
_ Removing
1
Make sure that the rotation of the Attachment is stopped.
2
Pull the Hood Ⓐ/Beak Ⓑ straight out from the Bur Guard Ⓒ.
Ⓐ
Ⓑ
Ⓐ
Ⓑ
Ⓒ Ⓒ
<Before Mounting> <Mounted>
Ring Mark
Tip of Attachment
