NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
8
E-PLSD
The E-PLSD is a programmable LED Sensor Display with 2" tall status display characters to show the sensor value and 0.68"
characters to indicate which sensor data is being displayed and the unit of measure. It includes three touch-sensitive buttons.
"Brightness" to control the LED display illumination (sliding with your finger left to right)
"Sensor" to select the sensor data to be displayed
"Mode" to cycle the display mode between temperature in degrees Fahrenheit and temperature in degrees Celsius.
The LED display characters will be Green when sensor status is normal, Yellow when a sensor is in non-critical alert, and Red
when in critical alert status.
The E-PLSD includes mounting flanges with slots for mounting to your desired surface.

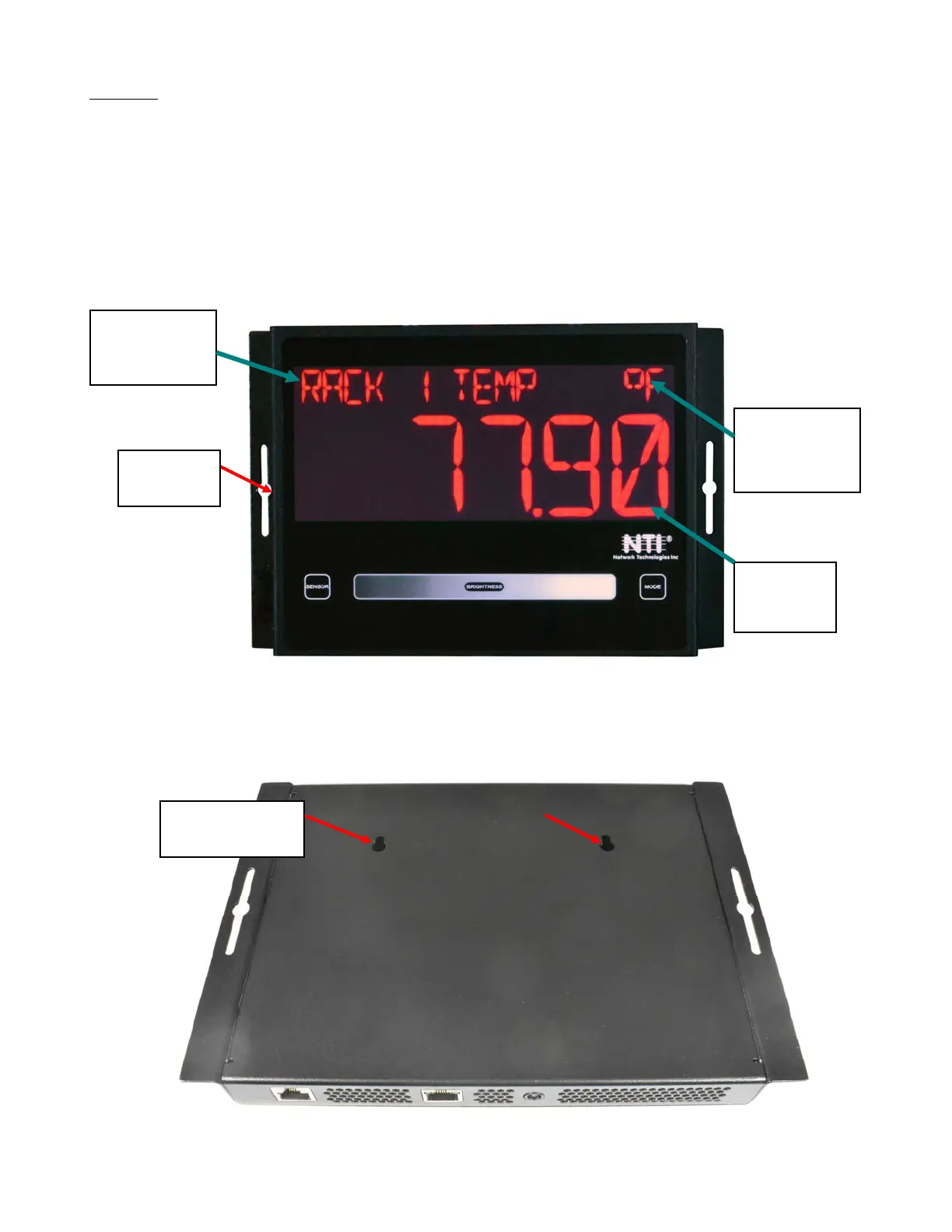

Figure 8- E-PLSD Programmable LED Sensor Display
Note: The E-PLSD only supports English characters.
There are also two keyhole slots on the rear of the case should you prefer to use them for mounting.
Sensor
Name/Location
(Description)
sensor b
eing
displayed
Sensor Unit of
Measure of
Sensor
Value
Reading
mounting
Keyhole slots for
mounting
Slot for
Figure 9- Rear View of E-PLSD
