NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
11

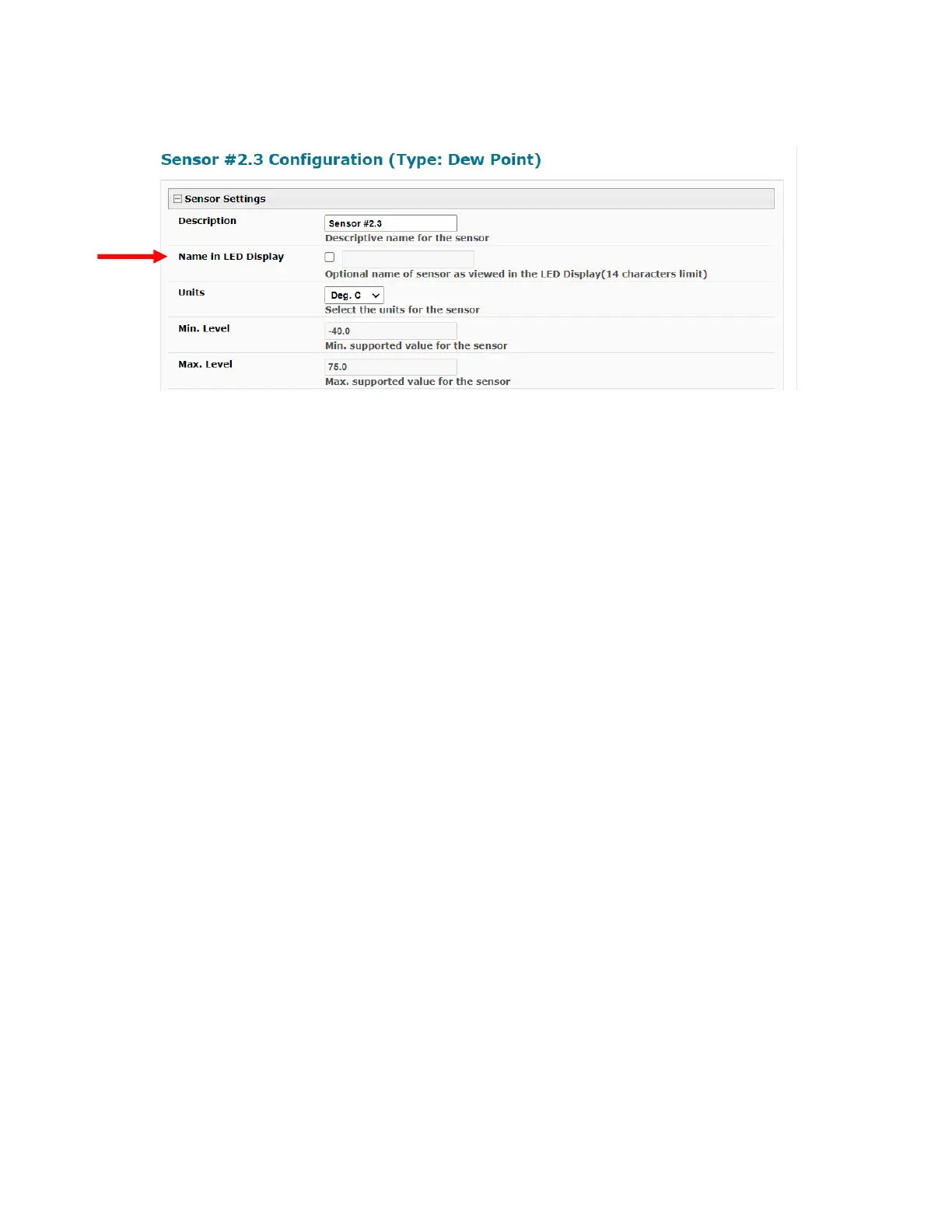

Figure 13- Assign name to be displayed in E-PLSD
If you select Scan Sensors in Alert, only sensors from the Current Scan List that are in alert will be displayed (yellow or red
characters). If no sensors are in alert, all sensors will be scanned (green characters).
Reset Scan Time sets the length of time that each sensor will appear on the display. The acceptable range is 5 to 1000
seconds. Numbers entered that are less than 5 will automatically be changed to 5, and numbers greater than 1000 will be
changed to 1000.
After selecting a value, click "Reset Scan Time" and all sensors in the "Sensor Scan List will have their scan time values changed
to that number.
Press Clear All to remove all sensors from the Sensor Scan List.
Press Add All to add all available sensors to the Sensor Scan List.
To remove an individual sensor from the list, or add an individual sensor to the list, simply drag and drop the sensor from one list
to the other. Scan time values can be assigned once a sensor is in the Sensor Scan List.
If you want to change the order in which they are scanned, simply drag sensors up or down to different positions in the list.
Whatever changes you make to this page, be sure to click the "Save" button when you are done to have the changes take effect
in the E-PLSD. When "Save" is clicked, the E-PLSD will automatically restart scanning from the top of the current scan list.
Sensor Button
If the Sensor button is pressed, the display will advance to the next sensor on the list and display that sensor reading for 30
seconds before continuing the scan. However, if the sensor scan time (see Figure 12) is greater than 30 seconds the display will
hold for the configured scan time before continuing the scan.
