NTI ENVIROMUX Series Instruction Manual

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
12
E-STS-O/-IP67 Outdoor Temperature Sensor

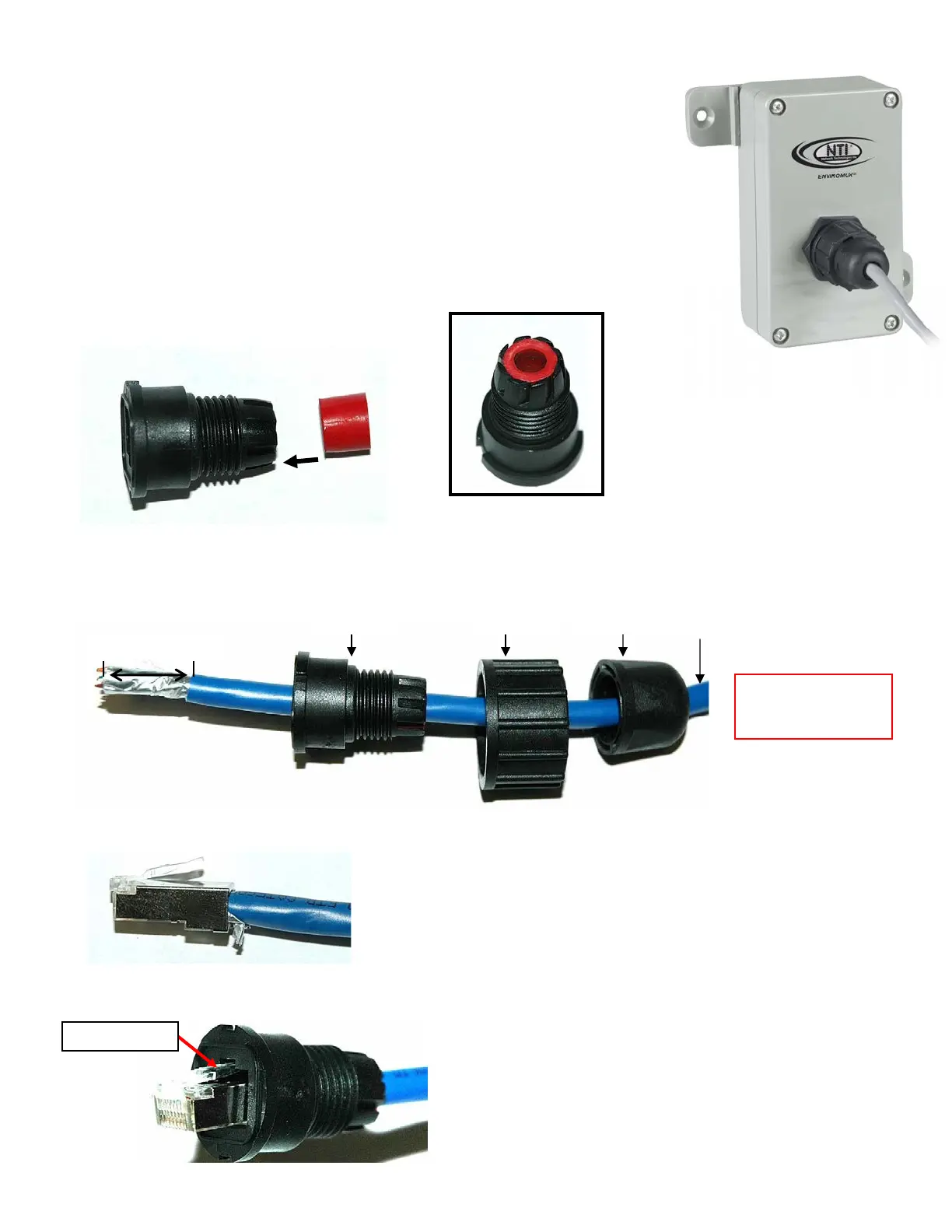

Cable Restraint Assembly Procedure
The E-STS-O and E-STS-IP67 Outdoor Temperature Sensor includes a water-tight
cable restraint to be applied to the Cat5/5e/6/6a shielded cable to be used to
connect the sensor to an
E-16D/5D/2D and E-SEMS-16(U) unit. To make sure the
connection is water-tight upon completion, follow the steps below.
1. Insert the seal ring into the housing.
2. Strip the CATx shielded cable jacket (6mm-7mm O.D.) approximately ½” and insert the cable through the sealing
nut, screw nut, and housing. (Note: Heat shrink tubing can be applied to cable to increase the O.D. of the CATx
cable to 6mm-7mm.)
strip approx. ½”
housing
screw nut sealing nut
CATx cable
Note: CATx cable
used must be
s
hi
e
l
ded
cab
l
e
.
3. Terminate the CATx shielded cable with an RJ45 connector.
4. Set the RJ45 connector into the housing such that the snap handle is in the notch.
Snap handle

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
