NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
13

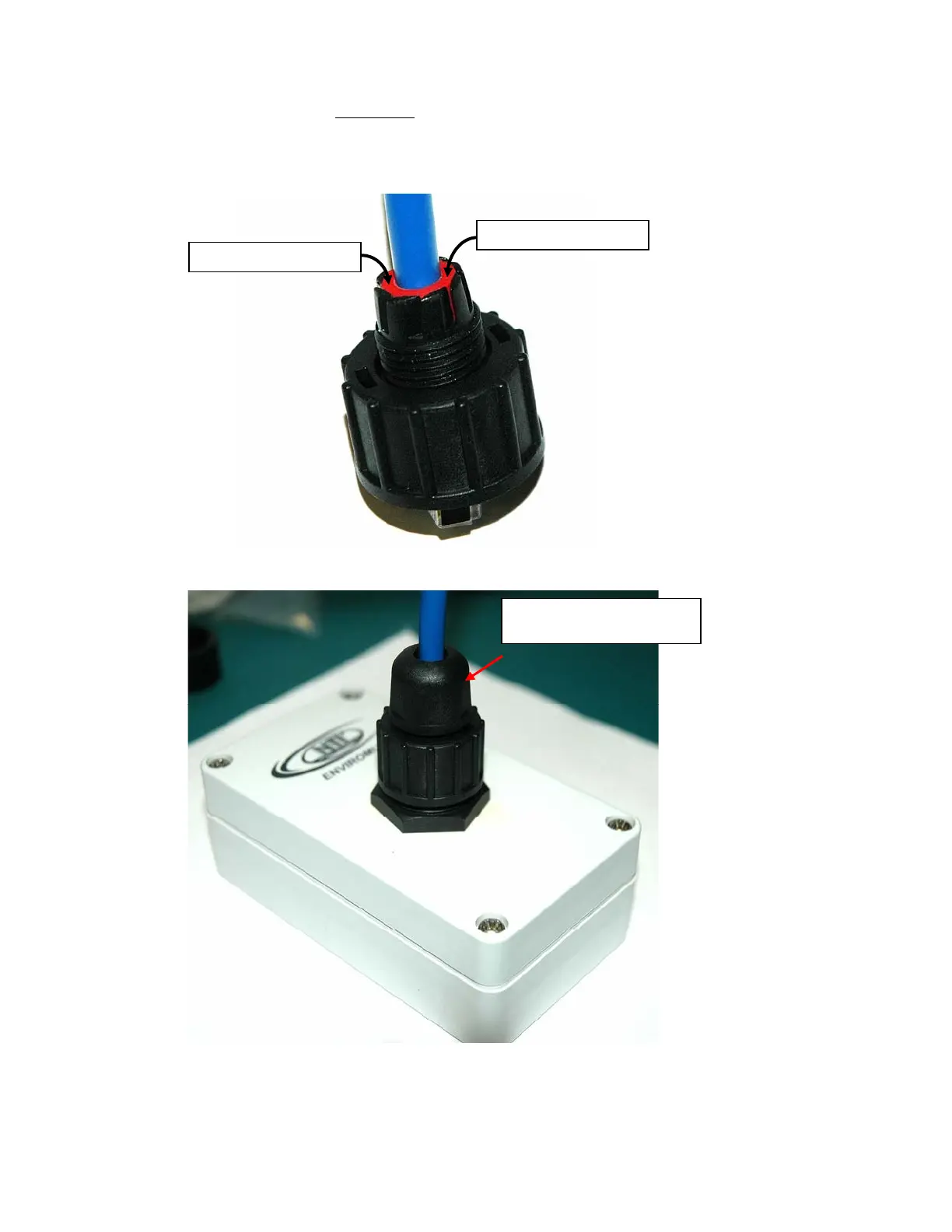

5. Make certain that the seal ring is fully-seated
into the housing.
THIS STEP IS EXTREMELY IMPORTANT TO ENSURE A WATER-TIGHT SEAL!
Seal ring fully-seated
Seal ring fully-seated
6. Plug the assembly into the socket on the E-STS-O and secure the screw nut. Then apply the sealing nut and
securely tighten.
Securely tighten sealing
nut to housin
