NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
5
E-xD firmware version 2.31 or later is required to support this sensor.
E-STHS-LCDW
The E-STHS-LCDW is a temperature/humidity sensor with built-in LCD display that has 2” tall characters for easy viewing from
greater distances.
. It has a temperature range of -4 to 140°F (-20 to 60°C) ±0.7°F (±0.4°C) and will sense 0 to 90% relative
humidity ±4% RH (30°C). It includes two touch-sensitive buttons. One to control the LCD display illumination, and the other to
cycle the display mode between temperature in degrees Fahrenheit, temperature in degrees Celsius, and percentage of humidity.
The E-STHS-LCDW includes slots on the back for hidden mounting hardware and two brackets for alternative mounting from the
sides.
To use the MODE button, touch and release to cycle the display from Degrees F. to Degrees C, and to percentage of Humidity,
and once again to return to Degrees F. The display will hold the mode set, each time, until MODE is touched again.
To use the LIGHT button, touch to illuminate the display for 5 seconds. To keep the display illuminated, touch and hold the
LIGHT button for at least 6 seconds. Touch and release again to have illumination stop after 5 more seconds.

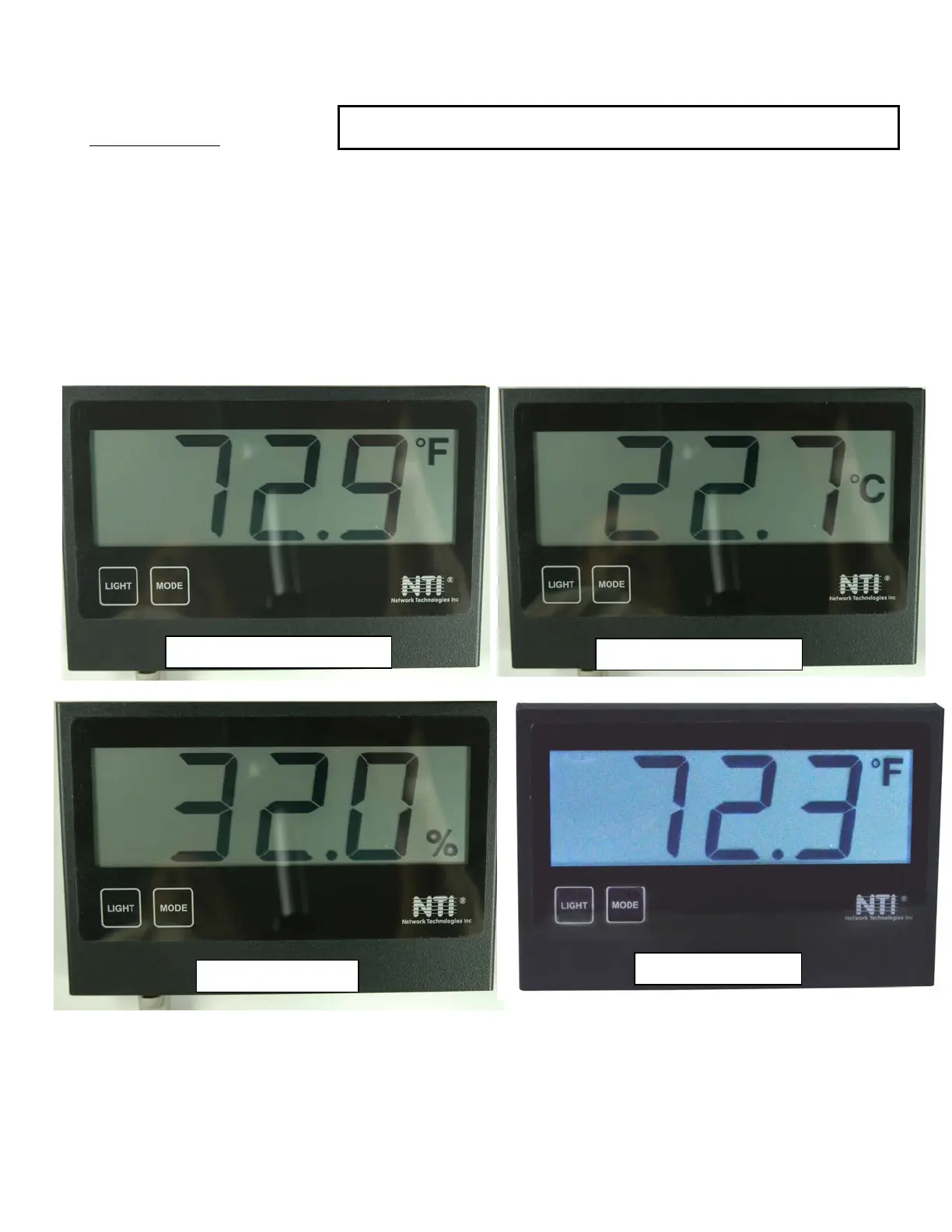

Temperature in Fahrenheit
emperature in Celsius
Relative Humidity
isplay Illuminated
Figure 5- E-STHS-LCDW
To mount the sensor, use the hardware provided to secure the sensor to the wall (see pages 2- 3). Once it is mounted, connect
a CATx cable between the RJ45 connector and the ENVIROMUX monitoring system.
