NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT
If longe
r than 150 foot cable is used, the MODE
button will not function when the backlighting is ON
Note: The CATx cable from the E-STHS-LCDW to the
E-xD cannot exceed 150ft.

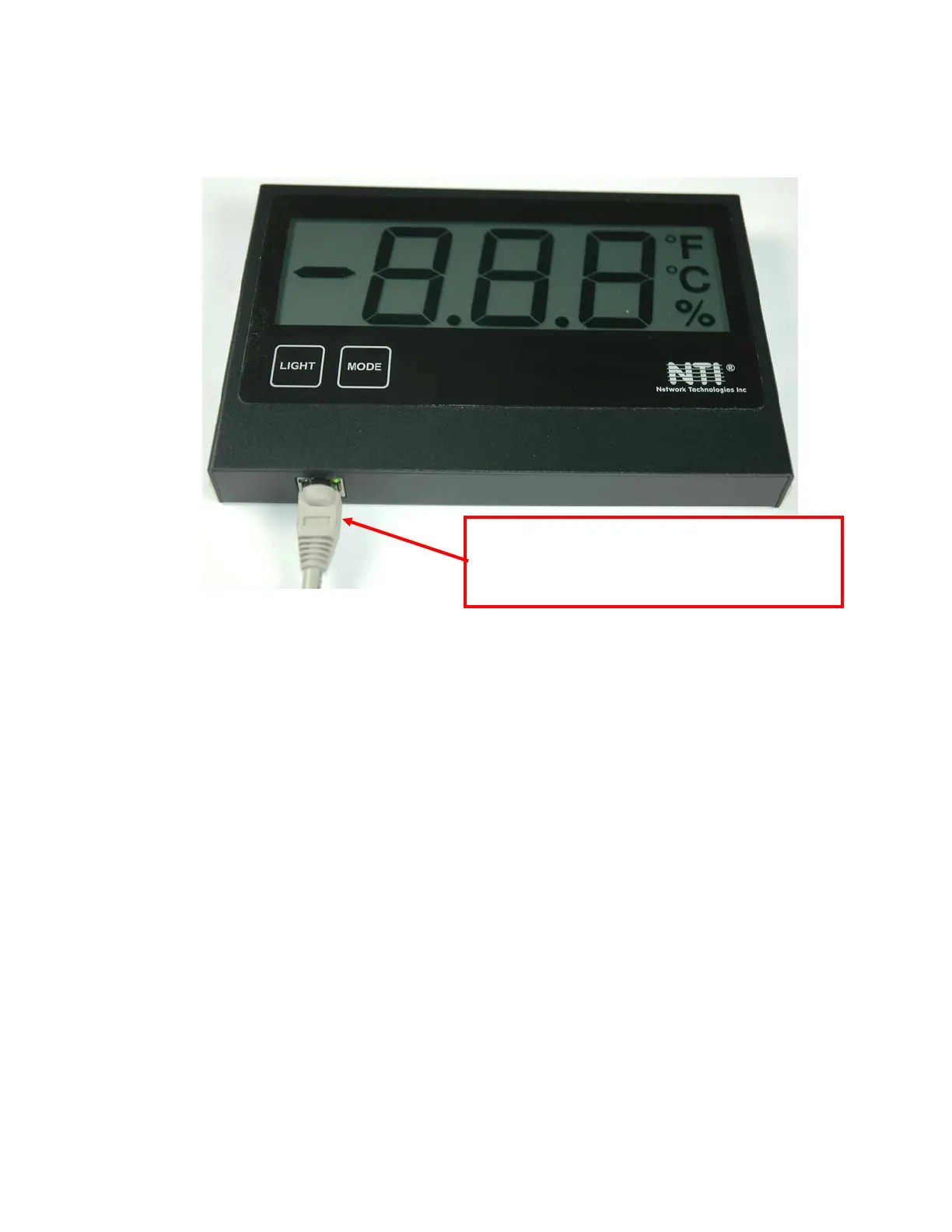

Figure 6- CATx cable connection
The cable from the ENVIROMUX will attach to the sensor at the RJ45 port on the bottom of the E-STHS-LCDW.
The E-STHS-LCDW will be powered by the ENVIROMUX Monitoring System through the CATx cable. We
recommend using CAT5/5e/6/6a cable (minimum 24 AWG) up to 150 ft (45.7 m) long.
Note: If a longer cable is used (up to 1000ft), the MODE button will not work when the display is illuminated by pressing
the LIGHT button.
Alternate Display (E-xD firmware version 3.0 or later required)
The E-STHS-LCDW can be configured to display the sensor readings from other RJ45 sensors or from a Digital Sensor with an
numeric display output (like a Winds Speed sensor (E-WSS), Barometric Pressure Transmitter (E-BPT) or Ultrasonic Level
Transmitter (E-ULT).
When an E-STHS-LCDW is connected, the sensor configuration menu includes a field "Display Option". Within the drop down
menu (see image on next page), all sensors that are eligible to have data displayed in the LED will be available for selection. Only
the LCD display will be effected. The remaining settings will still pertain to the E-STHS portion of the E-STHS-LCDW.
6
