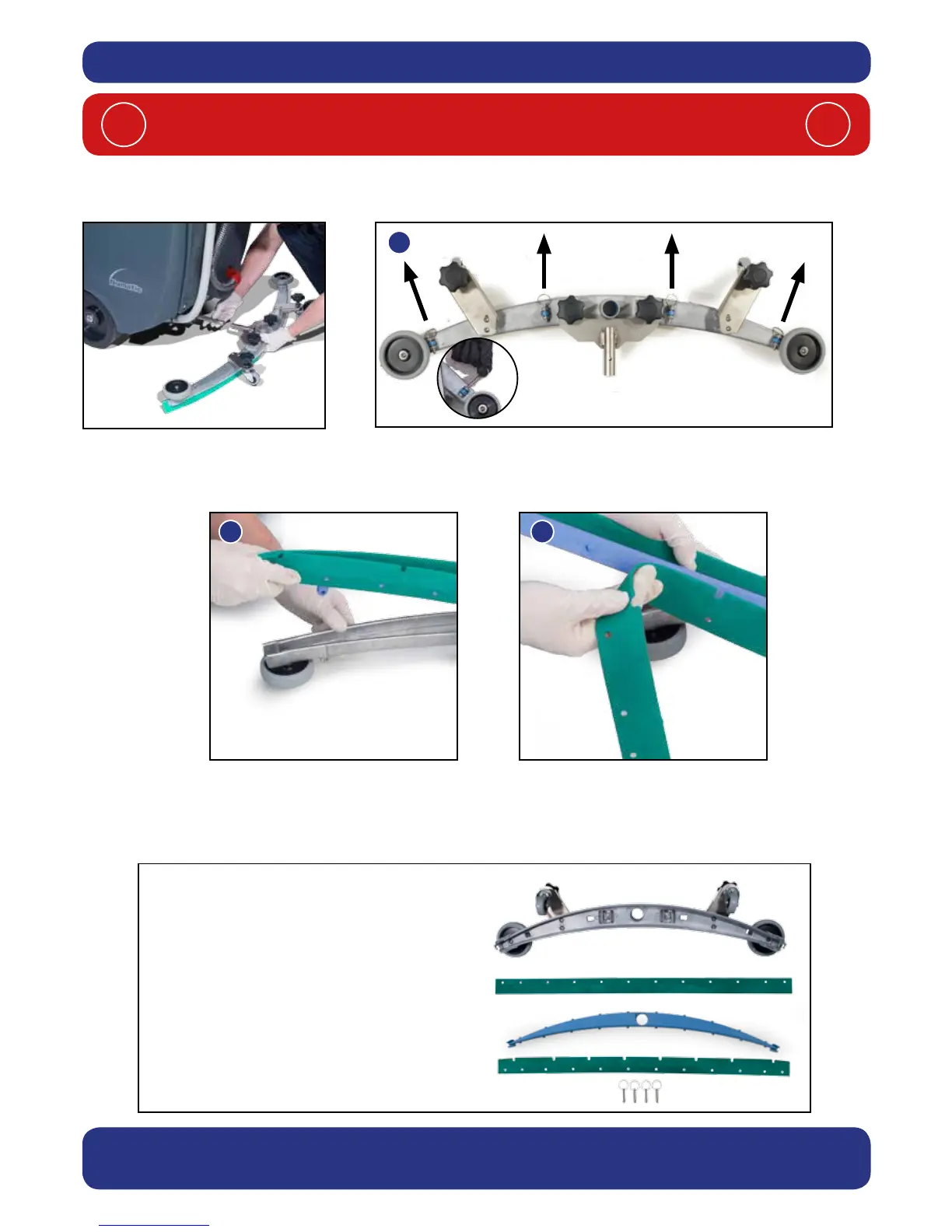

Floor-tool overview
1. Floor-tool main body
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Retaining pins x 4
1
2
3
4
5
Note:
Floor-tool adjusters are factory set for optimal performance.
The blades are designed to be reversible, thus extending their useful working life.
To clean the oor-tool, remove securing-pin and disconnect the lifting strap and remove the oor-tool securing pin pull-free
the oor-tool from the rear of the machine.
Rinse the oor-tool assembly with clean-water and ret.
Periodically the oor-tool blades should be examined and checked for wear and damage.
The blade removal is easy. Simply start by removing the four retaining pins (see Fig.37), turn the oor-tool over and
separate the blade carrier from the body (see Fig.38). Peel away the blades from their locating lugs (see Fig.39) and
examine or renew as required. Replacement is a reversal of the removal process.
The TTV 678 is provided with the aluminium oor-tool shown.
