nVent RAYCHEM Elexant 4010i/4020i User Manual
RAYCHEM-AR-H60624-40X0iOpsManual-EN-1905 nVent.com
|
13

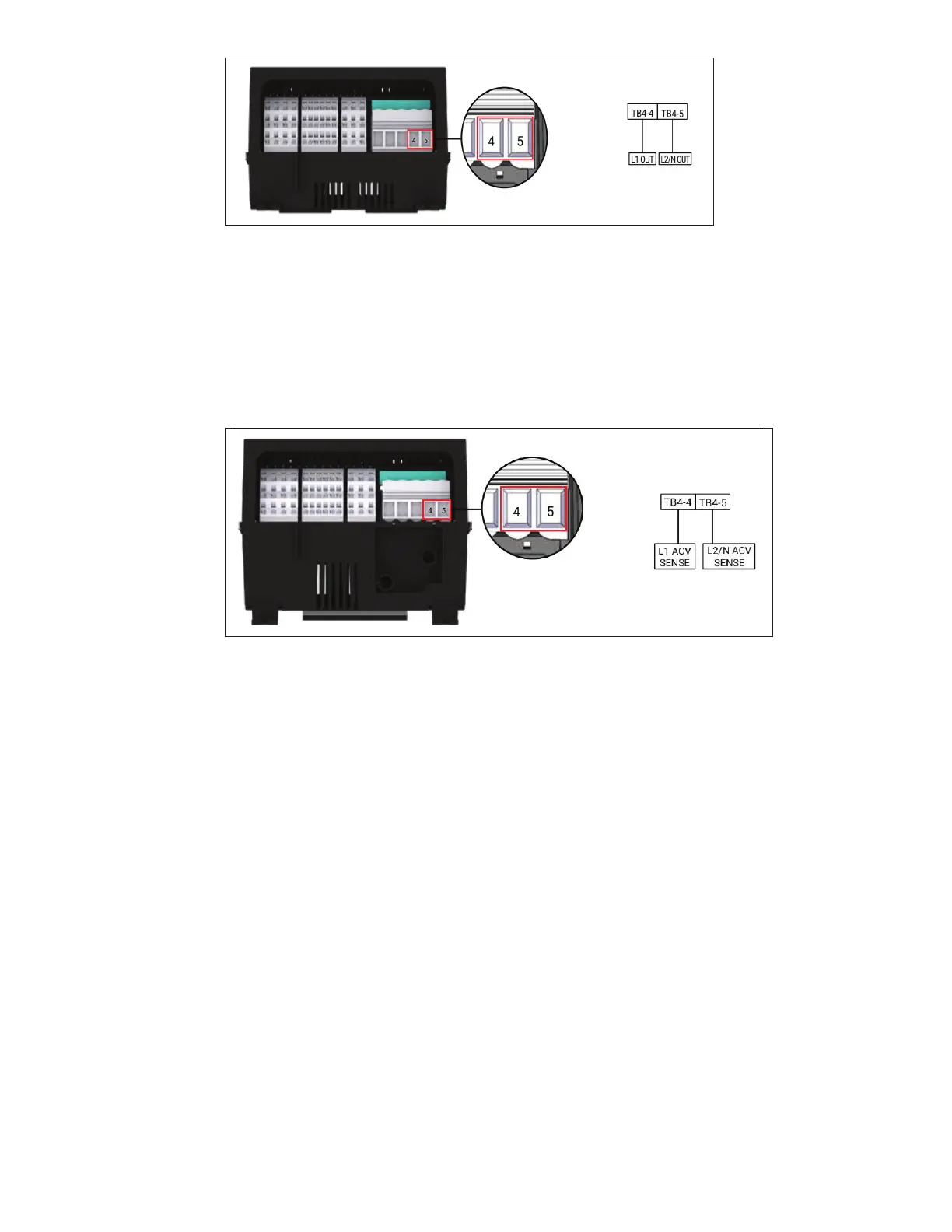

Figure 6 – Elexant 4010i - Load Connections
2.6.3 AC Voltage Sense
This section applies only to Elexant 4020i units.
Figure 7 – Elexant 4020i - AC Voltage Sense
2.6.4 RS-485 IN
RS-485 IN along with RS-485 OUT are used for setting up series RS-485 communications connections
when using multiple controller modules.
Note
and the signal ground of the upstream device. This wiring method will reduce noise induced through
ground potential differences.
To Next Page
