nVent RAYCHEM Elexant 4010i/4020i User Manual
RAYCHEM-AR-H60624-40X0iOpsManual-EN-1905 nVent.com | 54
5.5.1 Control Mode

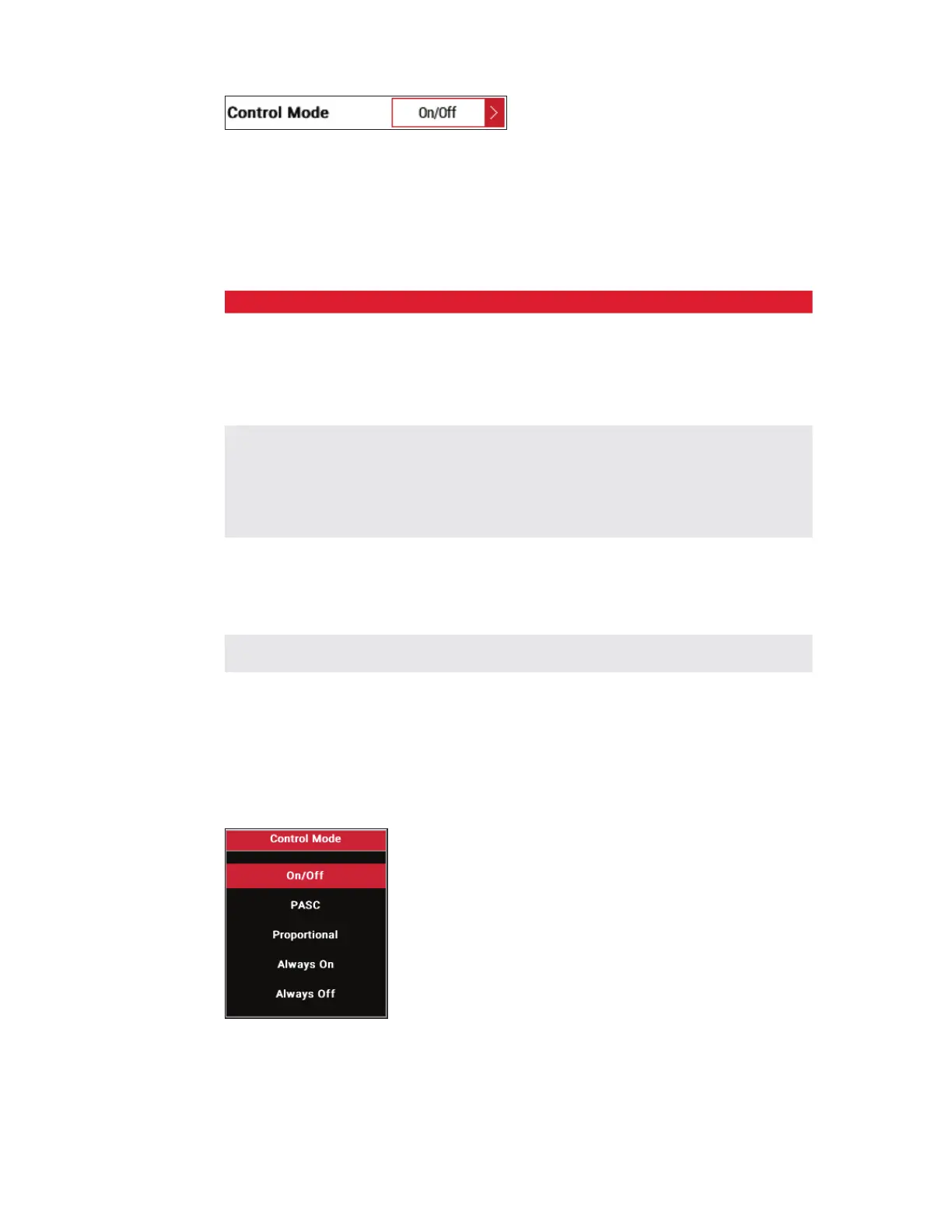

Figure 58 - Control Mode Setting
Purpose:
To set the control mode for the controller.
Options:

Control Mode Description Algorithm Settings
On/Off
In this mode the controller monitors the tem-
perature of the heat trace circuit and compares
it to the Control Setpoint temperature plus the

control temperature is more than the Setpoint

is turned on.

PASC
This proprietary algorithm uses the measured
-

size of the smallest pipe diameter to deter-
mine the optimum duty cycle and cycle period
to maintain the temperature, minimize energy
consumption and prolong the switch life.

Minimum Pipe Diameter
Power Adjust
Proportional
This algorithm constantly monitors the
control sensor temperature and adjusts the
output duty cycle proportionally, whenever the


Contactor Output Type.
Proportional Band
Always On
The output is permanently switched on irre-
spective of the control temperature.
None
Always Off
The output is permanently switched off irre-
spective of the control temperature.
None
Table 18 - Control Modes
Procedure:

Figure 59 - Control Mode
