5.13.1 Safety Limiter Setup
Touch the corresponding Enable
the corresponding Latch

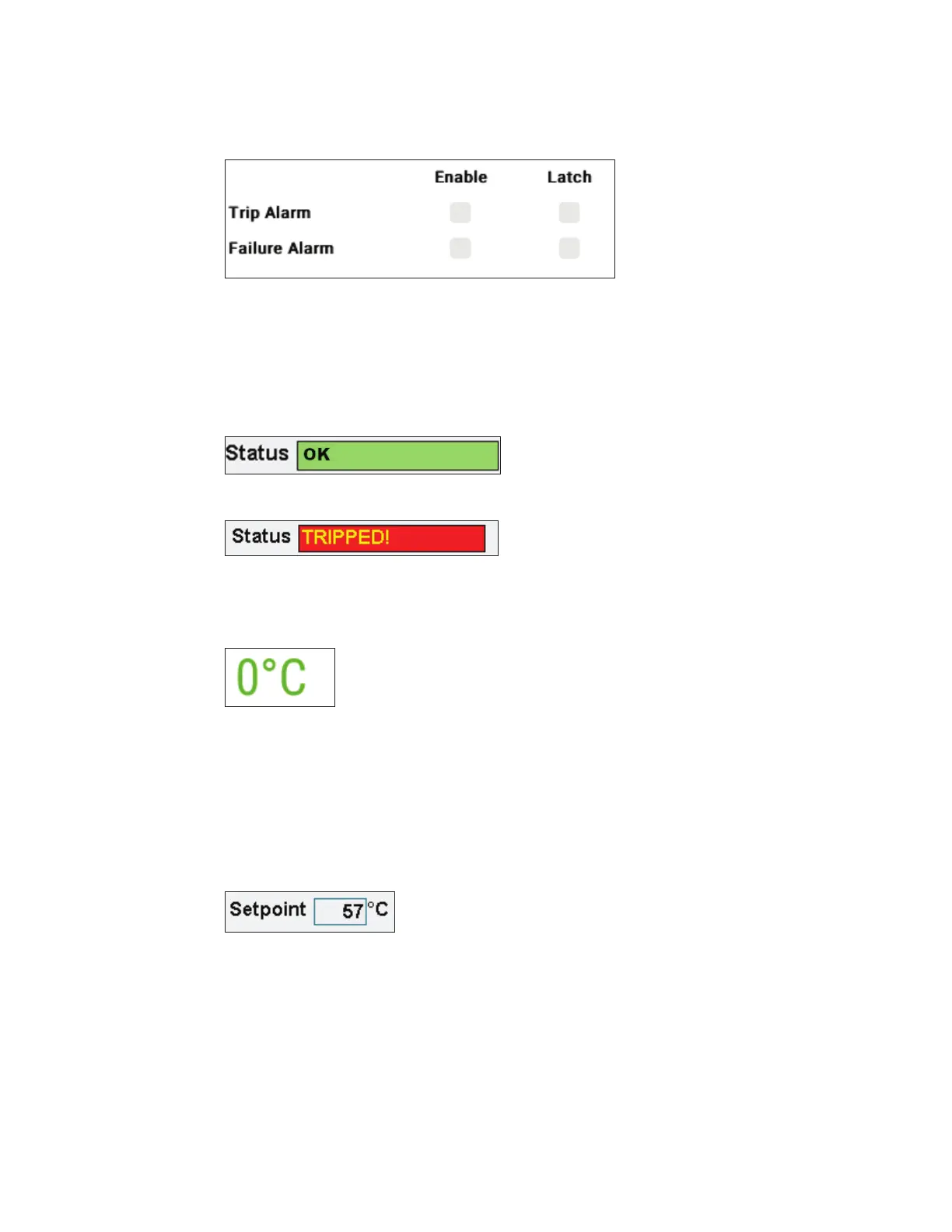

Figure 141 - Safety Limiter Alarm Setup
5.13.1.1 Safety Limiter Status
Purpose:
Values: OK, Tripped.
Figure 142 - Safety Limiter Status – OK
Figure 143 - Safety Limiter Status – Tripped
5.13.1.2 Safety Limiter Temperature
Figure 144 - Actual Temperature Reading
Purpose:
Limiter set point, the Safety Limiter will trip open. In the case where the Safety Limiter has tripped, a
conditions have returned to a safe state.
5.13.1.3 Safety Limiter Temperature Setpoint
Figure 145 - Safety Limiter Temperature Setpoint
Purpose:
in accordance with the Temperature Class of the area in which the heating application is installed or the
maximum surface temperature allowed for the heating device, whichever is less.
Default: 50°C
Range: 50 to 600°C
To Next Page
