5.8 Electrical Settings
5.8.1 Trace Current

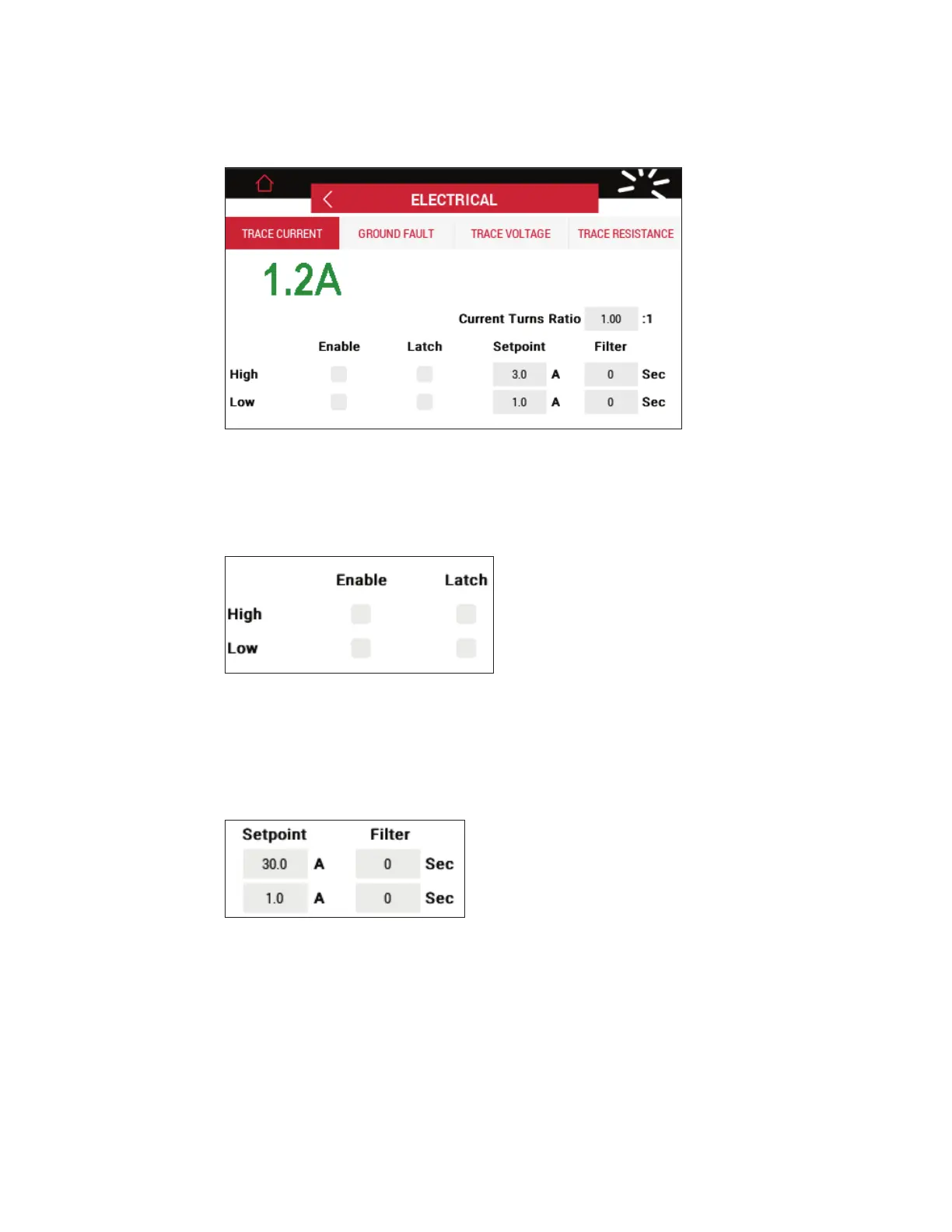

Figure 101 - Trace Current Settings for 1-Phase Heat Trace Circuit
This page displays the live value of the Trace Current associated with a heat trace circuit.
5.8.1.1 High/Low Trace Current Alarm Settings
Figure 102 - High/Low Trace Current Alarm Settings
Procedure:
Touch an EnableLatch
 Latch
manually reset each time the corresponding alarm occurs.
Figure 103 - High/Low Trace Current Setpoint & Filter Settings
Filter
the controller will only trigger an alarm if the corresponding High/Low alarm condition is present for the
-

