5.12.1 Modbus
5.12.2 RS-485
PC running RAYCHEM Supervisor.
Variable Description Default Range/Options
Address 1 1 to 247
Baud
The data rate at which communications occur on the
serial network.
9600
9600, 19200, 38400,
57600
Parity
three serial communications ports.
None None, Odd, Even
Stop Bits
three serial communications ports.
1 1, 2
Transmit
Delay
Sets the time the controller will wait after it receives a
20 0 to 5000 msec
Table 30 - RS-485 Settings
5.12.3 Ethernet

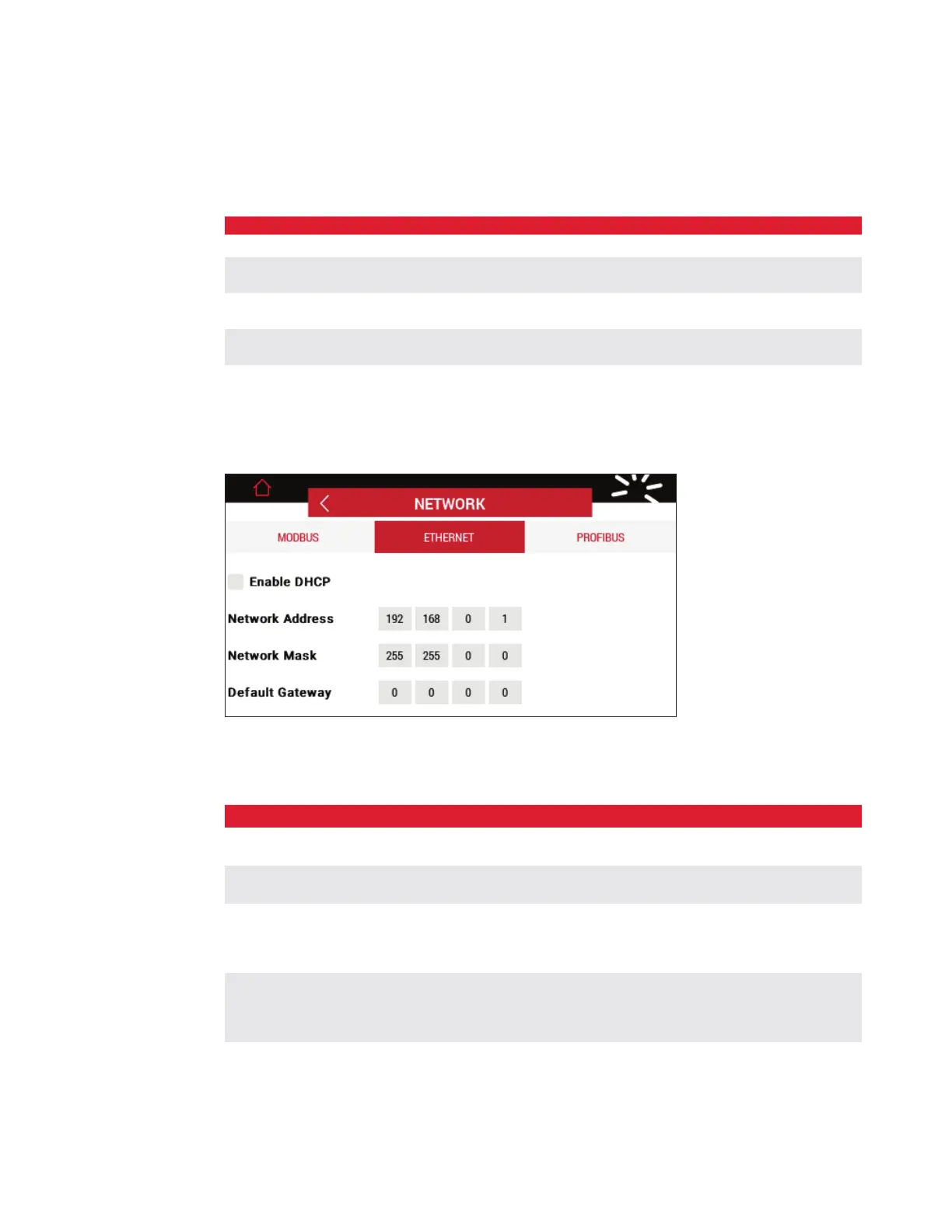

Figure 138 - Ethernet Settings
TOUCH 1500, or a PC running RAYCHEM Supervisor using an Ethernet connection.
Variable Description Default Range/Options
Allows the unit to use Dynamic
Network Address
Ethernet port
192.168.1.100
0 to 255 for each address
Network Mask
network address and divides it
into network address and host
address.
255.255.255.0
Default Gateway
Serves as the forwarding host to
other networks when no other
destination IP address.
192.168.1.1
Table 31 - Ethernet Settings
