5.8.3.1 High/Low Trace Voltage Alarm Settings
Procedure:

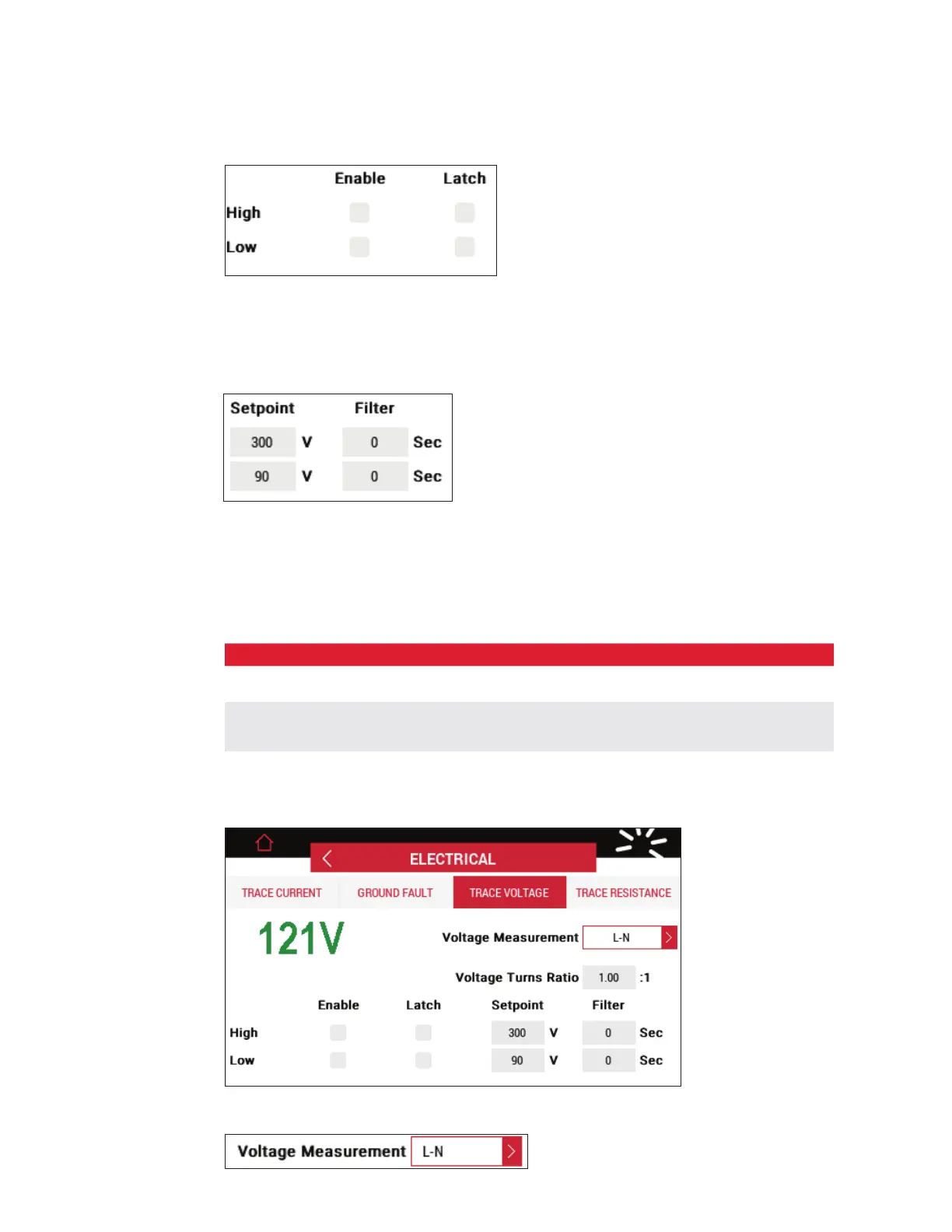

Figure 112 - High/Low Trace Voltage Settings
Touch the corresponding Enable
the corresponding Latch
Figure 113 - High/Low Trace Voltage Setpoint & Filter Settings
Filter:
unit only triggers an alarm if the corresponding High/Low alarm condition is present for the duration of
Value Description Default Value Range
Trace Voltage High -
Setpoint
300 V 80 V to 300 V
Trace Voltage Low -
Setpoint
-
setpoint.
90 V 80 V to 300 V
Table 26 - High/Low Trace Voltage Alarm Settings
Figure 114 – 3 Phase Trace Voltage Page
