nVent RAYCHEM Elexant 4010i/4020i User Manual
RAYCHEM-AR-H60624-40X0iOpsManual-EN-1905 nVent.com | 61
5.6.3.2 C.B Rating (Circuit Breaker Rating)

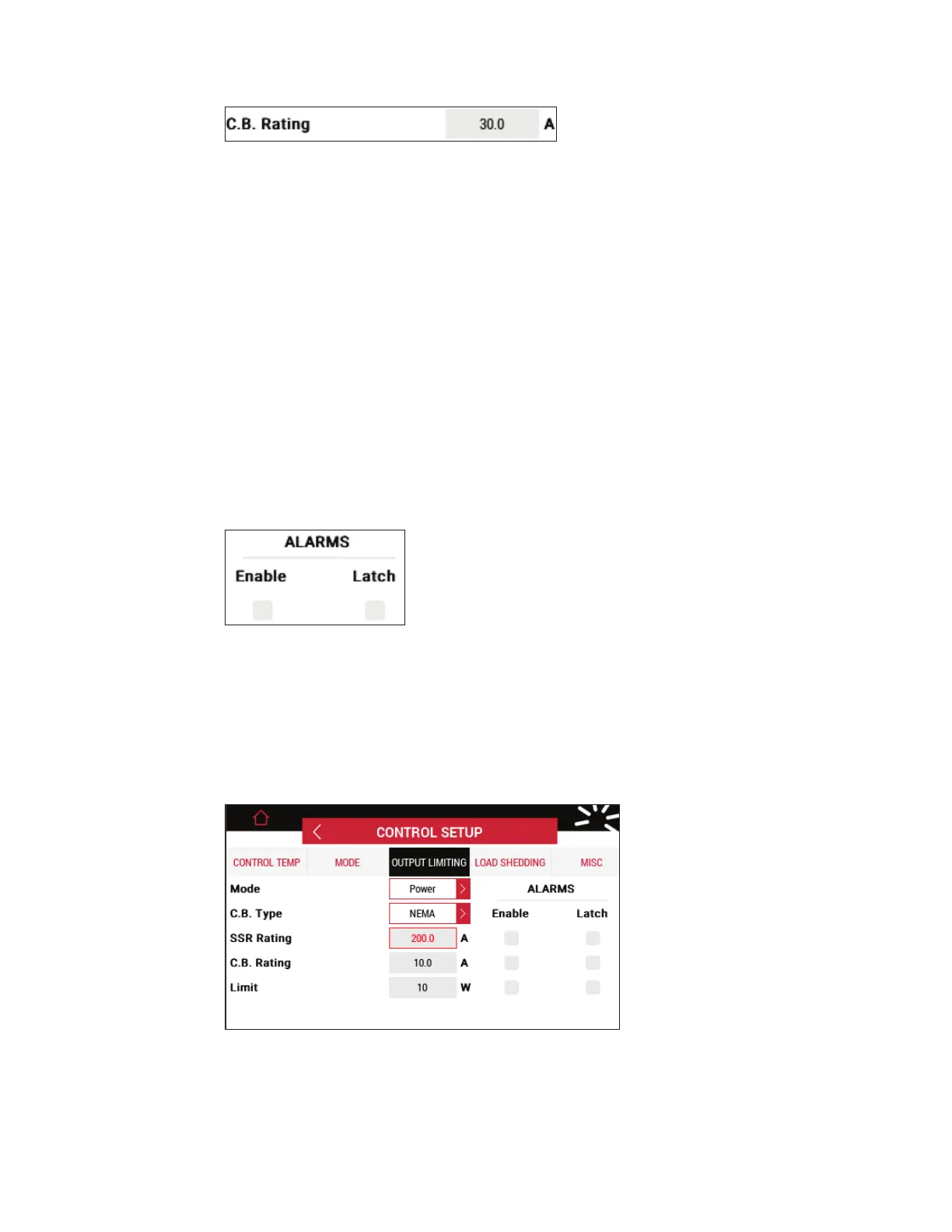

Figure 75 – C.B Rating Setting
Purpose:
The Circuit Breaker Rating setting helps prevent in-rush induced nuisance tripping 
immediately upstream of the controller. 

Range: 1.0 A to 100.0 A for Current Turns Ratio 1:1
Default: 30.0 A
IMPORTANT:


Procedure:

Touch the EnableLatch 


Figure 76 – C.B Limiting Alarm Settings
5.6.4 Turns Ratio Dependent Settings

red, its setting is invalid. The user must adjust its setting within the correct range and verify the Current
/ Voltage Turns Ratio settings in the ELECTRICAL page. See Current /Voltage Turns Ratio in Section
5.8.1.2 and 5.8.3.2 for more details.
Figure 77 - Invalid SSR rating
