nvent RAYCHEM T2000 User Manual
4
of 1
of 1 rating
81 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
nVent.com
|
65
B.

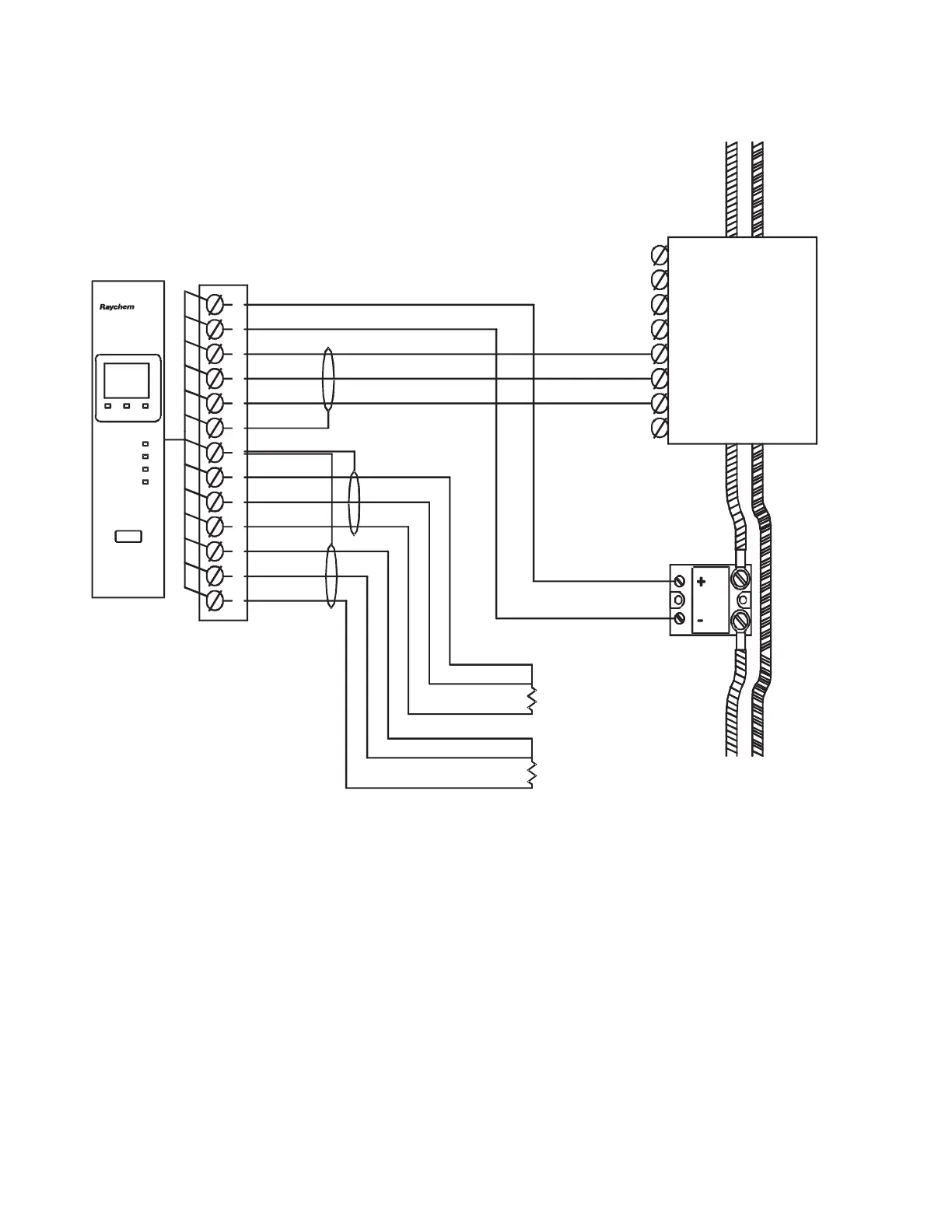

2 CONTROL MODULE
/
CT
2000-HAZ SINGLE
POLE SSR WIRING
DIAGRAM
RTD1
100 Ohm
Platinum
DIN 43760
CURRENT
SETPT
OUTPUT
ALARM
RECEIVE
TRANSMIT
ADDRESS
CM 2000+
F
C
CONTROL MODULE
TEMP
CT 2000-HAZ
CT
MODULE
TO
TRACING
UNUSED
UNUSED
LOAD CT
CT COMMON
GFI CT
UNUSED
UNUSED
SSR
FROM
DISTRIBUTION PANEL
7
6
5
4
3
2
13
9
10
12
RTD1
100 Ohm
Platinum
DIN 43760
UNUSED
11
RTD SHIELD
RTD1 SOURCE
1
8
7
6
5
4
3
2
1
RTD2 SOURCE
RTD2 SENSE
RTD2 COMMON
RTD1 COMMON
CONTROL +
CONTROL -
CURRENT CT
CT COMMON
GFI CT
CT SHIELD
RTD1 SENSE
8
D794-012
T
2000
64
66
Table of Contents
Table of Contents
2
Certification
4
Conducted and Radiated Emissions-FCC/DOC Statement of Compliance
4
General Instructions
4
Introduction
4
Limited Warranty
4
Important Warnings and Notes
5
Technical Support
5
Section 1 Overview
6
Introduction
6
External Programming Devices
8
Control Module Overview
9
AC 2000+ Card Overview
11
Component Ordering Guide
12
Section 2 Installation and Wiring
15
Introduction
15
Initial Inspection
15
Operating Environment
15
Installation Location
15
Mounting Procedures
15
Wiring
17
Initial Power up
18
Section 3 Control Module Programming and Configuration
19
Introduction and Initial Power-Up
19
Front Panel Features
19
Displayed Alarm Indicators
21
Point Setup Parameters
24
Alarm Settings
32
Section 4 Control Module Monitored Parameter Details
40
Introduction
40
Analog Readings
40
Maintenance Data
41
Section 5 Control Module Control Modes
43
Introduction
43
Switch Control Modes
43
Load Shedding Control Mode
45
Ambient Temperature Control (ATC) Mode
46
Section 6 Control Module Troubleshooting
47
Operator Checks
47
Common Problem Areas
47
Common Alarms-What to Look for
50
Section 7 AC 2000+ Programming and Configuration
53
Introduction
53
Initial Configuration
53
Input/Output Ports
54
Operational Configuration
56
Remote Data Access
58
AC 2000+ Alarms - What to Look for
59
Section 8 Maintenance
60
Operator Maintenance
60
Replaceable Parts
60
Appendix A Specifications
61
Appendix B RAYCHEM T2000 HTC Component Wiring Diagrams
64
Control Module / CT 2000 Contactor Wiring Diagram
64
Control Module / CT 2000-HAZ Single Pole SSR Wiring Diagram
65
Control Module / CT 2000-HAZ Two Pole SSR Wiring Diagram
66
AC 2000 Alarm / Communications Interface Card Wiring Diagram
67
B.5 AC 2000+ Alarm Communications Interface Card Wiring Diagram
68
AC 2000+ Local Port RS-232 Connections
69
External Alarm and Warning Relay Connections
69
CR 2000 Card Rack Terminal Assignments
70
CR 2000 Rev. a Card Rack Terminal Assignments
71
CR 2000+ Card Rack Terminal Assignments
72
Appendix C Label Details
73
Appendix D Card Rack Dimensions
74
Appendix E Load Shedding Operations
75
Ac 2000+ Load Shedding Sequence
75
Control Module Load Shedding Sequence
76
Appendix F 100 W PLATINUM RTD Table
77
Appendix G Factory Default / Configuration Sheets
78
CM 2000 Control Module V2.35 Configuration Sheet
78
CM 2000+ Control Module V3.1X Configuration Sheet
79
