1.5.3 ADDITIONAL DOCUMENTATION
In addition to this manual, details of the Modbus protocol mapping for the AC 2000+ may be
found in the Group Communications Controller: Modbus Protocol Interface – Linear Mapping
and the Group Communications Controller: Modbus Protocol Interface – Page Mapping
documents. This information will be required to properly communicate with and operate the
AC 2000+ using a remote personal computer, process computer, or some other form of host
computer system.
The Communication Controller Configuration Utility, Installation and Operating Instructions
document will provide information on how to set up various communication parameters
required by the AC 2000+ alarm/communications interface card using the “Communication
Controller Con-figuration Utility” program.
1.5.4 SUPPORT
Application assistance is available from nVent for questions specific to the operation of the AC
2000+ hardware and software or its use in conjunction with the CM 2000 and the CM 2000+
control modules.
1.6 COMPONENT ORDERING GUIDE
The T2000 system consists of the following components:
• CR 2000+ Card Rack (can accommodate one AC 2000+ and p to 10 CM 2000+’s)
• AC 2000+ Alarm/Communications Interface
• CM 2000+ Control Module
• CT 2000 CT Module
• Switching Device (Solid-state Relay or contactor)

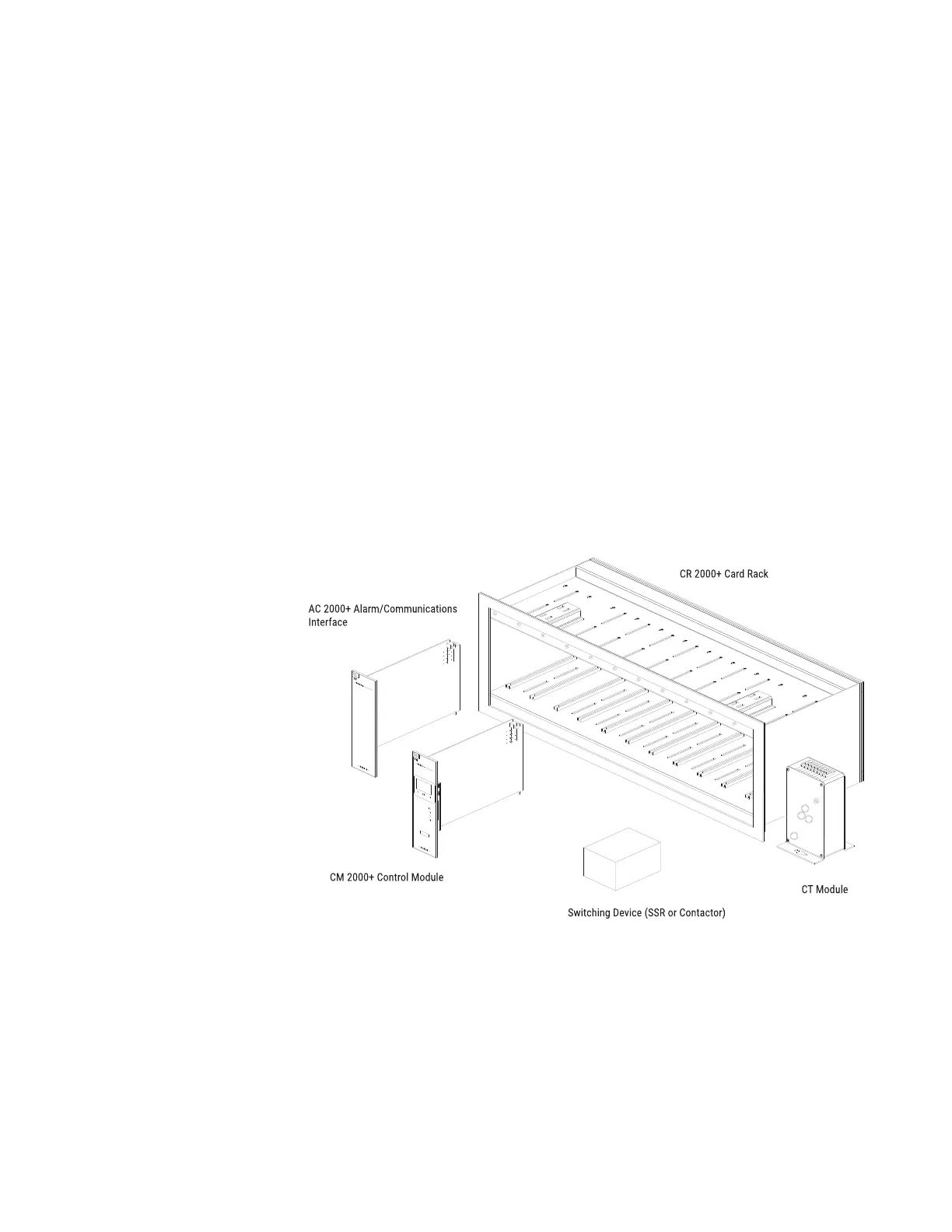

Figure 1.1 RAYCHEM T2000 System Components
