Chapter 1
Introduction
The i.MX RT685 Evaluation Board (part number MIMXRT685-EVK) is designed for customers to evaluate the i.MX RT685 MCU.
It can be used with a range of development tools, including NXP’s MCUXpresso IDE. This User Manual describes Revision E of
the board with B0 silicon.
The EVK is subject to changes in future revisions.
NOTE

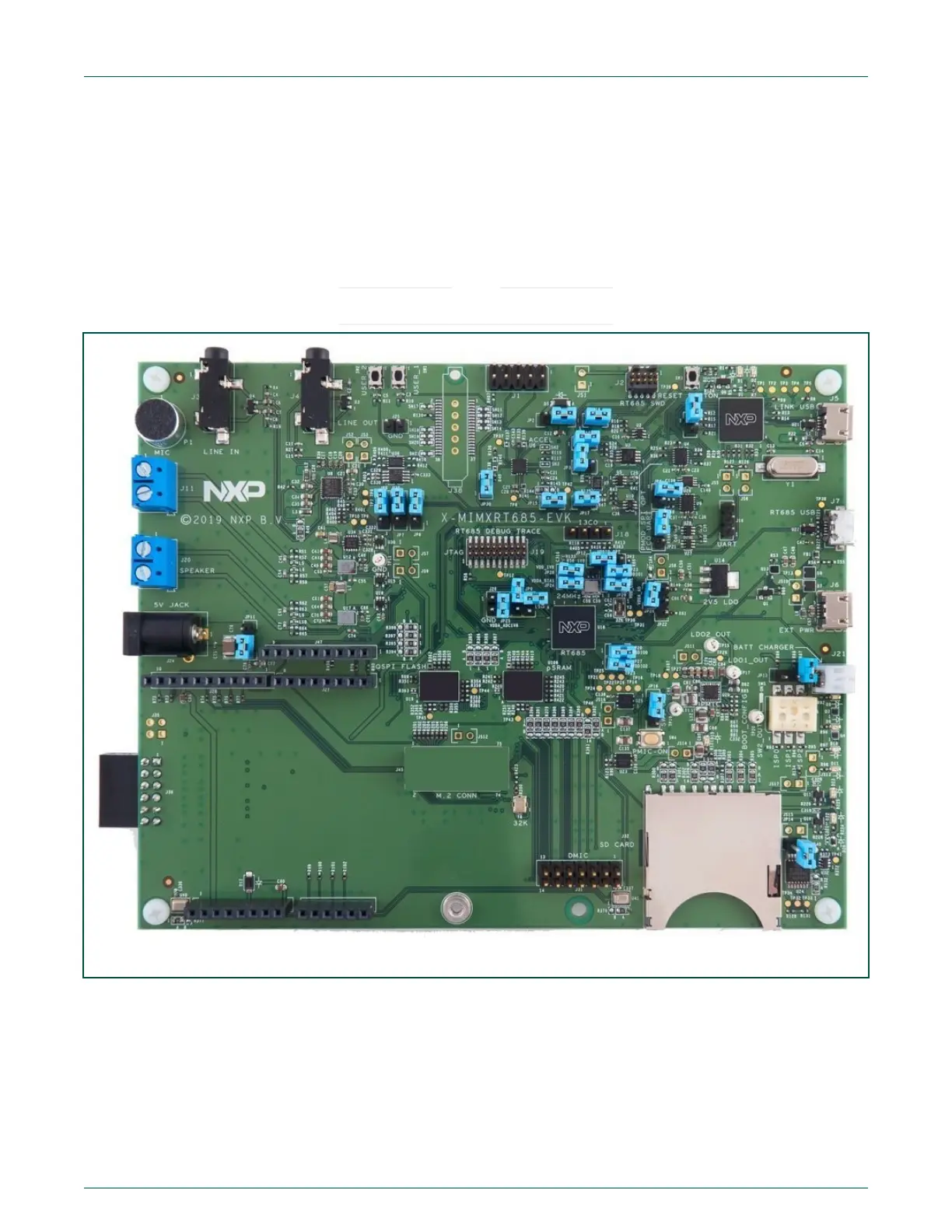

Figure 1. i.MX RT685 board
The i.MX RT685 EVK includes the following features:
i.MX RT685 Cortex-M33 core processor with Cadence Xtensa HiFi4 DSP
Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP protocol (supporting Cortex M33 debug only)
High speed USB port with micro A/B connector for the host or device functionality
UART, I2C and SPI port bridging from i.MX RT685 target to USB via the on-board debug probe
Optional external debug probe connections with trace option (10 or 20 pin Cortex-M connectors, later required for trace)
NXP Semiconductors
i.MX RT685 Evaluation Board, Rev. 0, March 20 2020
User's Guide 3 / 31
