MPC5777C EVB User Guide, Rev. 1
1.1 Modular Concept
For maximum flexibility and simplicity, the EVB has been designed as a modular development platform.
The EVB main board does not contain an MCU. Instead, the MCU is fitted to an MCU daughter card
(occasionally referred to as an adapter board). This approach means that the same EVB platform can be
used for multiple packages and MCU derivatives within the MPC57xx family. High density connectors
provide the interface between the EVB and MCU daughter cards as shown Figure 1 See Section 4&5, “
Configuration — MPC5777C-516DS Daughter card” for more details on the daughter cards and Section
6, “Board Interface Connector” for more details on the interface connectors.

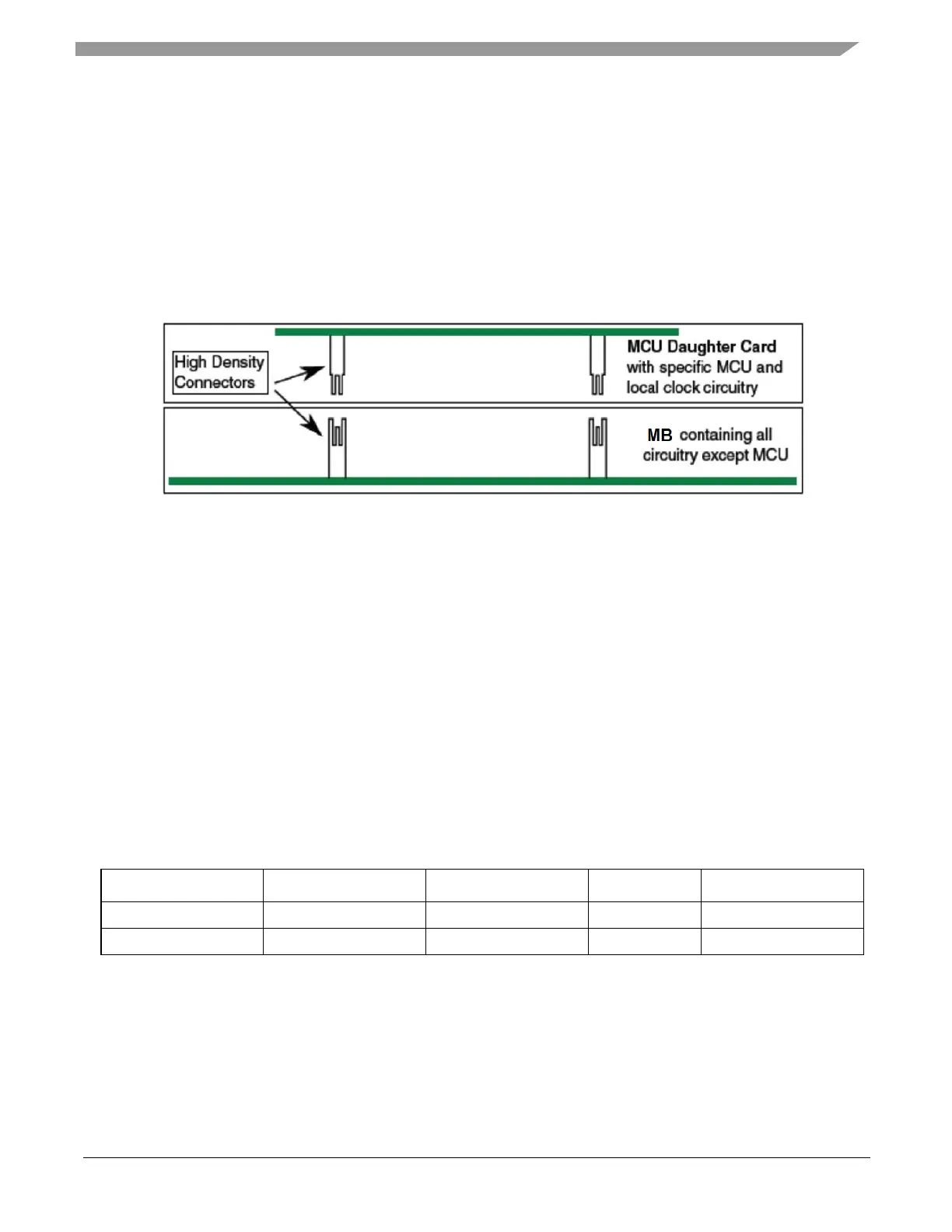

Figure 1: Modular concept – Mother Board (MB) and MCU daughter card
Please consult the MPC57xx website at www.nxp.com or speak to your NXP representative for more
details on the availability of MCU daughter cards.
The EVB is designed to be used with the motherboard and standalone configurations
NOTE
For details on your specific daughter card, please consult the instructions
included with the daughter card.
1.2 Daughter Card Availability
A number of compatible daughter cards are available for the motherboard across a number of devices.
Table 1 gives an overview of daughter cards that can be used with MPC57xx motherboard (Part Number:
MPC57XXXMB) and associated MPC5777C devices, package sizes and part numbers.
Table 1: Daughter Card Overview
All daughter cards will be similar in design and concept. For details on the daughter cards please refer to
Section 4&5, “Configuration — MPC5777C-416DS Daughter card,
Configuration — MPC5777C-516DS Daughter card”.
