MPC5777C EVB User Guide, Rev. 1
25 NXP Semiconductors

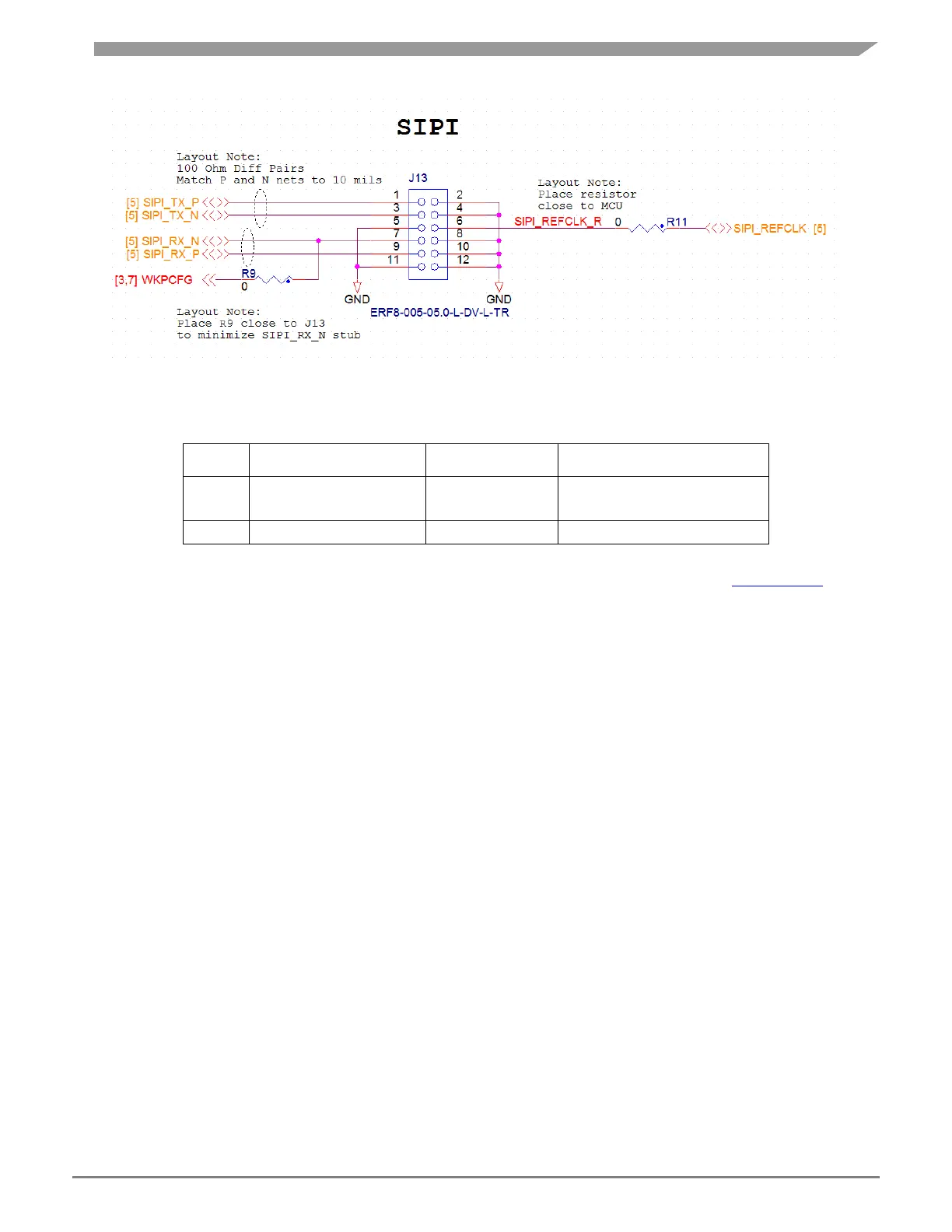

Figure 19: SIPI Interface connections Figure 19
The connector used in the daughter card and its mating Zipwire cable is detailed in Table 16.
Table 16:
Connector and its mating Cable Details
Reference: For more information about the ZIP wire Interface is available at www.nxp.com
Application Note AN5134 “Introduction to the Zipwire Interface”.
CAUTION
Zipwire is intended to be used between two devices on the same printed
circuit board. This connector and cable is only intended for evaluation of
products and not for actual customer implementations.
4.9 MCU Interfaces with Mother Board
The Signals interfaces from the MCU are connected with High Density connecter which connects
with Mother Board for user access. Following interfaces can be access in the Mother Board
through 0.1inch pitch 18-pin Headers,
• ADC channels
• Enhanced Modular IO Subsystem (eMIOS)
• Enhanced Time Processing Unit (eTPU)
• Deserial Serial Peripheral Interface (DSPI)
4.10 Test points — 416 Daughter Card
MPC5777C-416DS Daughter card test points are listed and detailed in
Table 17.
