MPC5777C EVB User Guide, Rev. 1
28 NXP Semiconductors

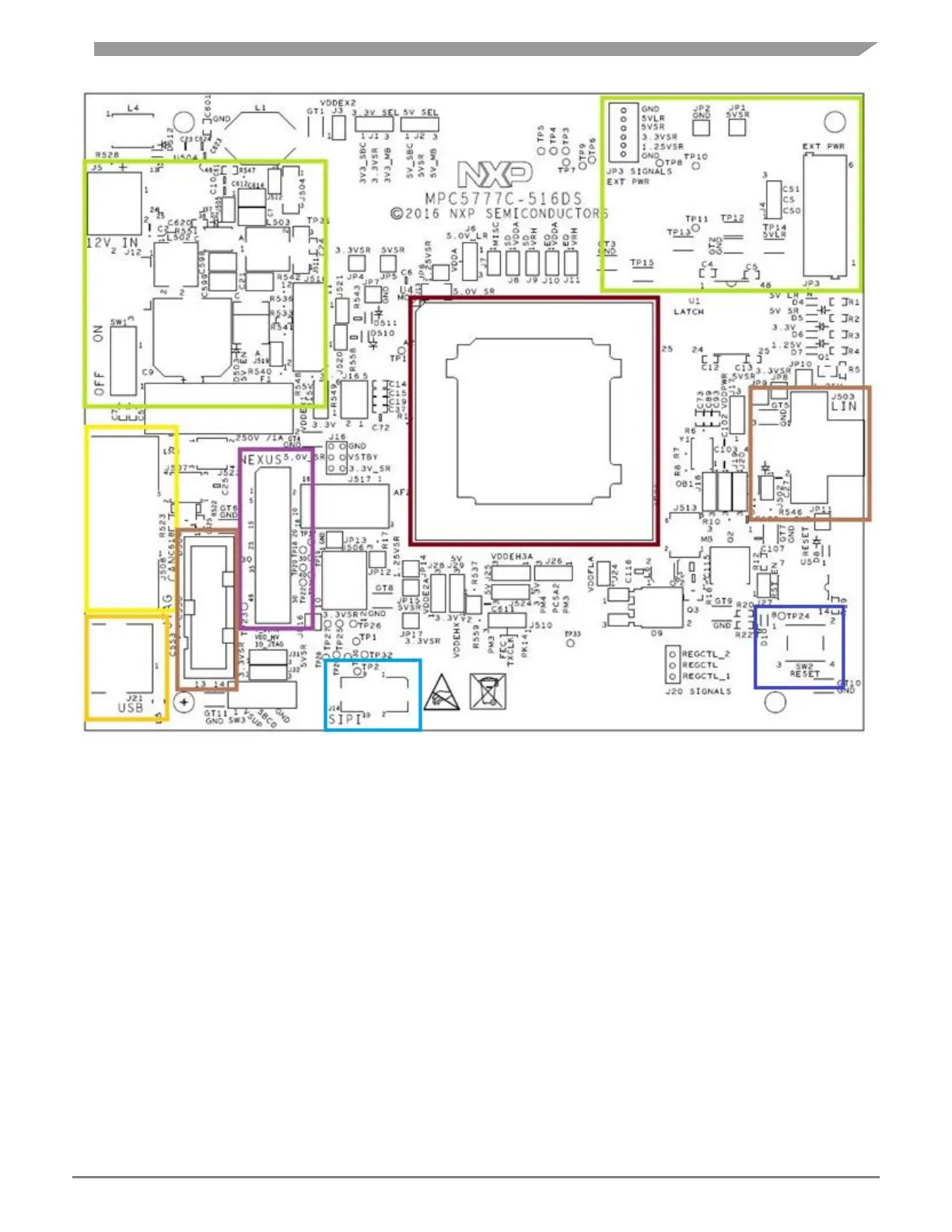

Figure 20:
MPC5777C-516DS Daughter card — functional blocks
5.1 MCU Power
5.1.1 Supply Routing and Jumpers
The different MCU supplies are connected to the regulators on the Mother Board through the
interface connector. Also daughter card has option to connect MCU supplies to either Mother Board
supplies or onboard regulators.
The connection of any power domain to a regulator has to be enabled by a dedicated jumper as
described in Table 18.
Jumper options to achieve the above power supply modes:
