Board Interface Connector
MPC5777C EVB User Guide, Rev. 1
14 NXP Semiconductors

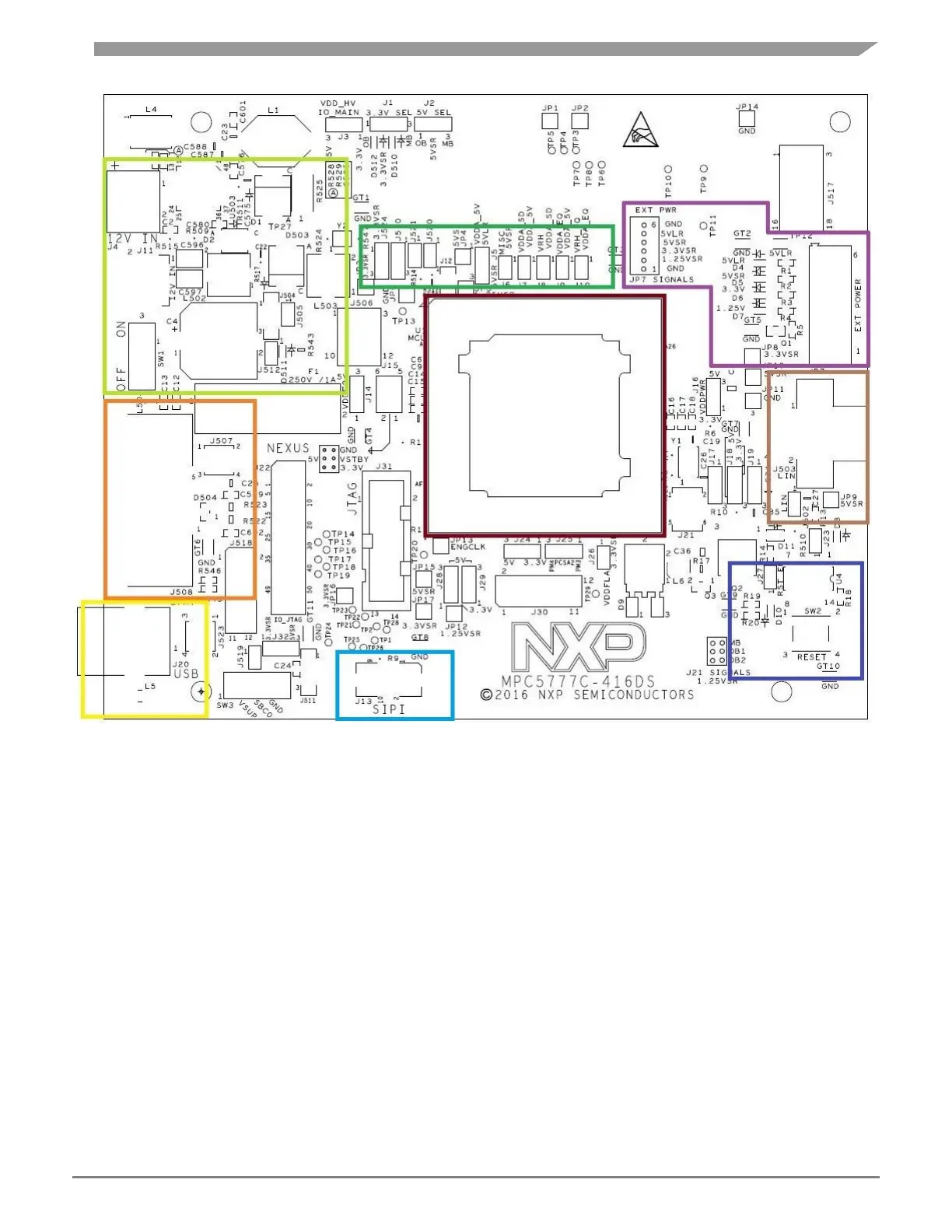

Figure 10:
MPC5777C-416DS Daughter card — functional blocks
4.1 MCU Power
4.1.1 Supply Routing and Jumpers
The different MCU supplies are connected to the regulators on the Mother Board through the
interface connector. Also daughter card has option to connect MCU supplies to either Mother Board
supplies or onboard regulators. Figure 11 shows how the MCU power domains are connected to the
regulators.
