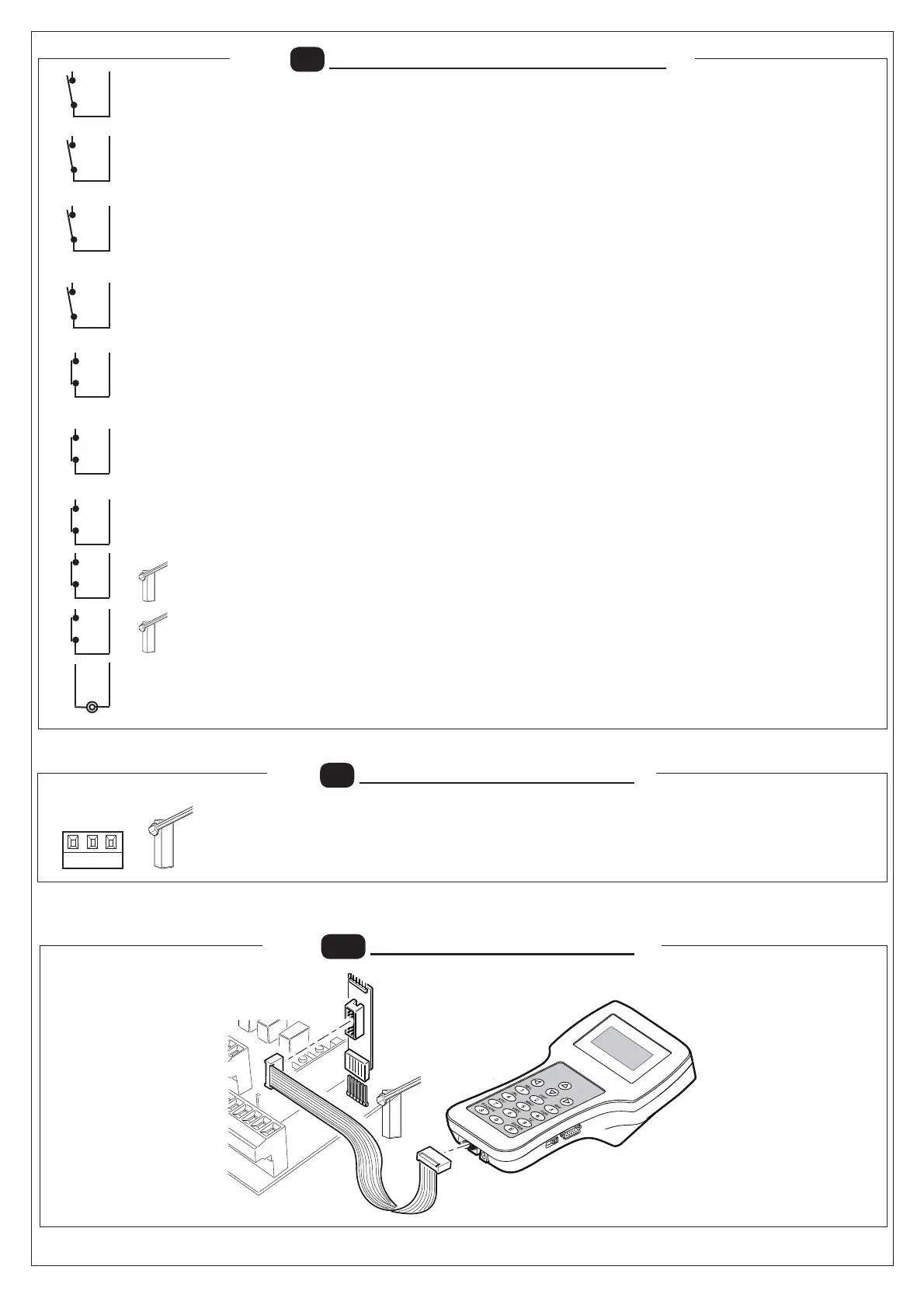

- 18 -
5.4
J6
ANTENNA/INPUTS TERMINAL BLOCK
5.5
J7
REVERSER TERMINAL BLOCK
5.6
J10
PROGRAMMER CONNECTOR
START
N.O. input for controlling the automation according to the open, stop, close, open logic.
PDM INPUT
Programmable input-level 3.
The signal can be repeated on an output confi gured to have a power contact
OPEN
N.O. input - opening only.
By keeping this input controlled, the automation performs the opening manoeuvre and will close automatically only when
the input is freed. Connect clocks, daily timers or weekly timers here if wanted.
CLOSE
N.O. input for closing. It allows the automation to be closed only if the safety devices have not triggered.
Operating mode programmable with parameter -level -3.
FTC
N.C. safety input (photocell). Enter the programme wanted by programming the -level-1 parameter. It triggers only in
the closing phase; it never triggers in opening.
STOP
N.C. safety input. When activated it stops the automation instantly and a subsequent start always cause reopening. During
pause time (PAUSE trimmer) a stop command disables automatic reclosing, leaving the bar open waiting for commands.
NOTE: The hatch microswitch is already connected to this input and it is possible to connect the pushed bar kit as well
as an accessory.
8k2
NOT ACTIVE
FCA
Limit switch N.C. input in opening. When activated the opening travel fi nishes.
FCC
Limit switch N.C. input in closing. When activated the closing travel fi nishes.
ANTENNA
Antenna connection for the integrated receiver
REVERSER INPUT
It is supplied already wired and tested. The device triggers only in the closing manoeuvre, when the arm hits
an obstacle. Enter the programme wanted by programming the -level-1 parameter.
SGN
COM
12V
FTC
COM
STOP
COM
8k2
COM
FCA
COM
FCC
COM
START
COM
PDM
COM
OPEN
COM
CLOSE
COM
SHIELD
ANT
