O&O CSB-XT - 9 Controlled Entry and Automatic Exit

- 26 -
1600
2000
2000
4000
S2
S1
1000
S2
S1
S2
S1
S2
S1

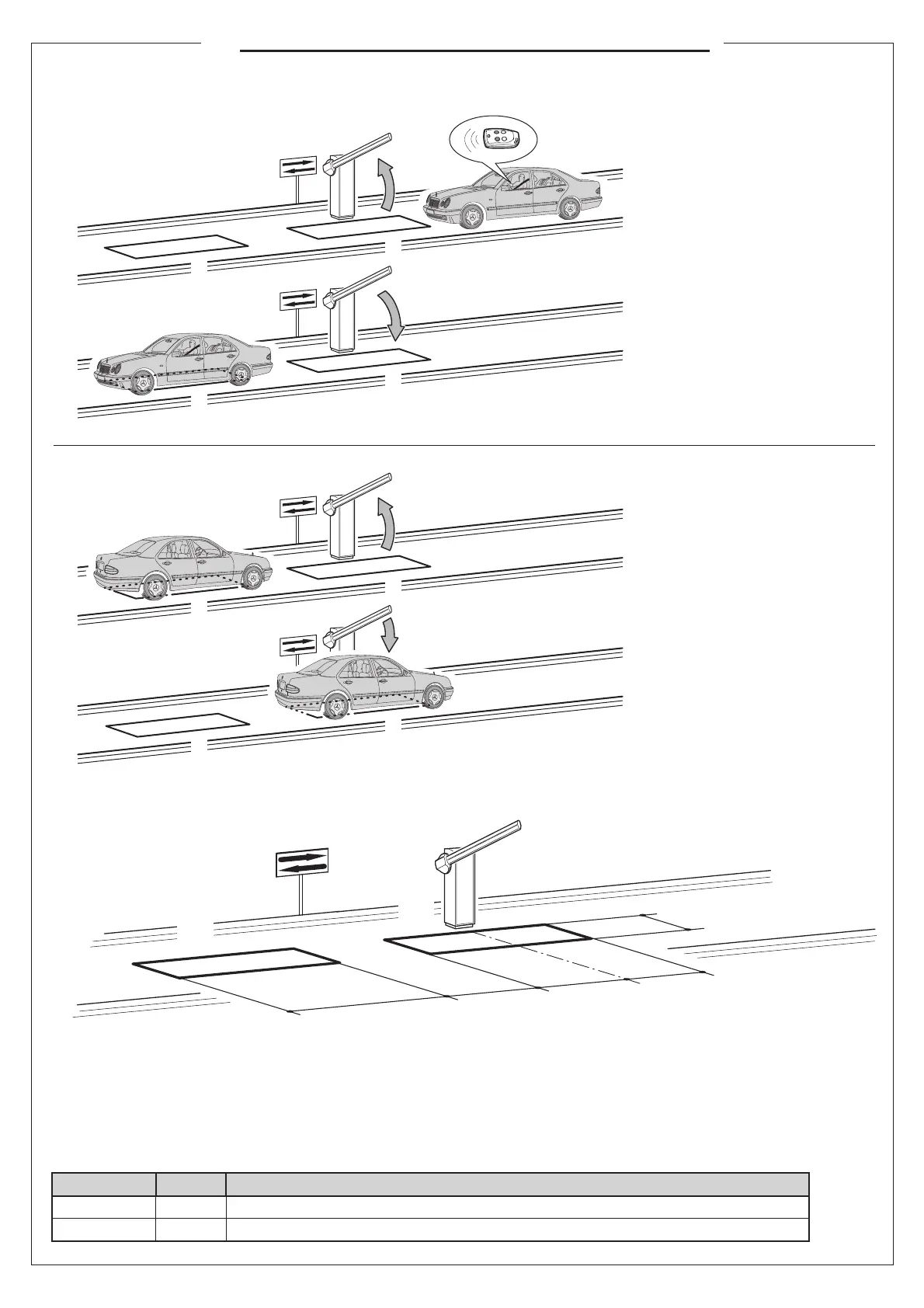

This solution is recommended when you want to enter a reserved area in both directions. To enter, transit is allowed by means of a
recognition command while exiting is automatic.
EXIT
When the coil S2 is cleared, the
barrier closes after an adjustable
time period.
The vehicle approaches the reser-
ved area.
When the coil S2 is occupied, barrier
opening is enabled.
If coil S2 is cleared without occupy-
ing coil S1 (vehicle occupies S2 and
then reverses), the barrier closes
again after the set pause time.
When coil S1 is cleared, the barrier
starts closing instantaneously.
DIMENSIONS
Coils S1 and S2 also perform a safety function by impeding barrier closure as long as they are occupied.
ENTRY
The recognition system enables
barrier opening.
If the coil S1 is not occupied within
the pause time, the barrier closes
again.
- Connect the coil S1 to the CLOSE input.
- Connect the N.O. contact of the S2 loop receiver to input OPEN.
- The dimensional values of the loops are only approximate.
We suggest installing the O&O “MAK-2” metal mass detector.
- Only use recognition systems other than remote control units (badge readers, video camera
systems with license plate recognition etc.) with a potential free output, which must be connected
to the OPEN input.
*
9. CONTROLLED ENTRY AND AUTOMATIC EXIT
S2
S1
PARAMETER DATA DESCRIPTION
  Automatic
  The close control closes when pressed and released, and also functions as a safety system.
