ODA OPS Series - Electronic Load; Current-Monitoring Resistor(Shunt); DVM(Digital Volt Meter); Programming

Electronic Load
▌Use electronic load which changes resitor from power supply's current calibration
▌Must be able to short Load with On/Off function.
▌Must be suitable with GPIB network, using pc calibration.
▌,gp
Current-Monitoring Resistor(shunt)
▌Use current monitoring resistor for general current measuring
▌gg g
▌Make less TCR 10ppm.
▌Use 0.01% standard resist.
DVM(Digital Volt Meter)
▌Used in Voltage Calibration & Current monitoring Sensing measurement.
▌
Use measuring instrument which dis
p
lays more than Resolution: 0.1 mV , Accuracy: 0.01
%
▌Use measuring instrument which displays more than Resolution 0.1 mV , Accuracy 0.01%
▌Must be suitable with GPIB network, using pc calibration.
Programming
This instrument supports PC Interface based Calibration.
Connect Power Su
pp
ly, DVM, Ammeter, Electric Load using GPIB, and there will be no error
and allow accurate calibration data.
GPIB Connection below :
GPIB
Connection
below
:

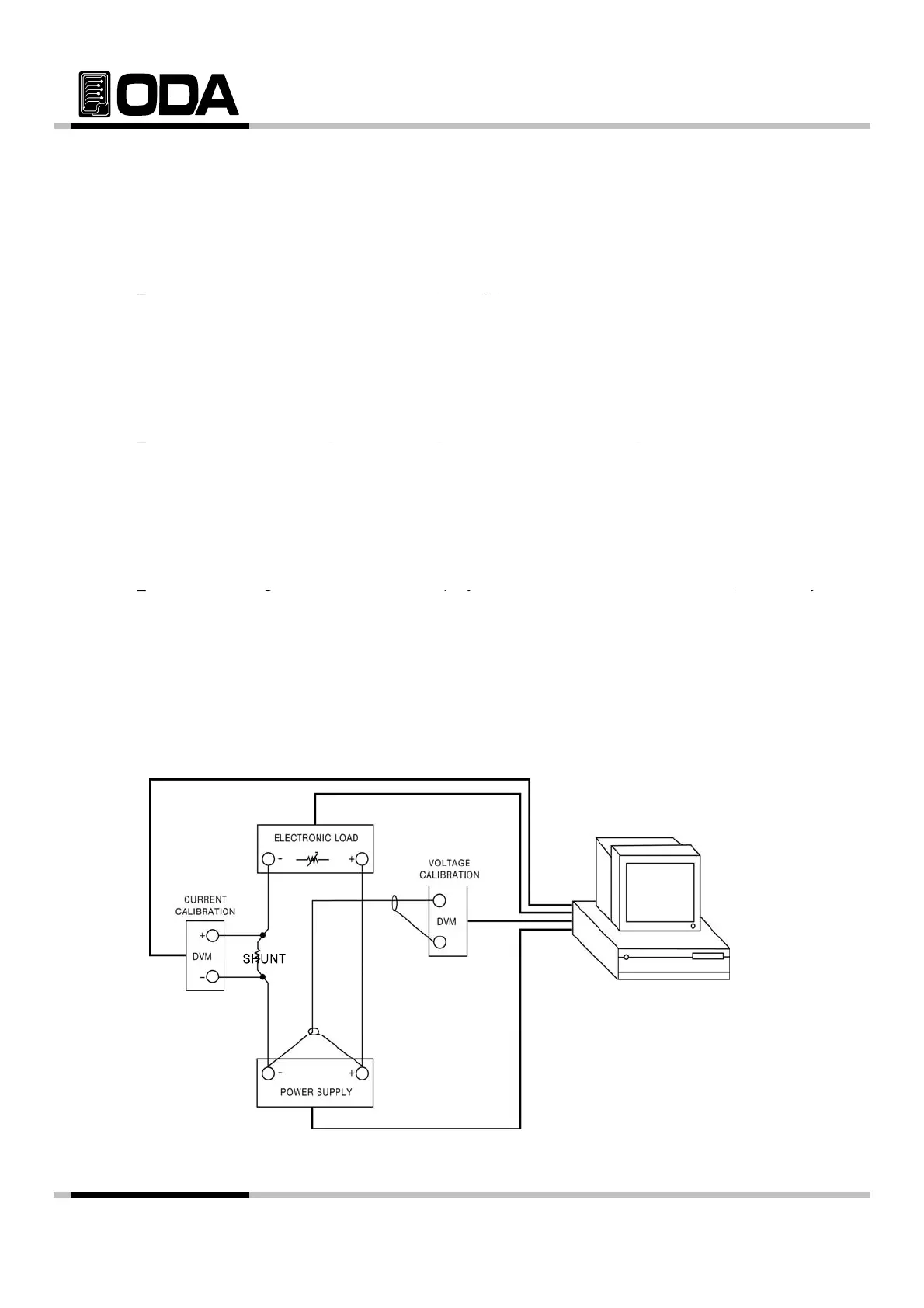

< Diagram 4-2 >
